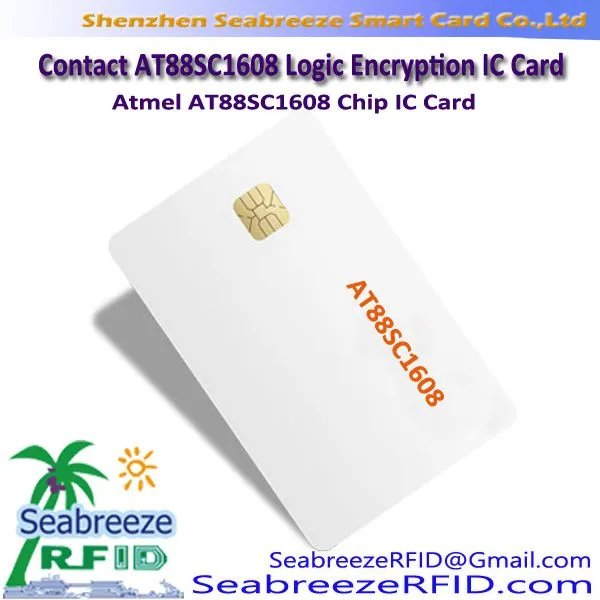

Contact AT88SC1608 Logic Encryption IC Card, Atmel AT88SC1608 Chip IC Card

Contact AT88SC1608 is a logic encryption chip with 8 application partitions.

Contact AT88SC1608 Logic Encryption IC Card, AT88SC1608 Logic Encryption IC Card, Atmel AT88SC1608 Contact Logic Encryption IC Card, AT88SC1608 Chip Logic Encryption IC Card, AT88SC1608 Chip Encryption IC Card, AT88SC1608 Chip IC Card, Atmel AT88SC1608 IC Card, Contact AT88SC1608 Logic Encryption Card, AT88SC1608 Logic Encryption Card

If AT88SC1604 has made some improvements on the basis of AT88SC1602 and AT24C16, then AT88SC1608 is a mature and stable leap of contact IC card, which can better reflect its advantages in multi-purpose card, and its security performance is strong. The read and write speed is fast and can be operated without first erasing.

The clock frequency of AT88SC1608 encryption card is 1MHz, and it supports page write mode (16 bytes/page).

In particular, the high security performance of the AT88SC1608 encryption card is outstanding. In addition to logical encryption, it also has high security authentication and anti-intercept tracking technology, 64-bit mutual authentication and authentication error counter, and error counts 8 times.

AT88SC1608 has 1 piece 128-byte setting area and 8 pieces 256-byte application partitions. The 8 areas can be combined freely. They are controlled by read passwords and write passwords (16 sets of passwords, 3 bytes each), and 8 error counts.

AT88SC1608 has a total of 17,408 bits (2176 bytes) of storage space, of which 16K bits (2K bytes) are the application area, and the last 1K bits (128 bytes) are the setting area.

Main technical parameters

Communication protocol: ISO/IEC 7816-3

Clock frequency: 1MHz

Access time: 10ms(maximum)/page

Working voltage: 2.7V~5.5V

Storage space: 17,408 bits(2176 bytes)

Write/erase: 100,000 times

Data storage: 100 years

Operating temperature: 0~+70°C

Card size: ISO standard card 85.6×54×0.86mm

Card material: PVC/ABS/PET/PETG/Polycarbonate

Weight: 7g

Aviable Crafts

Printing: Offset Printing, Silkscreen Printing, Thermal printing, Ink-jet printing, Digital printing.

Security features: Watermark, Laser ablation, Hologram/OVD, UV ink, Optical Variable ink, Hidden barcode/Barcode mask, Graded Rainbow, Micro-text.

Others: IC chip data initialization/Encryption, Variable Data, Personalized magnetic stripe programed, Signature panel, Barcode, Serial number, Embossing, DOD code, NBS convex code, Die-cut.
