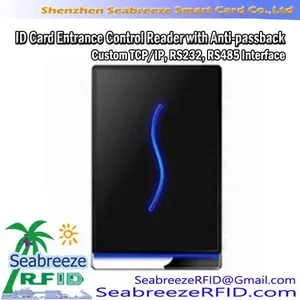

ID Card Entrance Control Reader with Anti-passback, Custom TCP/IP, RS232, RS485 Interface

ID Card Entrance Control Reader with Anti-passback, Custom TCP/IP, RS232, RS485 Interface

Customizable TCP/IP, RS232, RS485 Interface.

ID Card Entrance Control Reader with Anti-passback, ID Card Access Control Reader with Anti-passback, Access Control Reader with Anti-passback TCP/IP Interface, ID Card Access Control Reader with Anti-passback RS232 Interface, Access Control Reader with Anti-passback RS485 Interface, Access Control Reader with Anti-passback Wiegand Interface, Smart Card Entrance Control Reader with Anti-passback, Access Control Reader with anti-Trailing function, ID Card Access Control Reader with anti-Trailing function

Anti-passback is an advanced access control function, which requires 2 card readers to work together, one to control enter and one to control exit. When a person swipes the card to enter the door, there must swipes the card out the door, otherwise an alarm will be triggered. The anti-passback function is mainly used in important security institutions, such as military facilities, bank vaults, prisons and other places.

HSCR100 is an access control devices produced, Access control time attendance all-in-one machine, which is made with elegant design and professional surface treatment.

Device have lock control, alarm, exit button, door sensor.

Wiegand-in interface is used to connect external reader to construct master and slave system.

Also device can be used to connect with control panel as reader by wiegand-out interface.

Can be built-in Webserver, can through the network access query access records.

Operation can be done on PC software and upload to device through TCP/IP, RS232/485 communication.

Used for data download and upload, including user data and record.

Suitable for house, small office and factory.

Features

Elegant casing design

Easy installation, safe and reliable

Simple and convenient operation method

ID card standard, Mifare card optional

Full door lock control system

Wiegand out to connect with control panel

Wiegand in to construct master and slave system

Audio prompt and LED feedback guide user to operate

No screen, no button key, has the strong dustproof and waterproof function

Through the access control software registration to upload the user information

Typical applications

Access control

Building security access

Entrance management

Time attendance management

Technical parameters

ID card Capacity: 30,000

Transaction Capacity: 50,000

Communication: TCP/IP, RS232/485, USB-Host

Access Control Interface for: EM lock, Door sensor, Exit button, Alarm, Door Bell

Wiegand Signal: Output&Input

Standard Functions: Anti-passback, Webserver, 9 digital number

Optional Functions: Mifare, HID

Display: N/A

Power Supply: 12V DC

Operating Temperature: 0℃~+45℃

Operating Humidity: 20%-80%RH

Dimensions: 153×95.5×35.5mm

Gross weight: 0.8kg
