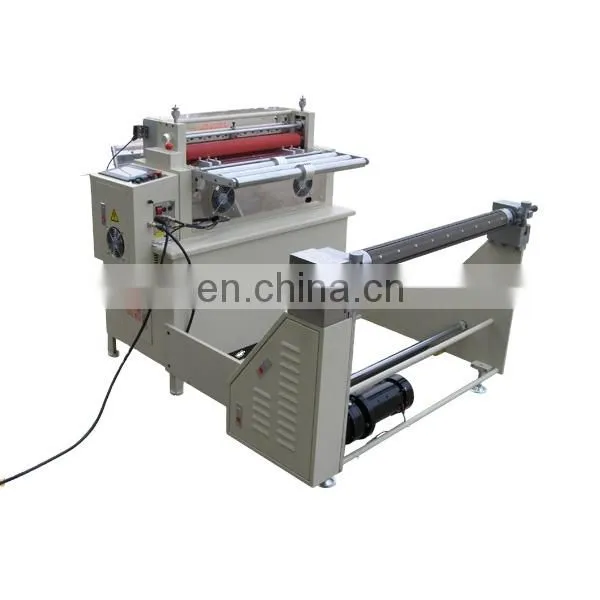

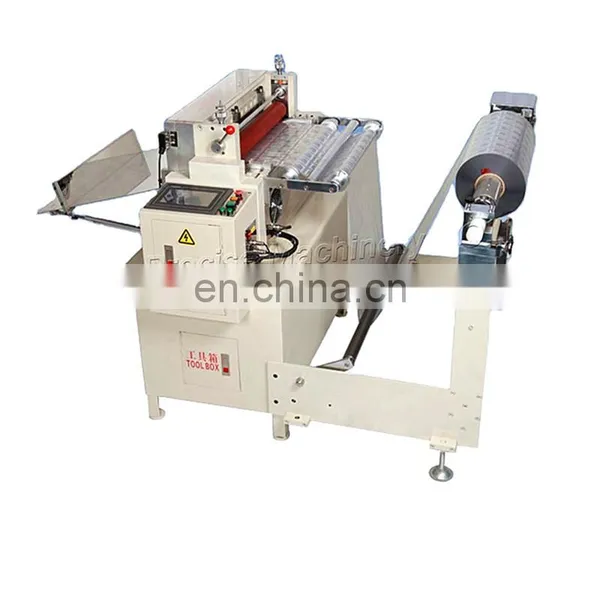

HX-550B window film cutting machine
Functions:
This machine employs servo motor to feed material, import PLC touch screen operation to set any length, quantity, speed and finish singleness cutting , equipped with automatic unwinding system and air shaft, which will be easy to load and unload.
Application:
Sizing Sheeting for aluminum foil, copper foil, PET, PC, PVC, PCB, FPC, Lithium battery film, flannelette, metal foil and all kinds of material in roll form.
Optional:
·static electricity eliminator · Conveyor belt
Main technical parameters:
|
Model |
HX-550B |
|
Voltage |
380V |
|
Power |
2HP |
|
N.W. |
320KG |
|
Sheeting Length |
0.1-9999.9mm |
|
Sheeting Width |
1-520mm |
|
Sheeting precision |
±0.05mm |
|
Sheeting speed |
125(cut/min) |
|
Machine size |
1800x1300x1200mm |
1. The max width: 550mm
2. Tolerence: 0.05mm, Precision: 0.1mm
3. Material thickness: 0.5mm-15mm
4. Kiss cut or cut through available
5. Under CE and ISO Certifications
6. Warranty for machine: 12months
7.Lead time: 10-15days
Characteristics( window film cutting machine ):
1. This machine adopts man-machine interface + PLC program device to set feeding material length, with lamination function
2. Sheeting and laminating can be finished at one time.
3. To save time and material, it is ergonomically designed which is easy to operate.
4. The sheeting length is accurate.
5. Operation is easy.
6. Waste rate is low.
After-service( window film cutting machine ):
1. Warranty for machines is 12 months
2. A promptly reply within 24 hours
3. Free usage training before delivering machines in factory
Here is the working vedio of HX-550B automatic cutting machine,please link.

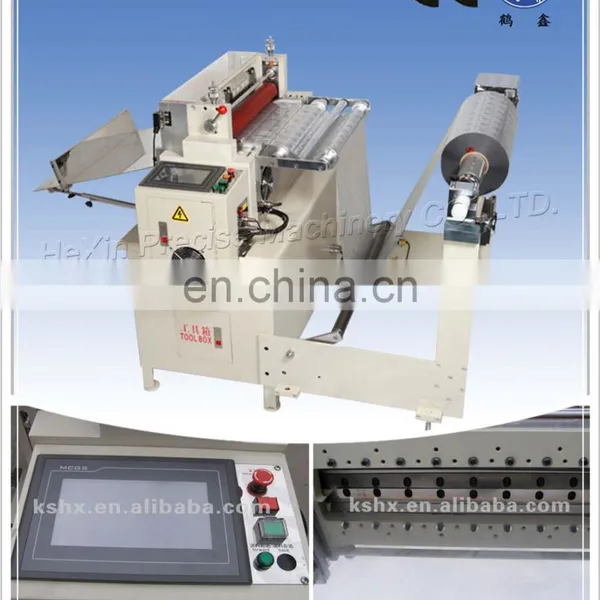

Details of HX-550B window film cutting machine

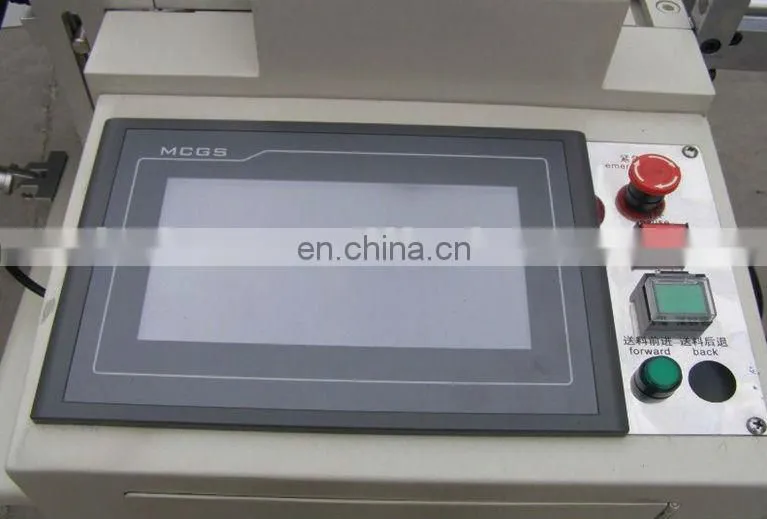

Control panel

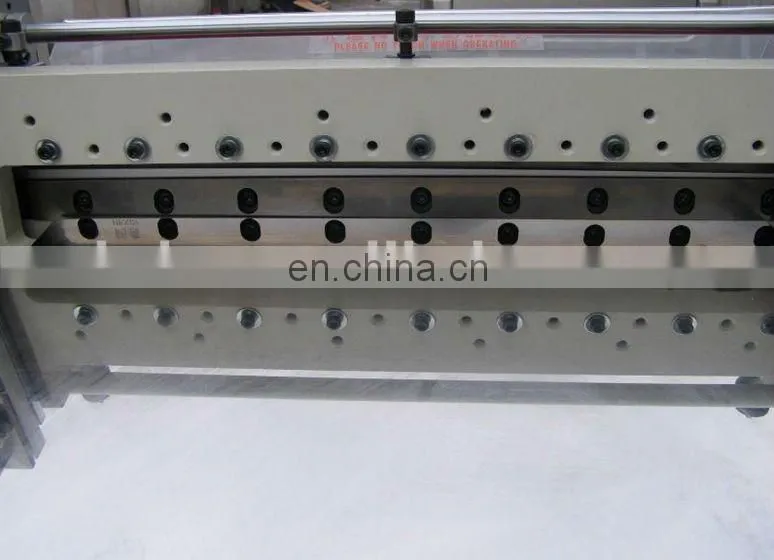

Cutting knife

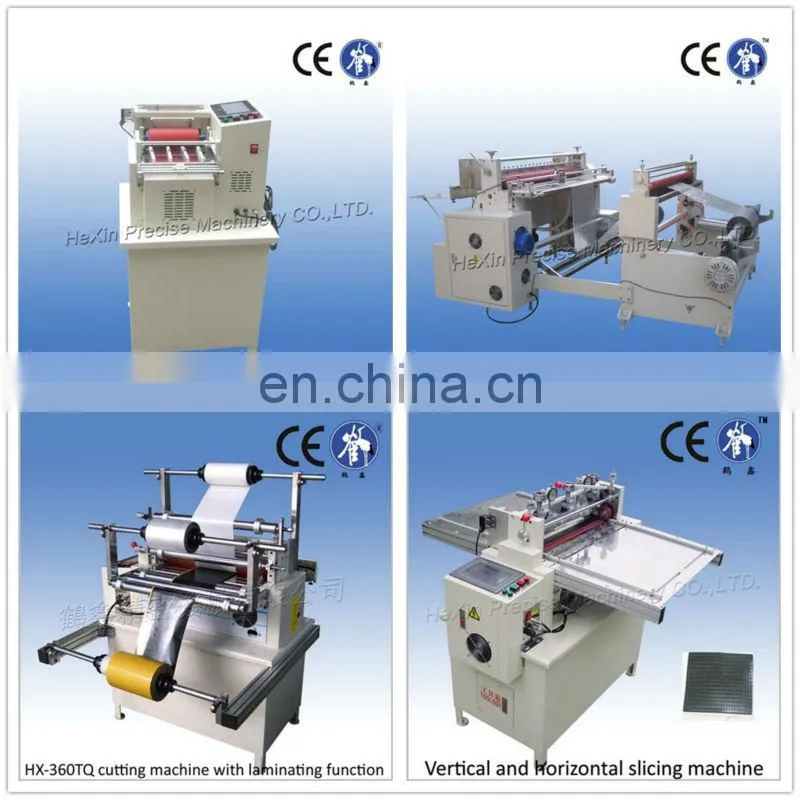

Relative more cutting machine,welcome to inquiry with e-mail
Packing Detail of HX-550B window film cutting machine
Trade Exhibition
