HX-160A nylon rope cutting machine (Hot Knife or Cold knife)
|
Model |
HX-160A |
|
Voltage |
220V |
|
Power |
750W |
|
N.W. |
90kg |
|
G.W. |
140kg |
|
Cutting Length |
0.1~9999.9mm |
|
Cutting precision |
±0.1mm |
|
Cutting speed |
80-90cut/min(take 50 mm for example) |
|
Cutting Width |
1~160mm |
|
Measurement |
550x550x1000mm |

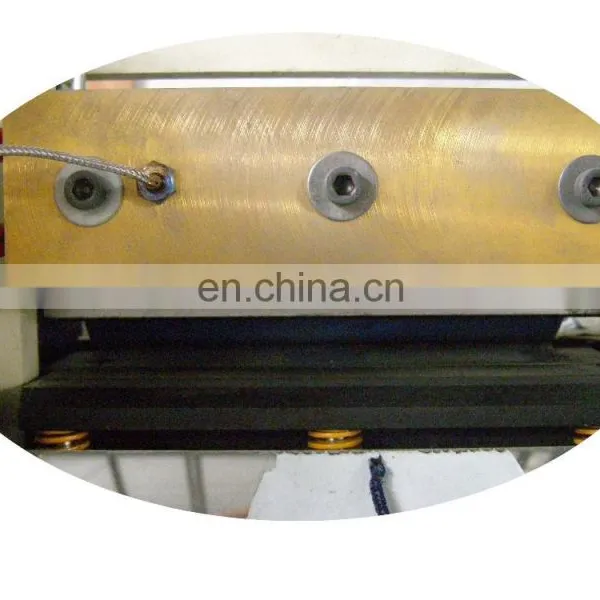

1.Hot knife cutter to seal the cutting edge and to prevent disintegration of the material(the cut edge can be
heated and solidified without burrs)
2. Computer controlled PLC system, full automatic .
3. Owing to the servo motor the cutting length is accurate,high precision can reach 0.1mm.
4.Automatic to preset length, quantity & speed on touch screen, it is not erased .even if power off & on.
5.Cutting length and cutting speed tunable
6.the cutting speed is 80~90 cut per minute. (take 50mm long for example).
7. It stops automatically if materials run out during operation.
8.Cut up to 160mm wide material or multiple rolls(Cutting 2-3 tapes roll at one time)
9.the cutting blades are made of high-speed steel(HSS)
10.Full English LCD display,easy operating.and you can check the operation manual brochure, we will sent together with the machine.
11.cutter safety guard included,no danger risk
12.adjustable pressure on feed roller for thin or smooth materials
13.the machine is including one unwinding material rack
Designed for cutting webbing,seat belt,ribbon tape,rope,PP belt,nylon belt and woven belt,etc.
1. Warranty for machines is 12 months
2. A promptly reply within 24 hours
3. Free usage training before delivering machines in factory
Linking below for the vedio:
/v_show/id_XMTk2NzU0NDI0.html

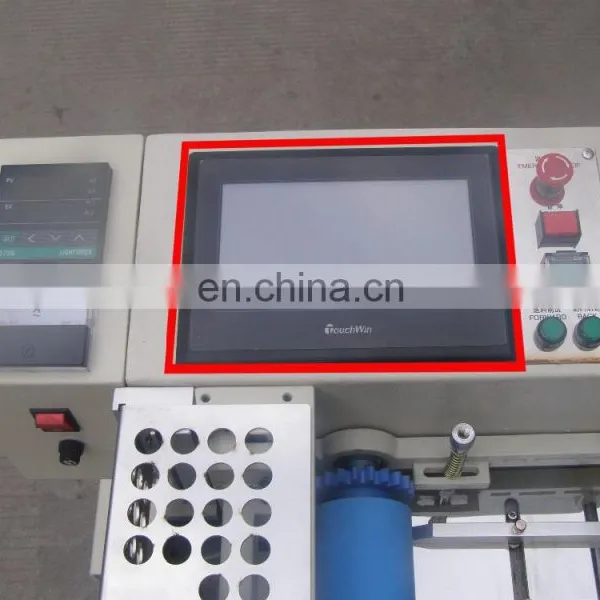

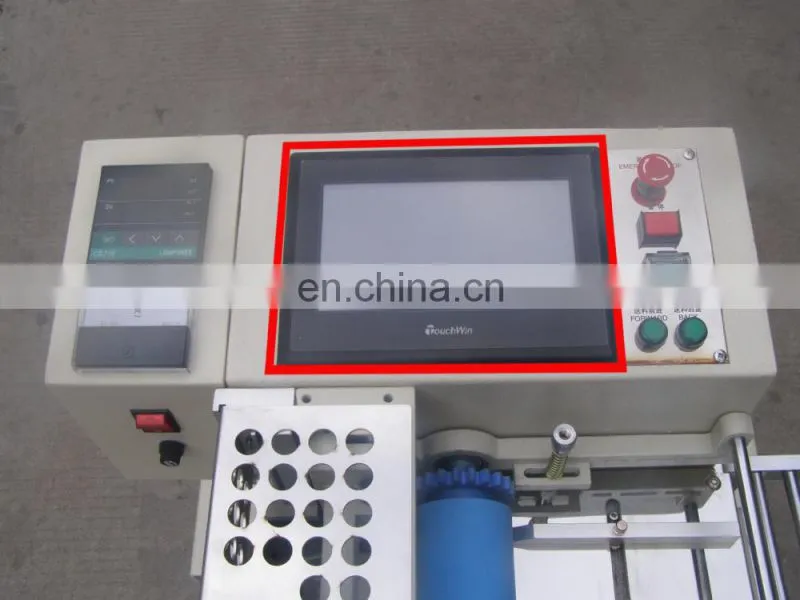

Touch Screen( nylon rope cutting machine )

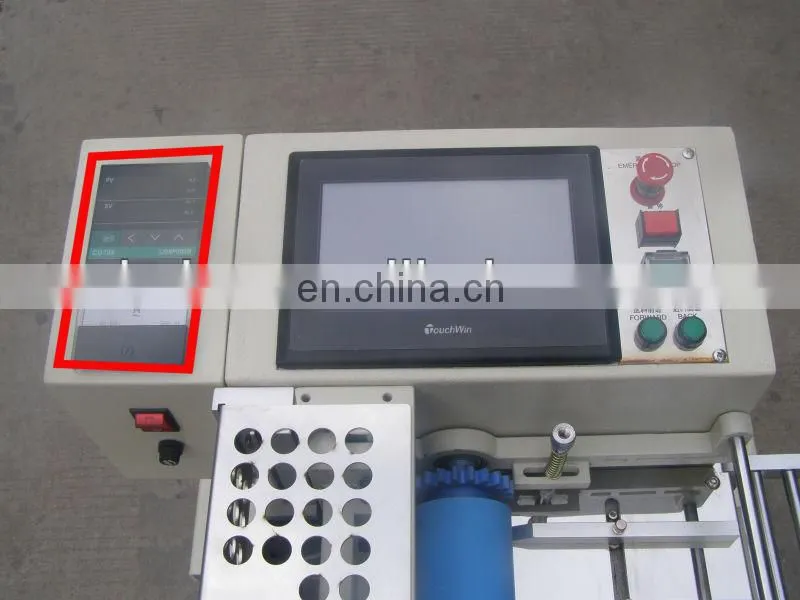

temperature control

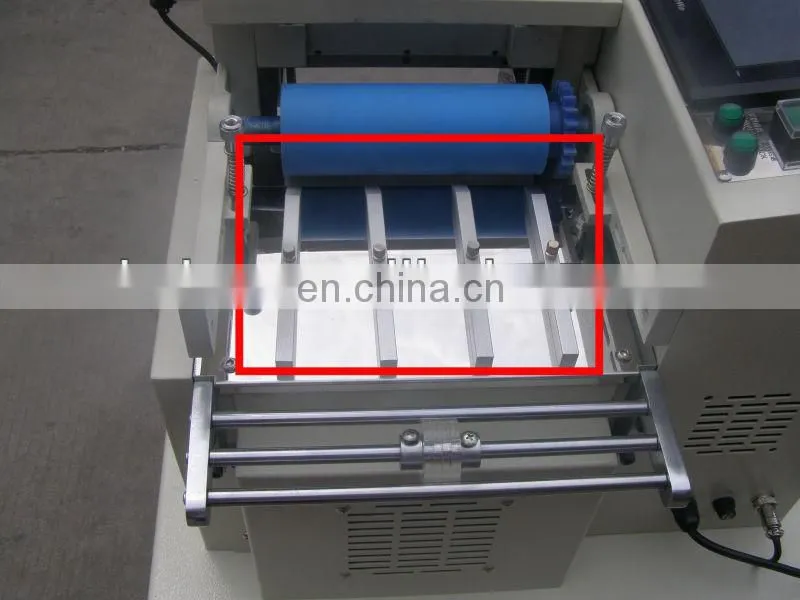

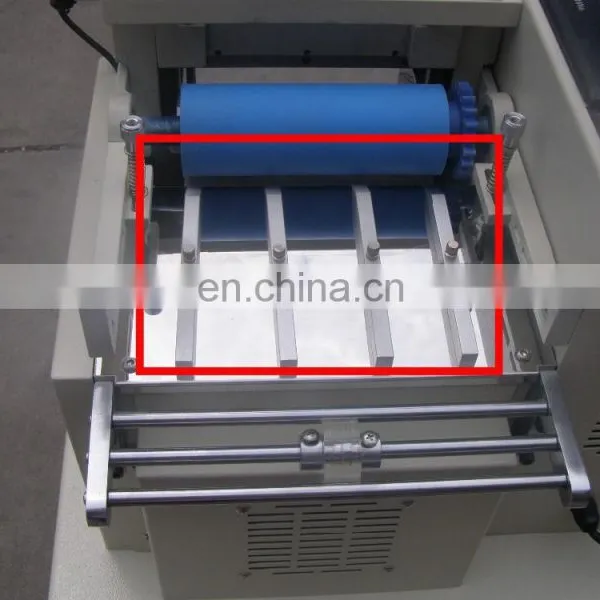

the position of feeding material ( nylon rope cutting machine )

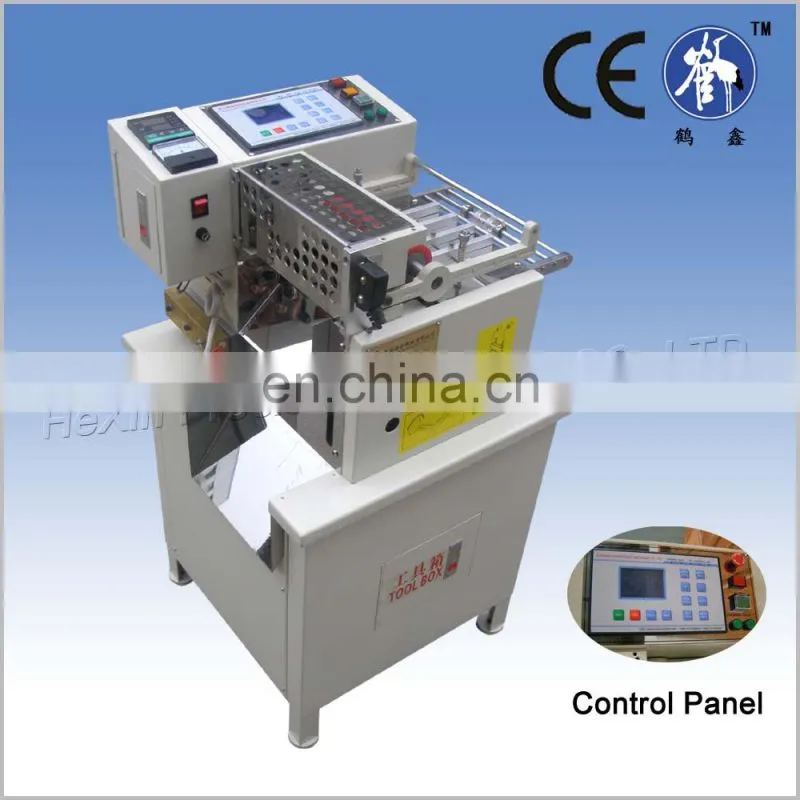

HX-160A nylon rope cutting machine
Related more cutting machine for you to compare and choose

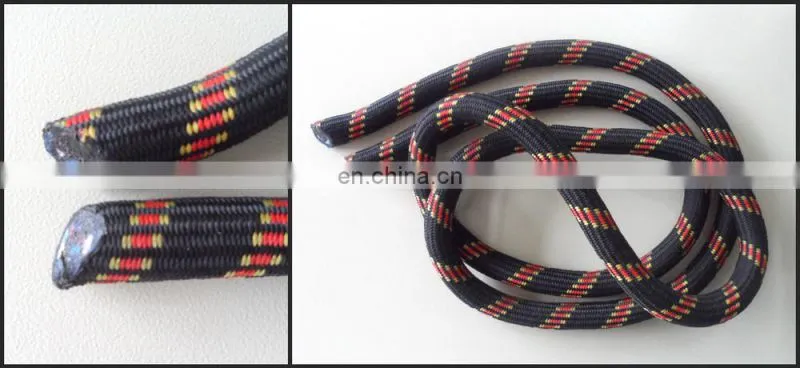

Samples show of cutting machine
CE Certificaitons:

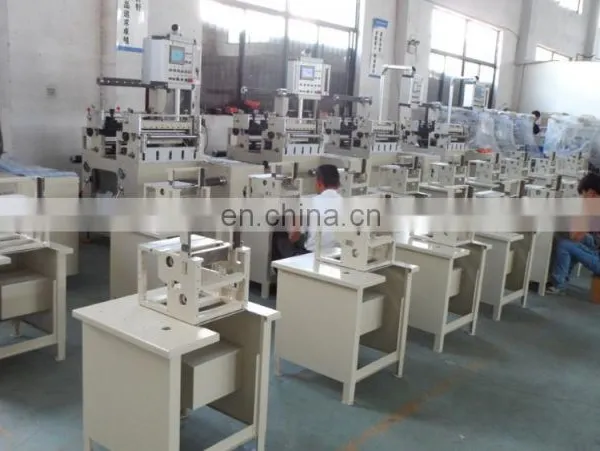

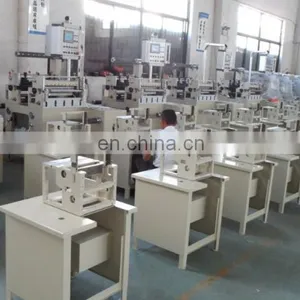

Our factory
Trade Exhibition
FAQ:
1. Q: Are you a factory or trading company?
A: We are a factory and manufacturer
2. Q: Where is your factory located in ? How can I visit there?
A: Our factory is located in Kunshan which is very near from Shanghai, and our detailed
address is: Factory 9, No. 157, Wulian Road, Yushan Town,Kunshan, Suzhou, Jiangsu,
China. If you fly to Shanghai hongqiao airport or Pudong airport, we can pick you up by carfrom there. We welcome all our clients, home and abroad, to visit us.
3. Q: what are your main products?
A: Our main products are belt cutting machines, slitting machines, sheeting machines,
laminating machines and rotary die cutting machines.
4. Q: Which industries can use your machines ?
A: All industries need to cut (include full cutting and kiss-cutting), slice, laminate, rotary die cut raw materials can use our machines.
5. Q: How to control the quality in your factory ?
A: Quality is priority. We control the quality of our products strictly, from the incoming
materials to the finished products. Our factory has obtained CE & ISO Certification
6. Q:If there are no machines available from your list, could we customize non-standard machines from you ?
A: Yes, we have our own professional design engineers, and can customize products
according to your requirement.
