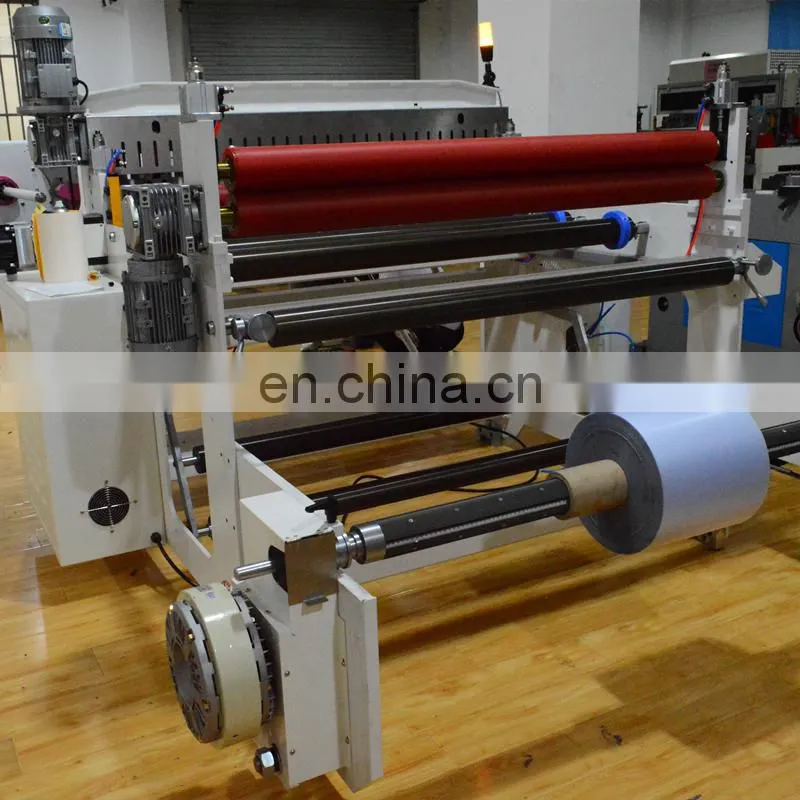

automatic jumbo roll paper cutting machines
- T/T Credit Card
You May Like
Product Description
automatic jumbo roll paper cutting machines
Functions jumbo roll paper cutting machines :
This machine employs servo motor to feed material, import PLC touch screen operation to set any length, quantity, speed and finish singleness cutting , equipped with automatic unwinding system and air shaft, which will be easy to load and unload.
Application jumbo roll paper cutting machines :
Sizing cutting for aluminum foil, copper foil, PET, PC, PVC, PCB, FPC, Lithium battery film, flannelette, metal foil and all kinds of material in roll form.
Optional jumbo roll paper cutting machines :
·static electricity eliminator
· Conveyor belt
· photoelectricity marking sensor
· suck device
Main technical parameters jumbo roll paper cutting machines :
Model |
HX-1250B |
Voltage |
380V |
Power |
4.4KW |
N.W. |
2200KG |
Cutting Length |
0.1-9999.9mm |
Cutting Width |
1-1250mm |
Cutting precision |
±0.05mm |
Cutting speed |
75(cut/min) |
Machine size |
1800x1150x1500mm |
Features jumbo roll paper cutting machines :
1. The max width: 1250mm
2. Tolerence: 0.05mm, Precision: 0.1mm
3. Material thickness: 0.5mm-15mm
4. Kiss cut or cut through available
5. Under CE and ISO Certifications
6. Warranty for machine: 12months
7. Delivery time: 1-3days
8. Hot cut or cold cut available
9. laminating functions are optional
Characteristics jumbo roll paper cutting machines :
1. This machine adopts man-machine interface + PLC program device to set feeding material length, with lamination function
2. Cutting and laminating can be finished at one time.
3. To save time and material, it is ergonomically designed which is easy to operate.
4. The cutting length is accurate.
5. Operation is easy.
6. Waste rate is low.
7. Manufacturing experience: 30 years
8. Export experience: 20 years
Our packing for jumbo roll paper cutting machines is plywood case
After-sale service
1. Warranty for machines is 12 months
2. A promptly reply within 24 hours
3. Free usage training in factory before delivering machines
4.If our machines can't well meet your requirment ,we support customized machine .
Brief Introduction
Kunshan Hexin precise machinery co. Ltd is located in Kunshan city, Jiangsu province, it’s only 40 minutes' away from Shanghai Hongqiao airport by car,
and 18 minutes' away from Shanghai railway station by high-speed rail. The
traffic is very convenient.
We are specialized in developing, manufacturing, marketing and exporting
microcomputer belt cutting machines, slitting machines, laminating machines, high precision die cutting machines. With strong
technology, international quality control system and perfect after sale service, our products enjoy a good reputation both at home and aboard market.
with Japanese advanced design drawing and manufacturing technology,
our machines have come up to the leading levels after continuous improvement for many years, especially in mechanical and electrical, gas and liquid fields. We own professional technical staffs, engineers, sales and after-service
employees who constitute a young and well-qualified team. Our belief is
"people-oriented, technology-first, integrity-centered and brand idea" and we will provide all our customers with reliable products, perfect service in order to create a brilliant future together.
Our products are widely applied in laminating, slitting and die cutting for
protective materials, sticky materials, insulating materials, conductive materials, electronic materials, printing materials and so on, and SE for strings, strips, sheets, ropes, lines, belts, rolls, plates ,tubes, fibre , rubber,
PET, PVC, PC, metal foils, etc. Our machines can process all kinds of sheet materials, roll materials and so on.
Our factory
workshop for jumbo roll paper cutting machines
The samples which use our machines to produce
Our products on Shanghai Expo
Customers Visiting our Factory
If you coming to visit our factory ,you will be warmly welcomed .
CE Certification
Our machines meet CE requirement . Conform to the safety, health, environmental protection and consumer protection, and a series of European directives to express requirements . For our products ,please rested assured .
Letter of Patent
Utility Model Patent Certificate .Thirty years of production experience ,we spent a great deal of time to research new products ,won a number of utility model patent certificates .Some of our product are world first .
1. Q: Are you a factory or trading company?
A: We are a factory and manufacturer
2. Q: Where is your factory located in ? How can I visit there?
A: Our factory is located in Kunshan which is very near from Shanghai, and
our detailed address is: Factory 9, No. 157, Wulian Road, Yushan Town,
Kunshan, Suzhou, Jiangsu, China. If you fly to Shanghai hongqiao airport
or Pudong airport, we can pick you up by car from there. We welcome all our clients, home and abroad, to visit us.
3. Q: what are your main products?
A: Our main products are belt cutting machines, slitting machines, sheeting
machines, laminating machines and rotary die cutting machines.
4.Q: Which industries can use your machines ?
A: All industries need to cut (include full cutting and kiss-cutting), slit,
laminate, rotary die cut raw materials can use our machines.
5.Q: How to control the quality in your factory ?
A: Quality is priority. We control the quality of our products strictly, from the
incoming materials to the finished products. Our factory has obtained
CE & ISO Certification
6. Q:If there are no machines available from your list, could we customize
non-standard machines from you ?
A: Yes, we have our own professional design engineers, and can customize
products according to your requirement.
