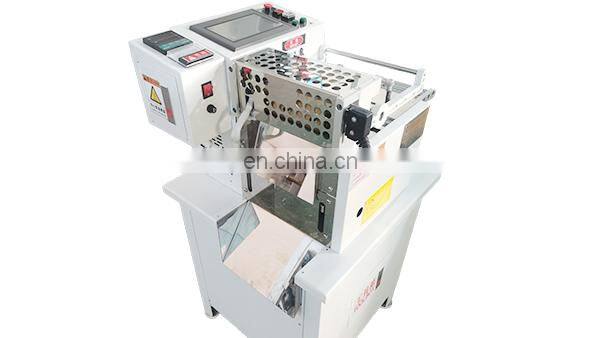

Automatic Hot Blade PP Webbing Cutter Machine
|
Model |
HX-160A |
|
Voltage |
220V |
|
Power |
750W |
|
N.W. |
90kg |
|
G.W. |
140kg |
|
Cutting Length |
0.1~9999.9mm |
|
Cutting precision |
±0.1mm |
|
Cutting speed |
100-120cut/min(take 50 mm for example) |
|
Cutting Width |
1~160mm |
|
Measurement |
550x550x1000mm |

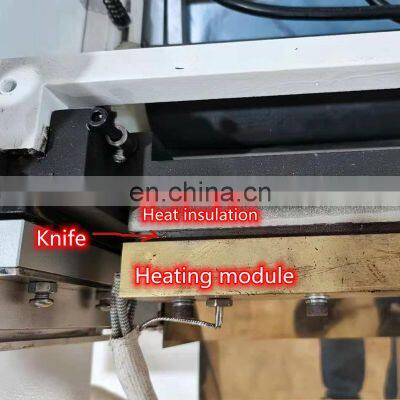

1.Hot knife cutter to seal the cutting edge and to prevent disintegration of the material(the cut edge
can be heated and solidified without burrs).
2. Computer controlled PLC system, full automatic .
3. Owing to the servo motor the cutting length is accurate,high precision can reach 0.1mm.
4.Automatic to preset length, quantity & speed on touch screen, it is not erased .even if power
off & on.
5.Cutting length and cutting speed tunable.
6.the cutting speed is 100~120 cut per minute. (take 50mm long for example).
7.Cut up to 160mm wide material or multiple rolls(Cutting 2-3 tapes roll at one time).
8.Full English LCD display,easy operating.and you can check the operation manual brochure, we
will sent together with the machine.
10.cutter safety guard included,no danger risk.
11.adjustable pressure on feed roller for thin or smooth materials.
12.this PP webbing cutter is including one unwinding material rack.
Designed for cutting webbing,seat belt,ribbon tape,rope,PP belt,nylon belt,ribbon and woven belt,etc.
According to the width of your webbing and cutting needs, we can recommend suitable webbing cutting machine.
HX-100 for Max 100mm width webbing

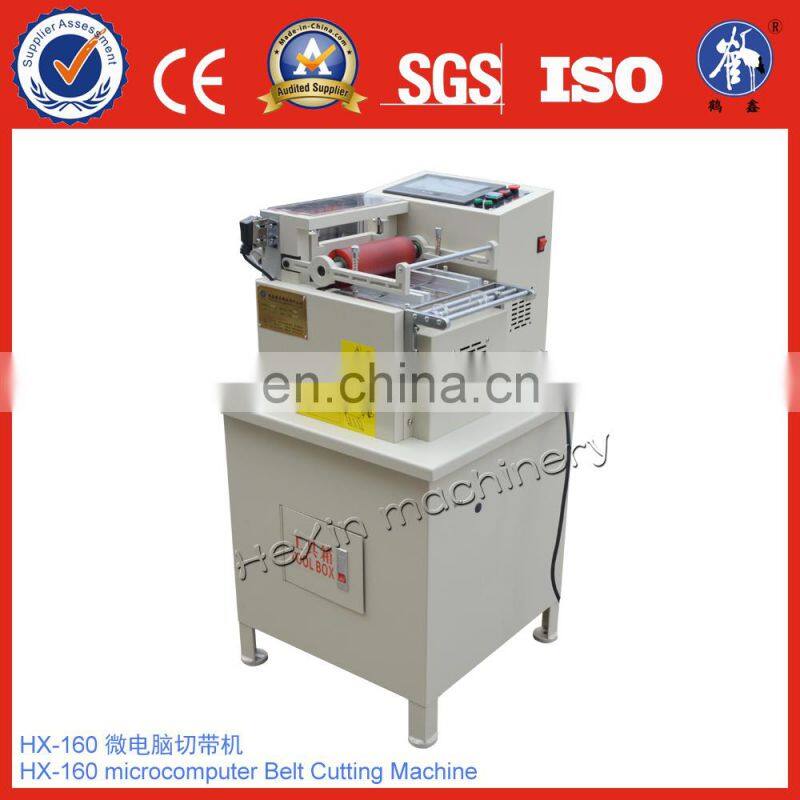

HX-160 for Max 160mm width webbing
HX-360 for Max 360mm width webbing
1. Warranty for machines is 12 months
2. A promptly reply within 24 hours
3. Free usage training before delivering machines in factory
PP webbing cutter :

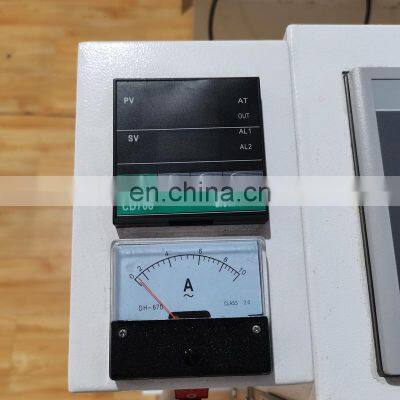

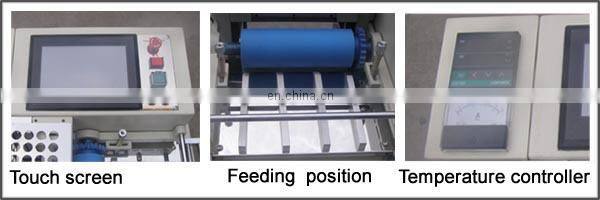

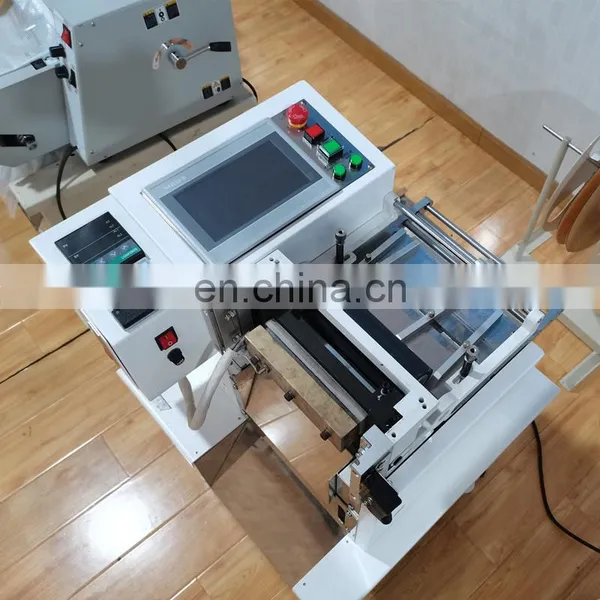

Details of this PP webbing cutter

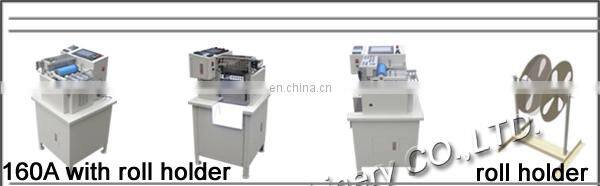

Automatic PP webbing cutter with roll holder
the cutting edge can be heated and solidified without burrs
CE Certificaitons:
Customer visit pictures
1. Q: Are you a factory or trading company?
A: We are a factory and manufacturer
2. Q: Where is your factory located in ? How can I visit there?
A: Our factory is located in Kunshan which is very near from Shanghai, and our detailed
address is: Factory 9, No. 157, Wulian Road, Yushan Town,Kunshan, Suzhou, Jiangsu.
3. Q: what are your main products?
A: Our main products are belt cutting machines, slitting machines, sheeting machines,
laminating machines and rotary die cutting machines.
4. Q: Which industries can use your machines ?
A: All industries need to cut (include full cutting and kiss-cutting), slice, laminate, rotary die cut raw materials can use our machines.
5. Q: How to control the quality in your factory ?
A: Quality is priority. We control the quality of our products strictly, from the incoming
materials to the finished products. Our factory has obtained CE & ISO Certification
6. Q:If there are no machines available from your list, could we customize non-standard machines from you ?
A: Yes, we have our own professional design engineers, and can customize products
according to your requirement.
