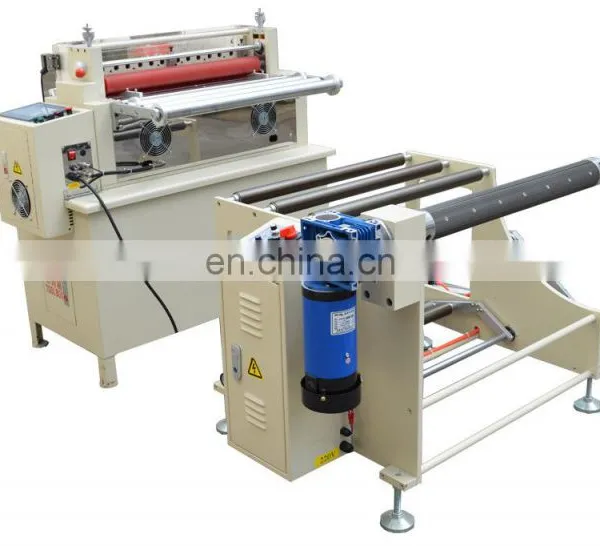

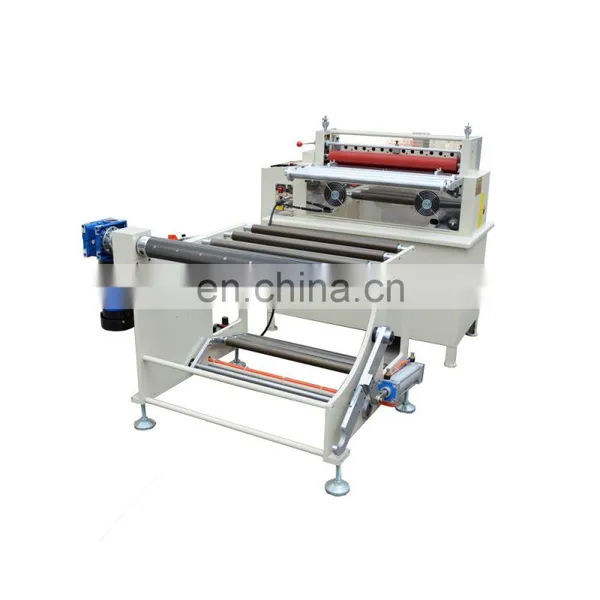

Automatic unwinding system fiberglass cutting machine
Video for this fiberglass cutting machine :
/v_show/id_XODQ2MjY0MzMy.html
|
Model |
HX-1000B |
|
Cutting Length |
0.1~9999.9mm |
|
Cutting Width |
1~1000mm |
|
Power |
2300W |
|
Voltage |
380V |
|
N.W. |
510kg |
|
Measurement |
1500x1800x1150mm |
1. Max material width: 1000mm;
2. Tolerance: 0.05mm, Precision:±0.05mm;
3. Material thickness range: 0.5mm-15mm;
4. Cutting speed:100 cut/min;
5. Both kiss-cut and complete cut are available;complete cut is for standard machine, and kiss-cut is an option;
6. This fiberglass cutting machine employs a PLC to preset length, speed, and quantity, and it will memorize them when it runs next time.
7. An air shaft as the loading shaft;
8. It has automatic unwinding function;
9. It adopts a servo motor to make sure accuracy;
10. Operation is easy with a touch screen and English version display;
11. Waste rate is low;
12. Manufacturing experience: 10 years;
13. Export experience: 5 years.
Options:
1. Static eliminator
2. Conveyor belt
3. A set of photoelectric eyes
4. Kiss cut knife
This fiberglass cutting machine is applied in size cutting for flannelette, metal foil, PET, PC, PVC, PCB, FPC, lithium battery film, and all kinds of material in roll form.
1. A warranty period of 12 months;
2. A prompt reply within 24 hours;
3. Free operation training before delivering.
Details of this fiberglass cutting machine
Touch Screen
Cutting Knife
Foreign Clients:
Packing:
1. Q: Are you a manufacturer or trading company?
A:We are a manufacturer.
2. Q: Where is your factory located in? How can I visit there?
A:Our factory is located in Building 9, No. 157, Wulian Road, Yushan Town, Kunshan, Suzhou City, Jiangsu Province, China (Mainland). You can fly to Shanghai airport directly. We warmly welcome all our clients from home and abroad to visit us!
3. Q: What are your main products ?
A: Our main products are slitting machines, sheeting machines, laminating machines and Die cutting machines.
4. Q: Which industries are your machines widely used in ?
A: All industries need to cut (include full cutting and kiss-cutting), slice, laminate, rotary die cut raw materials can use our machines.
5. Q: How does your factory do regarding quality control?
A: Quality is priority. We control the quality of our products strictly, from the incoming materials to the finished products. Our factory has obtained CE & ISO Certification.
