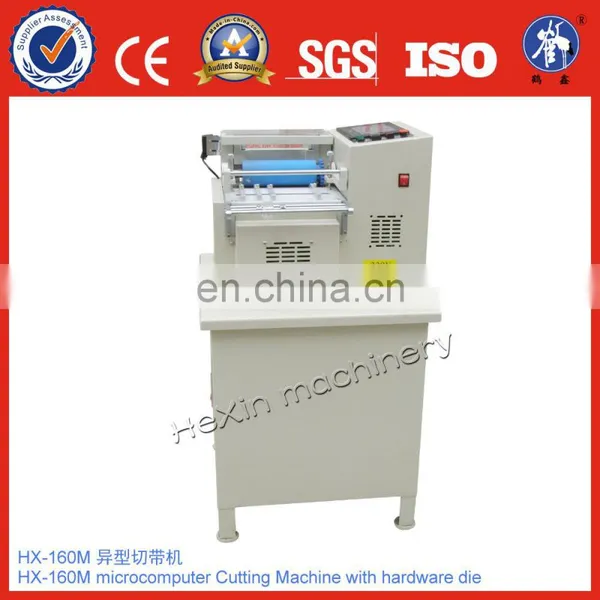

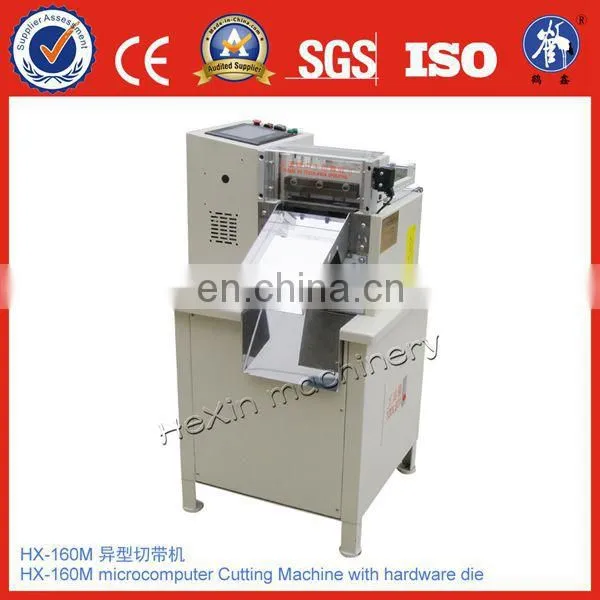

Multifunctional zig zag cutting machine
|
Model |
HX-160M |
|
Voltage |
220V |
|
Power |
375W |
|
N.W. |
88kg |
|
GW. |
138kg |
|
Cutting Length |
0.1-9999.9mm |
|
Cutting Width |
1~160mm |
|
Dimension |
550x550x1000mm |
1. Max material width: 160mm;
2. Tolerance: 0.05mm, Precision: 0.1mm;
3. Material thickness range: 0.5mm-15mm;
4. This zig zag cutting machine has been added a hardware die to form various kerf, and scrap come off automatically;
5. This zig zag cutting machine is equipped with a microcomputer to set cutting length;
6. Both cut-through and kiss-cut are available, and kiss-cut is an option.
7. It can preset length, speed and quantity, and will memorize them when it runs next time;
8. It a servo motor to make sure accuracy;
9. It can cut several strips in the same time;
10. The pressure of feeding roller can be adjusted;
11. Operation is easy with a set of touch screen;
12. Waste rate is low;
13. Holding CE and ISO Certifications;
14. Manufacturing experience: 10 years
15. Export experience: 5 years
Size cutting for hook and loop fastener, cotton belt, elastic, plastic belt, zipper, sleeve, paper, flat cable, small wire, metal film, etc.
1. A warranty period of 12 months;
2. A prompt reply within 24 hours;
3. Free operation training in our factory before delivering.
Details of this zig zag cutting machine :
Cutting Knife(customize for you) Microcomputer
Protective Cover Feeding Roller
Packing:

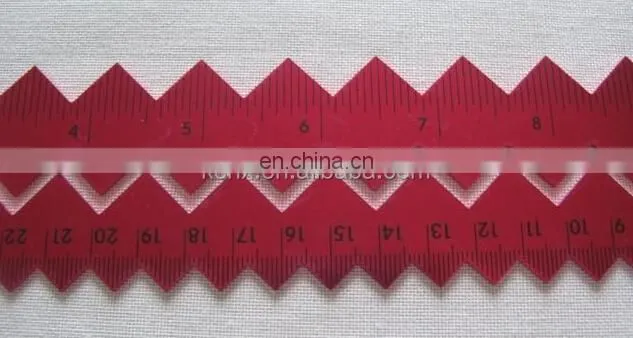

Partial simples from this zig zag cutting machine:
1. Q: Are you a manufacturer or trading company?
A:We are a manufacturer.
2. Q: Where is your factory located in? How can I visit there?
A:Our factory is located in Building 9, No. 157, Wulian Road, Yushan Town, Kunshan, Suzhou City, Jiangsu Province, China (Mainland). You can fly to Shanghai airport directly. We warmly welcome all our clients from home and abroad to visit us!
3. Q: What are your main products ?
A: Our main products are slitting machines, sheeting machines, laminating machines and Die cutting machines.
4. Q: Which industries are your machines widely used in ?
A: All industries need to cut (include full cutting and kiss-cutting), slice, laminate, rotary die cut raw materials can use our machines.
5. Q: How does your factory do regarding quality control?
A: Quality is priority. We control the quality of our products strictly, from the incoming materials to the finished products. Our factory has obtained CE & ISO Certification.
