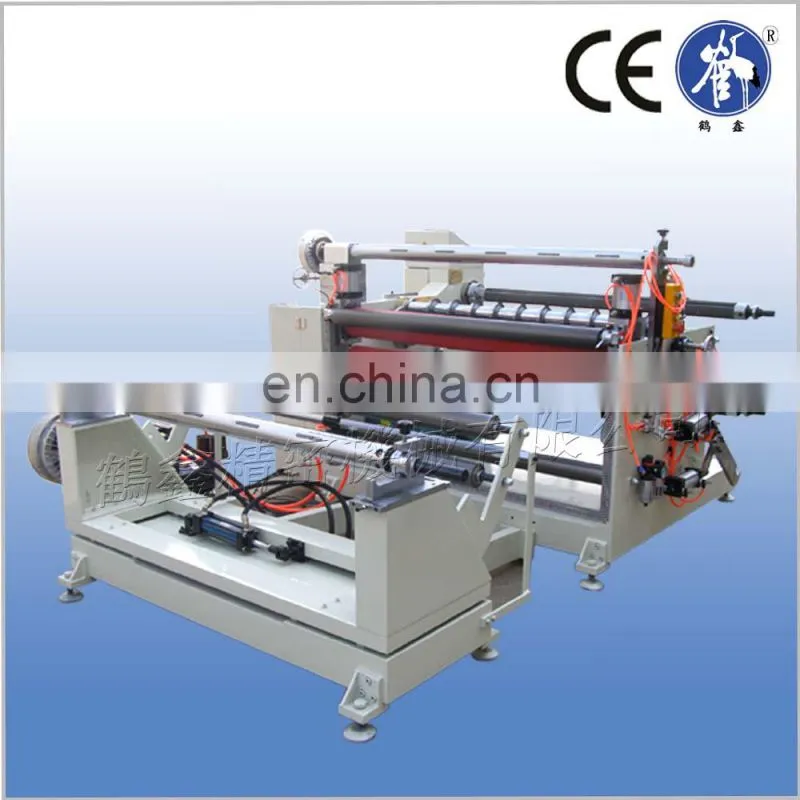

HX-1300FQ copper foil slitter and rewinder
Main Technical Parameter (copper foil slitter and rewinder):
|
Model |
HX-1300fq |
HX-1600fq |
|
Max feeding Width |
1300mm |
1600mm |
|
Main Engineer Power |
6kw |
6kw |
|
Speed |
80m/min |
80m/min |
|
Size |
2400*2000*1300mm |
2400*2300*1600mm |
|
Weight |
1200kg |
1500kg |
|
Unwinding Diameter |
600mm |
800mm |
|
Winding Diameter |
450mm |
450mm |
|
Precision |
±0.1mm |
±0.1mm |
|
Power |
380v 50hz |
380v 50hz |
Features (copper foil slitter and rewinder):
1. The max width: 1300mm
2. The minimum slitting width: 8-25mm
3. Material thickness range: 0.05-3mm
4. Tolerence: 0.2mm, Precision: 0.1mm
5. The speed: 80m/min
6. Under CE and ISO
7. Manufacturer experience: 30years
8. Export experience: 20years
Charatertistics and Functions (copper foil slitter and rewinder):
1. This copper foil slitter and rewinder is slitting equipment of high precision and high sensitivity, with inflatable bearing used for feeding and receiving materials.
2. Imported magnetic powder clutch is adopted to control the tension.
3. Imported gas sensitive device is adopted to detect the rectification of rolling, with fully automatic hydraulic rectification control.
4. Automatic detection, rectification and metering can be realized.
5. It is characterized be accurate slitting, fast slitting speed, ease of operation and maintain
Purpose (copper foil slitter and rewinder):
1. It is applicable for the slitting tooling of industrial adhesive tape, electronic material, protective film, copper foil, aluminum foil, OPP, PE, PVC, sheet, cloth, etc.
2. This machine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.
After-service (copper foil slitter and rewinder):
1. Warranty for machine: 12months
2. After-service: A reply within 24 hours
3. A free training in our factory available before delivering machines.
Relative copper foil slitter and rewinder, cutting machine, die cutting machine ETC.
HX-1300FQ copper foil slitter and rewinder
The exhibition (copper foil slitter and rewinder)
Packing detail (copper foil slitter and rewinder)
Our USP (Unique selling point):
Our factory is specializing in manufacturing and exporting cutting machines, slitting machines, laminating machines and die cutting machines with high quality and pretty competitive price. FREE SAMPLE training and testing will be available before shipping for your evaluation!
1) Own factory and professional manufacturer
2) Reasonable price
3) Implement strict quality testing and control procedure to make superior quality
4) Years of export experience
5) Customized color and logo are acceptable
6) Best service and punctual delivery
