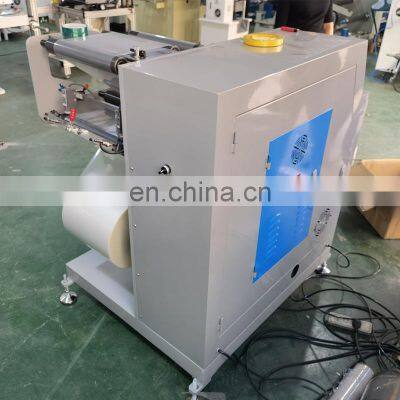

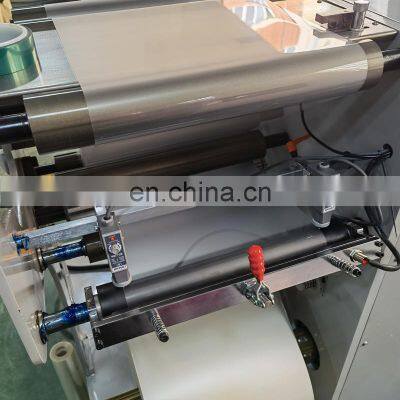

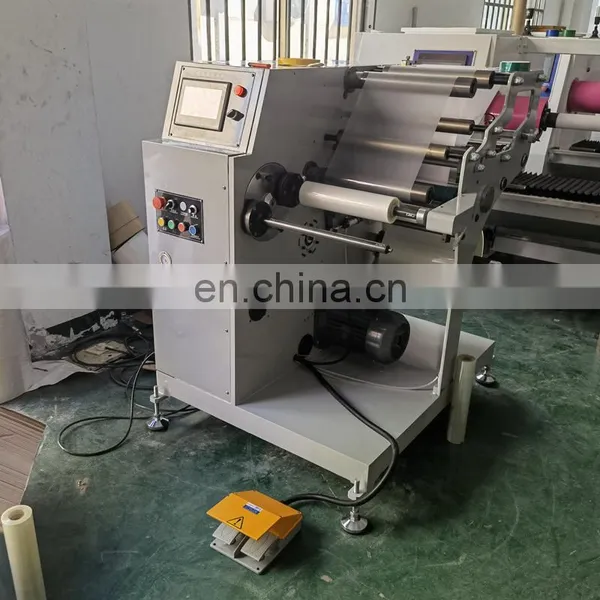

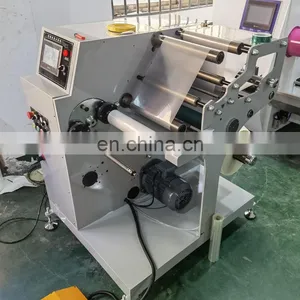

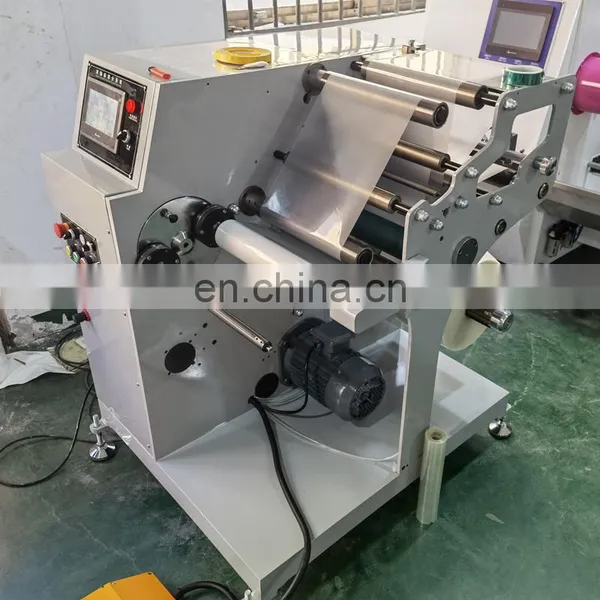

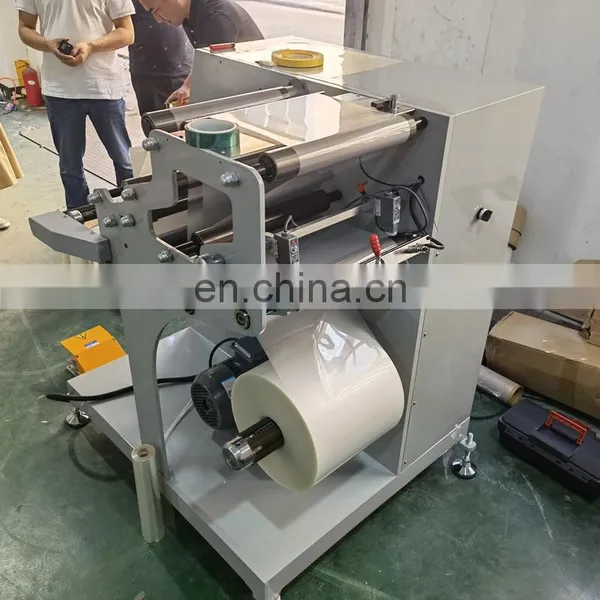

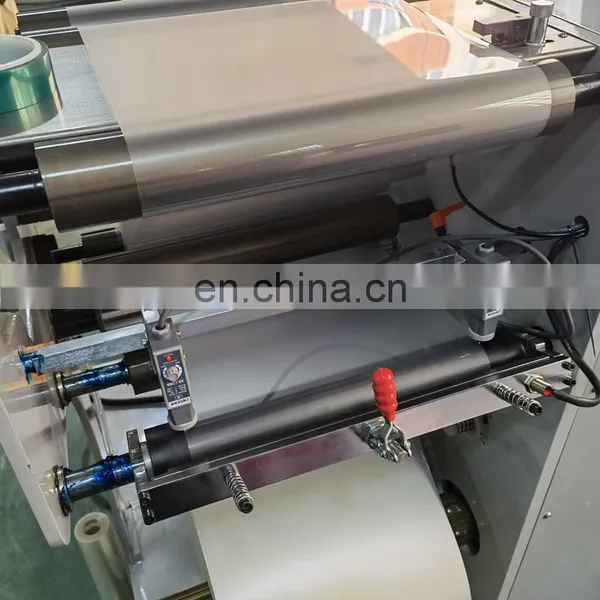

Small Cheap Aluminium Foil Household Foil PE Cling Film Roll Rewinding Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
1991
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Small Cheap Two Shafts Aluminium Foil Household Foil PE Cling Film Roll Rewinding MachineNegotiableMOQ: 1 -
China Factory Made BOPP Tape Cutting Slitting MachineNegotiableMOQ: 1
-
China Factory Made BOPP Adhesive Packing Tape Jumbo Roll Slitting Rewinding Slitter MachineNegotiableMOQ: 1
-
Automatic Tape Film Paper Roll Slitting Cutting MachineNegotiableMOQ: 1
-
Multi-function Aluminum Foil Kitchen Food Stretch Film Plastic Wrap Rewinding MachineNegotiableMOQ: 1
Product Description
Hot sale aluminium foil household foil pvc pe cling film roll rewindning machineis multi-purpose model for rewinding both
aluminium house foil roll and cling film roll.
It is adopted surface rewinding method,it can rewind for small length for consumer roll,and large length 300meters(or more) for catering roll.
The machine is control by PLC programmer unit for very user friendly.
It is very high speed,by automatic start rewinding,when the gluing is done by manually,all step will be automatic fulfill,include automatic stop when reach length set,automatic exchange to the shaft.automatic cut off the finished roll.
aluminium house foil roll and cling film roll.
It is adopted surface rewinding method,it can rewind for small length for consumer roll,and large length 300meters(or more) for catering roll.
The machine is control by PLC programmer unit for very user friendly.
It is very high speed,by automatic start rewinding,when the gluing is done by manually,all step will be automatic fulfill,include automatic stop when reach length set,automatic exchange to the shaft.automatic cut off the finished roll.
1: This machine should be in good ground condition. Otherwise it will be possible for the safety of personnel and equipment damage;
2: Non-professionals, do not open the electronic control box, or conduct other operations. The maintenance will be
performed by qualified personnel; Note: The machine uses 380/50Hz phase four-wire power supply (or customized voltage).
performed by qualified personnel; Note: The machine uses 380/50Hz phase four-wire power supply (or customized voltage).
Model and specifications
1, Model: HX-320f
2, Specifications Rewinding width 500MM Parent roll diameter (MAX) 600MM for aluminum foil and
400MM for cling film Finished roll diameter (MAX) 120MM The maximum mechanical line speed 120M/MIN
400MM for cling film Finished roll diameter (MAX) 120MM The maximum mechanical line speed 120M/MIN
3, Unwinding
Type: Manual, Core: 3"
4, Rewinding Type: Friction, Core: customization
5, Correction: Jog
6, Motor Power: Rewinding: 2.2KW; Flip: 0.37KW
7, Air Compressor: 0.4—0.6Mpa
Installation steps
Install the parent roll, pump up the air with an inflator, and fix the parent roll in a proper position
Electrical drawing
Feature
Item |
Quantity |
Rewinding width |
500MM |
Parent roll diameter (MAX) |
600MM or aluminum foil and 400MM for cling film |
Finished roll diameter (MAX) |
120MM |
The maximum mechanical line speed |
120M/MIN |
Unwinding |
Type: Manual, Core: 3" |
Rewinding |
Type: Friction, Core: customization |
Correction |
Jog |
Motor Power: |
Rewinding: 2.2KW; Flip: 0.37KW |
Characteristics
1 |
This machine employs microcomputer controller to set belt cutting length. |
||||||
2 |
The cutting length is accurate. |
||||||
3 |
Operation is easy. |
||||||
4 |
Waste rate is low. |
||||||
5 |
Manufacturing experience: 30 years |
||||||
6 |
Export experience: 20 years |
||||||
