Two Shafts Aluminium Foil Household Foil PVC PE Cling Film Roll Rewinding Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
1991
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Flexible Packaging Material PVC Advanced Label Paper Slitting MachineNegotiableMOQ: 1 -
Factory Custom In Addition to Static Oil Heating Slitting Laminating MachineNegotiableMOQ: 1
-
Factory Custom 650mm Oil Heating Slitting Laminating MachineNegotiableMOQ: 1
-
Computerized Thermal POS Receipt Paper Roll Slitting MachineNegotiableMOQ: 1
-
Offset Paper Self Adhesive Paper Rotary Die-cutting MachineNegotiableMOQ: 1
Product Description
Hot sale aluminium foil household foil pvc pe cling film roll rewindning machineis multi-purpose model for rewinding both
aluminium house foil roll and cling film roll.
It is adopted surface rewinding method,it can rewind for small length for consumer roll,and large length 300meters(or more) for catering roll.
The machine is control by PLC programmer unit for very user friendly.
It is very high speed,by automatic start rewinding,when the gluing is done by manually,all step will be automatic fulfill,include automatic stop when reach length set,automatic exchange to the shaft.automatic cut off the finished roll.
aluminium house foil roll and cling film roll.
It is adopted surface rewinding method,it can rewind for small length for consumer roll,and large length 300meters(or more) for catering roll.
The machine is control by PLC programmer unit for very user friendly.
It is very high speed,by automatic start rewinding,when the gluing is done by manually,all step will be automatic fulfill,include automatic stop when reach length set,automatic exchange to the shaft.automatic cut off the finished roll.
1: This machine should be in good ground condition. Otherwise it will be possible for the safety of personnel and equipment damage;
2: Non-professionals, do not open the electronic control box, or conduct other operations. The maintenance will be
performed by qualified personnel; Note: The machine uses 380/50Hz phase four-wire power supply (or customized voltage).
performed by qualified personnel; Note: The machine uses 380/50Hz phase four-wire power supply (or customized voltage).
Model and specifications
1, Model: HX-500L-2
2, Specifications Rewinding width 500MM Parent roll diameter (MAX) 600MM for aluminum foil and
400MM for cling film Finished roll diameter (MAX) 120MM The maximum mechanical line speed 300M/MIN
400MM for cling film Finished roll diameter (MAX) 120MM The maximum mechanical line speed 300M/MIN
3, Unwinding
Type: Manual, Core: 3"
4, Rewinding Type: Friction, Core: customization
5, Correction: Jog
6, Motor Power: Rewinding: 2.2KW; Flip: 0.37KW
7, Air Compressor: 0.4—0.6Mpa
Installation steps

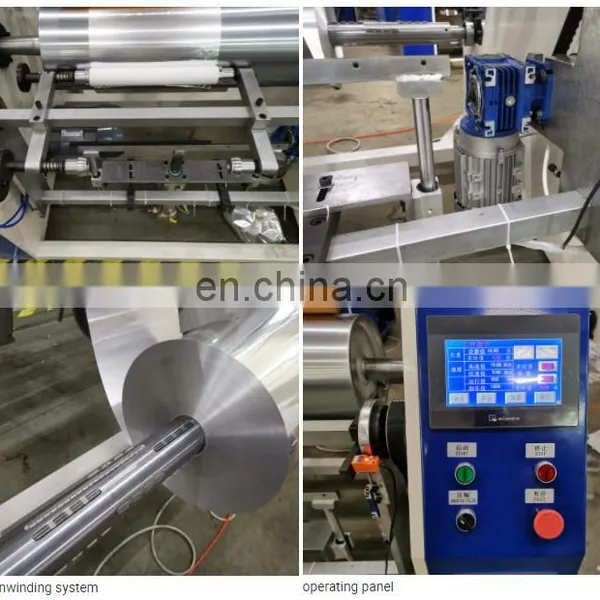

Install the parent roll, pump up the air with an inflator, and fix the parent roll in a proper position
Adjust the air pressure The general air pressure adjust to 0.4-05Mpa
Pull the red hand valve (#5 Roller pressure hand valve) outward and lift the pressure roller. The aluminum foil is pulled directly to the front. Then pull back the red hand valve.
When the left and right chucks are close to the roller, make sure that they are all aligned. If one side is not against the
roller, please adjust the screw at the bottom of the arm
roller, please adjust the screw at the bottom of the arm
Step on the foot switch with your foot, move the chuck to the left, and release the foot switch after inserting the paper core
Electrical drawing
Feature
Item |
Quantity |
Rewinding width |
500MM |
Parent roll diameter (MAX) |
600MM or aluminum foil and 400MM for cling film |
Finished roll diameter (MAX) |
120MM |
The maximum mechanical line speed |
300M/MIN |
Unwinding |
Type: Manual, Core: 3" |
Rewinding |
Type: Friction, Core: customization |
Correction |
Jog |
Motor Power: |
Rewinding: 2.2KW; Flip: 0.37KW |
Characteristics
1 |
This machine employs microcomputer controller to set belt cutting length. |
||||||
2 |
The cutting length is accurate. |
||||||
3 |
Operation is easy. |
||||||
4 |
Waste rate is low. |
||||||
5 |
Manufacturing experience: 30 years |
||||||
6 |
Export experience: 20 years |
||||||
Related Products
Packing&Shipping
Company Introduction
;We are a team of industry professionals with strong backgrounds in cutting, die cutting,
slitting, laminating and rolling. Other related machines in our fields can be customized based on your specific requirements.
Kunshan Hexin Precise Machinery is located in Kunshan city,Jiangsu province. We are near Shanghai,40 minutes away from Shanghai Hongqiao airport by car and 18 minutes by high speed train.
Established in 2007, we have been dedicated on converting machines which are used before and after printing for over 10 years.
Our belief is “people-oriented, technology-first, integrity-centered and brand idea” to provide customers reliable products,
perfect service.Our products are widely applied in laminating, slitting and die cutting for shield materials, sticky materials,
insulating materials, conductive materials, electronic materials. Sizing cutting for strings, belts, rolls in bag line, shoe and
cap line and plastic and rubber line.
slitting, laminating and rolling. Other related machines in our fields can be customized based on your specific requirements.
Kunshan Hexin Precise Machinery is located in Kunshan city,Jiangsu province. We are near Shanghai,40 minutes away from Shanghai Hongqiao airport by car and 18 minutes by high speed train.
Established in 2007, we have been dedicated on converting machines which are used before and after printing for over 10 years.
Our belief is “people-oriented, technology-first, integrity-centered and brand idea” to provide customers reliable products,
perfect service.Our products are widely applied in laminating, slitting and die cutting for shield materials, sticky materials,
insulating materials, conductive materials, electronic materials. Sizing cutting for strings, belts, rolls in bag line, shoe and
cap line and plastic and rubber line.
