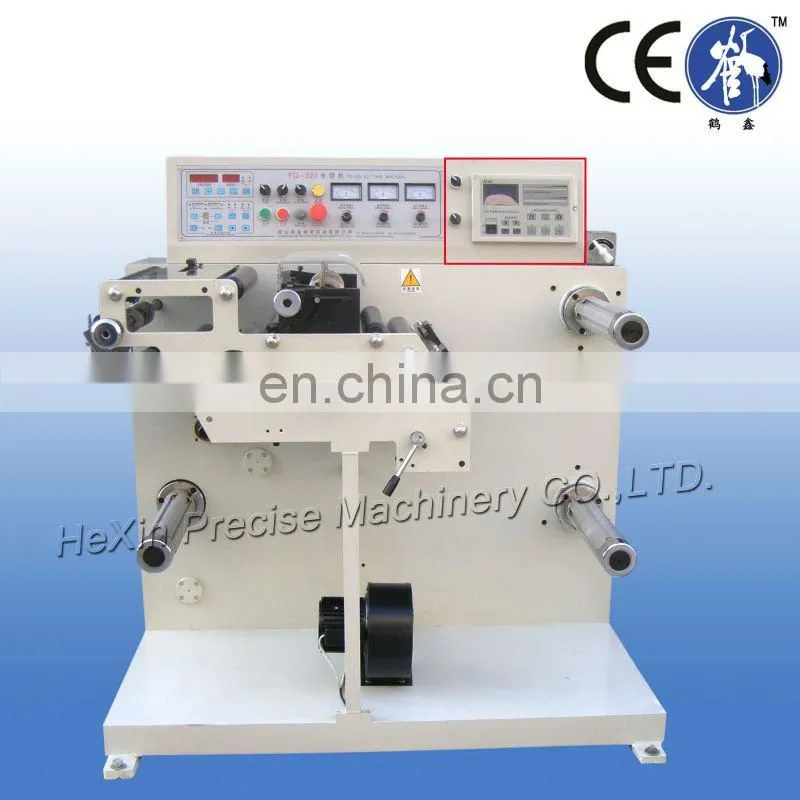

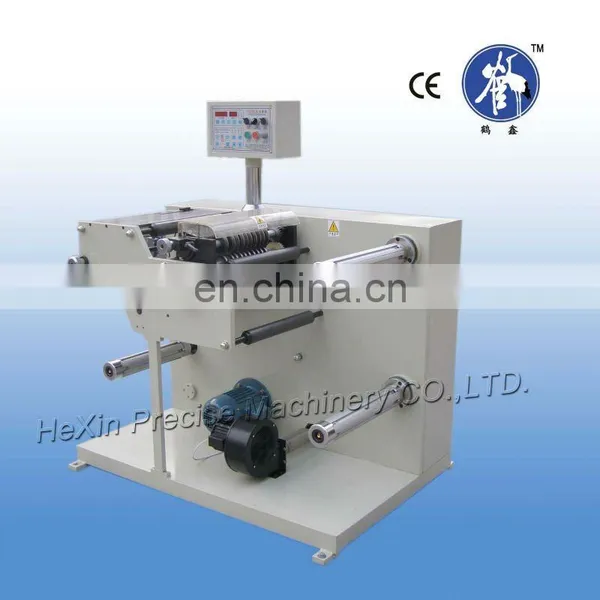

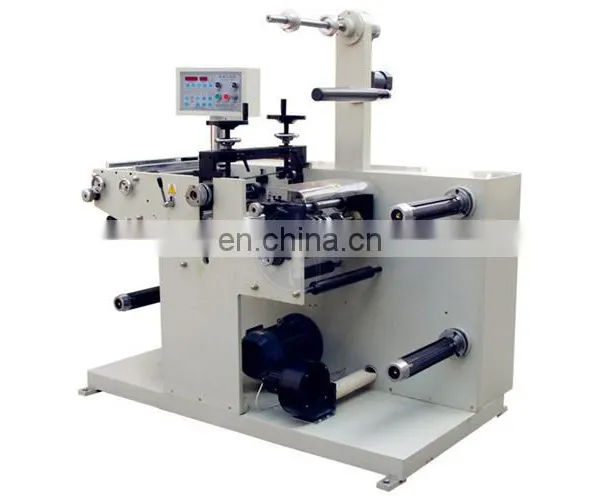

Hexin Mylar slitting and rewinding machine

1.Unwinding unit

Name: Unwinding air shaft                                                 Material :  air shaft

It's inflatable by air compressor ,convenient to upload and discharge the material  .Easy to operate ,

maintain,and change .

2.EPC system

Name: Electronic photo cell

Usage :
These electrical photo cell is used to guide the non neat material .make sure the slitting effect is good  .

The photo eyes focus on the edge of material ,you can choose to use single eye or double eyes .

3.Slitting unit

Name: Slitting blades                                                           Material : 9GrSi
This machine is standard equipped with 8 sets of slitting blades ,The minimum slitting width is 20 MM ,if

you want to slit smaller width ,you can customize self-locking knives . It's easy to adjust the slitting width

based on your products .

4.Rewinding unit

Name: rewinding air shafts                                                  Original: China
It's inflatable by air compressor ,convenient to upload and discharge the material ,You can rewinding

them into one shafts or two shafts according to your products . Easy to operate ,maintain,and change .

Specifications

Features:

©Counting function: length counting and piece counting

©EPC system (edge positioning control): photo cell

©Slitting unit

©Waste discharge blower

©Two air rewinding  inflatable shafts

©Tension control by magnetic brake & magnetic clutch

Application:

Slitting for label, conductive fabric, foam, diffuser,reflector film, double-sided adhesive tape, nickel plate, PET,PC,PE
