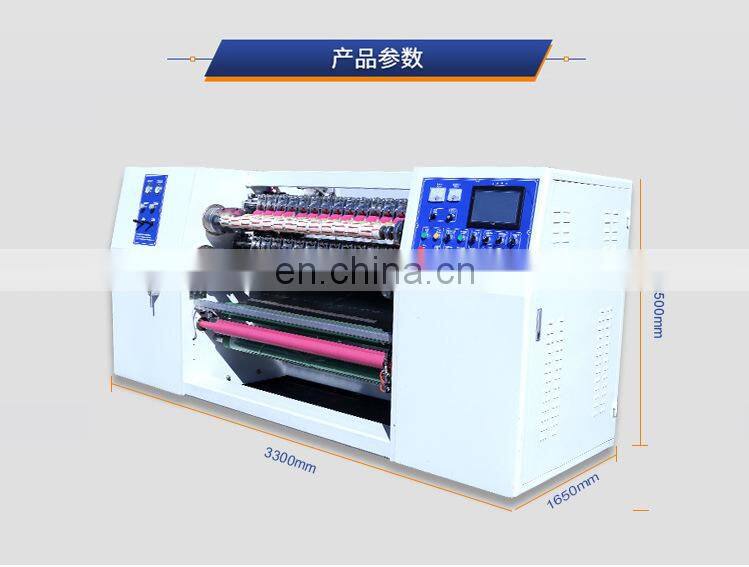

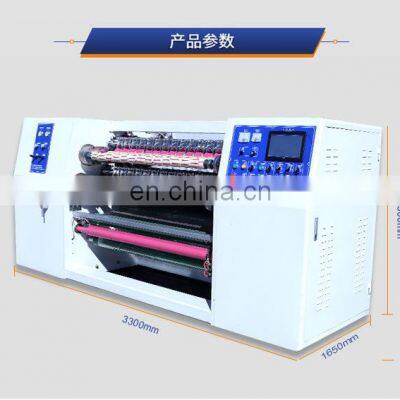

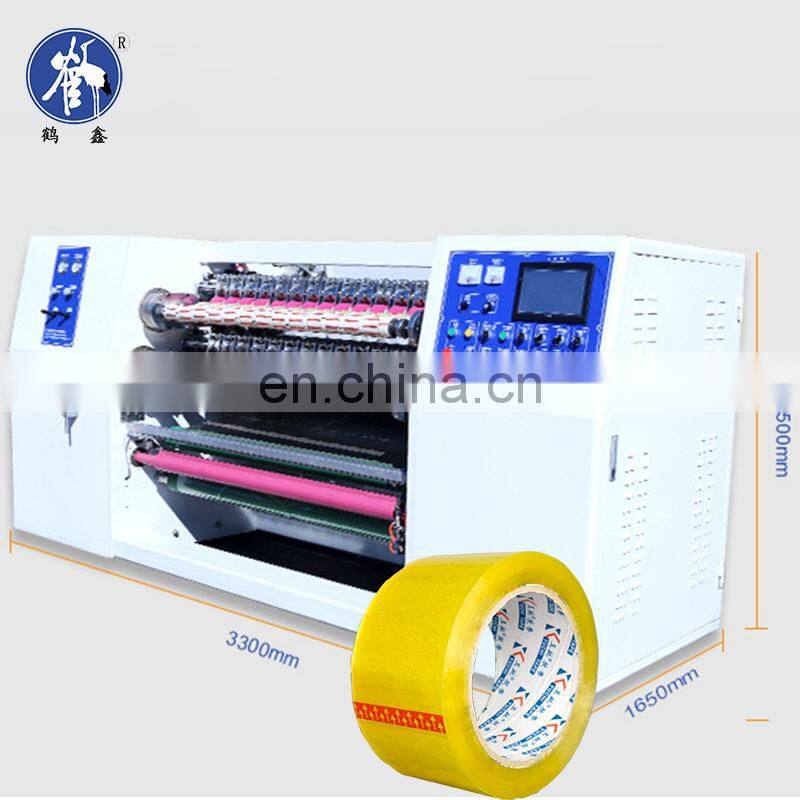

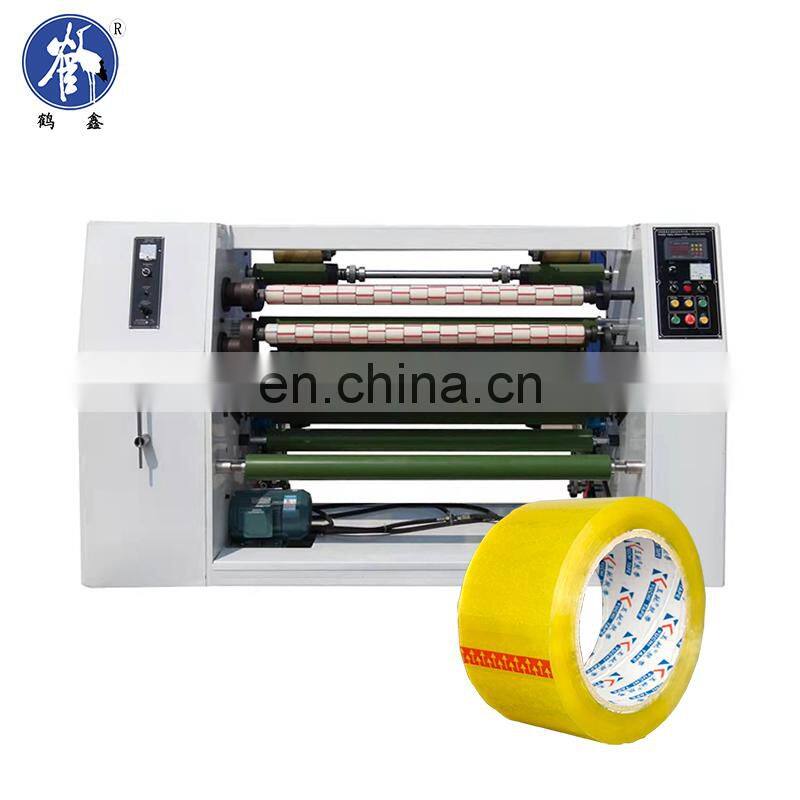

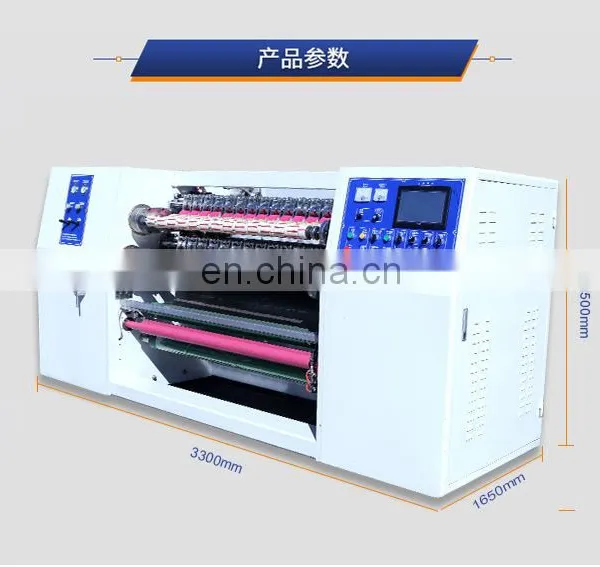

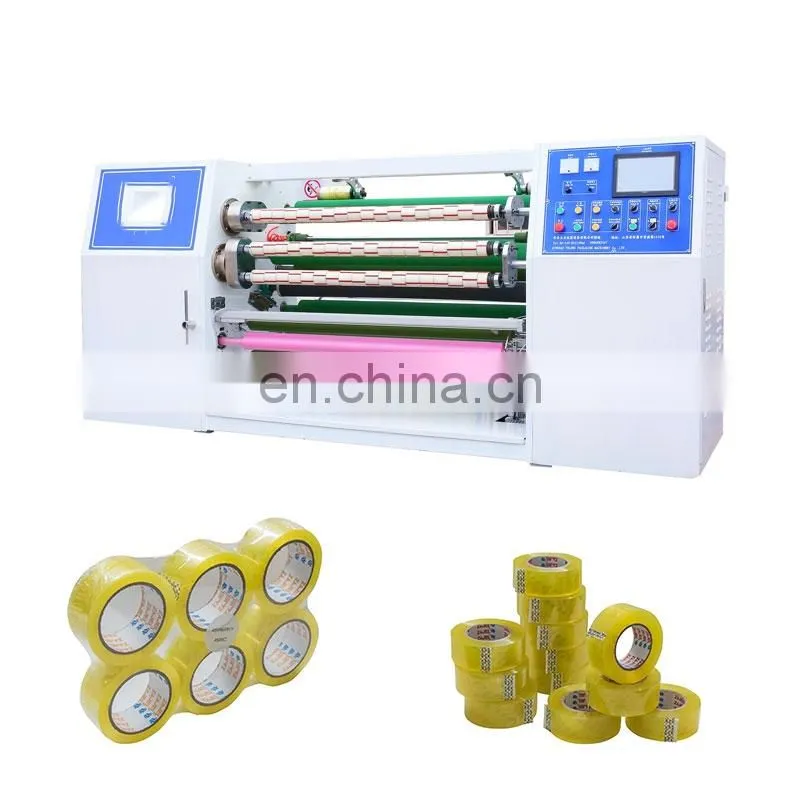

Automatic BOPP Tape Slitting Rewinding Machine
Main Technical Parameter:
|
Model |
HX-1300 |
|
Max feeding Width |
1300mm |
|
Main Engineer Power |
6kw |
|
Speed |
180m/min |
|
Size |
3300*1650*1500mm |
|
Weight |
1200kg |
|
Unwinding Diameter |
800mm |
|
Winding Diameter |
160mm |
|
Precision |
±0.1mm |
|
Power |
380v 50hz |
Features:
1. The max width: 1300mm
2. The minimum slitting width: 8-25mm
3. Material thickness range: 0.05-3mm
4. Tolerence: 0.2mm, Precision: 0.1mm
5. The speed: 180m/min
6. Under CE and ISO
7. Manufacturer experience: 30years
8. Export experience: 20years
Charatertistics and Functions:
1. This machine is slitting equipment of high precision and high sensitivity, with inflatable bearing used for feeding and receiving materials.
2. Imported magnetic powder clutch is adopted to control the tension.
3. Imported gas sensitive device is adopted to detect the rectification of rolling, with fully automatic hydraulic rectification control.
4. Automatic detection, rectification and metering can be realized.
5. It is characterized be accurate slitting, fast slitting speed, ease of operation and maintain
Purpose:
1. It is applicable for the slitting tooling of industrial adhesive tape, electronic material, protective film, copper foil, aluminum foil, OPP, PE, PVC, sheet, cloth, etc.
2. This machine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.
After-service:
1. Warranty for machine: 12months
2. After-service: A reply within 24 hours
3. A free training in our factory available before delivering machines.
rectification controller

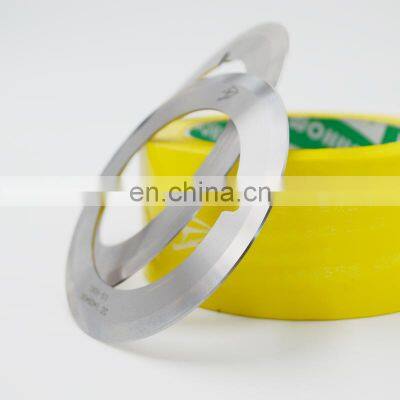

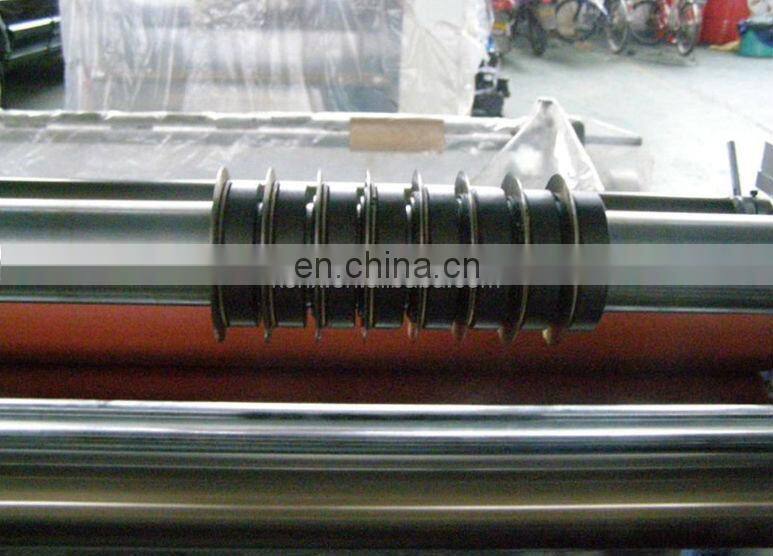

slitting knife
