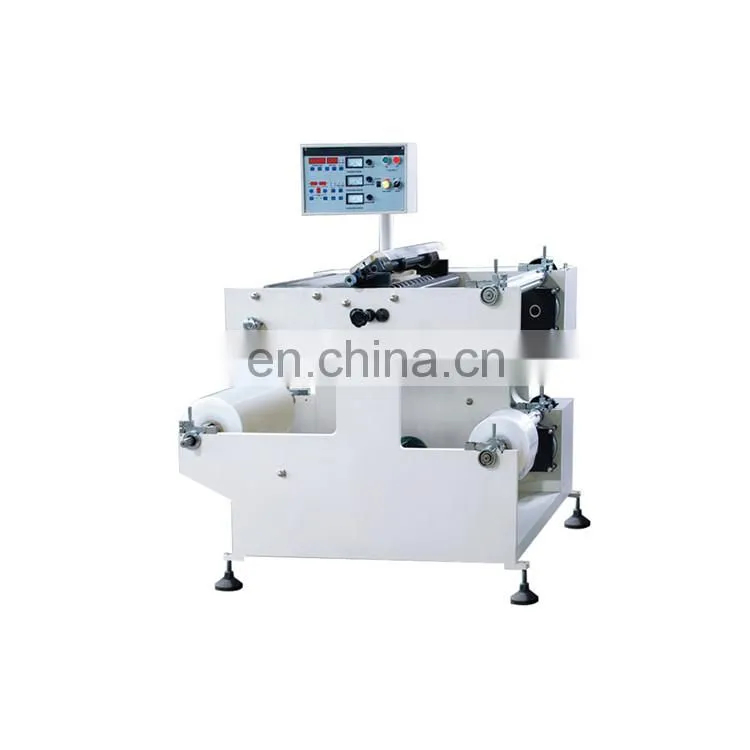

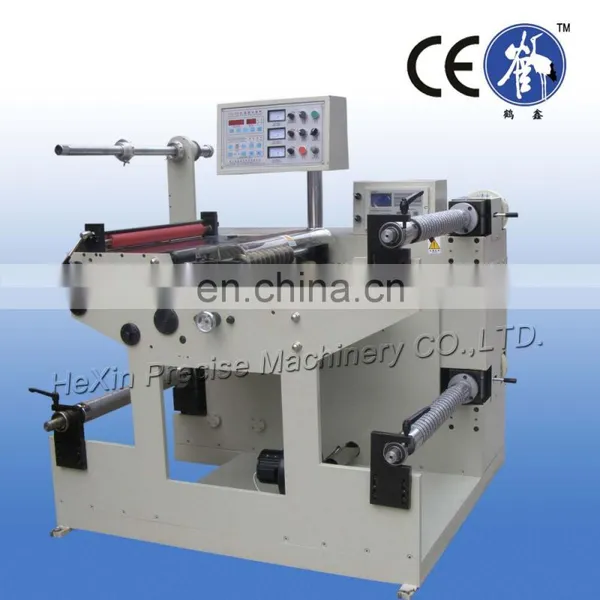

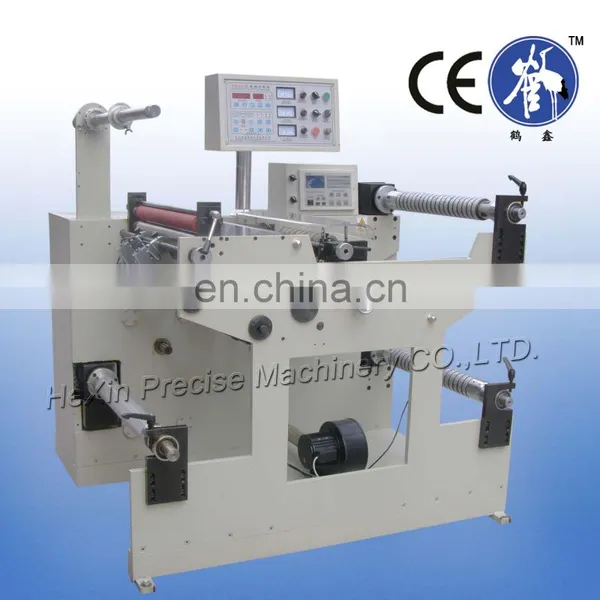

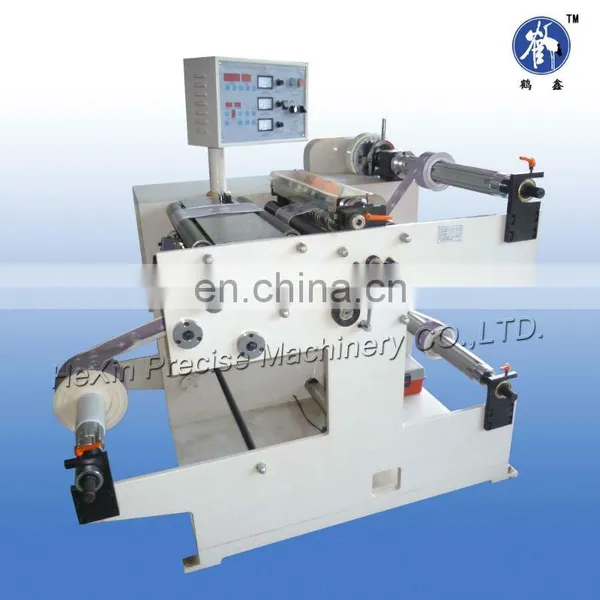

Barcode Label Slitter Rewinding Machine (HX-550FQ)
Main Technical Parameters:
|
Model |
HX-550FQ |
|
slitting speed |
70m/min |
|
Max. Web Width |
550mm |
|
Max. Unwinding Diameter |
500mm |
|
Max. Winding Diameter |
480mm |
|
Machine Size(LxWxH) |
1300x1100x1400mm |
|
Machine Weight |
500kg |
Feature:
This machine is the auxiliary products of the automatic mould cutting machine , which is suitable for narrow pieces of paper being cut. It have count no. Automatically, put roll rectify a beviation the functions of controlling etc.automatically by three photoelectric eyes, the structure of the complete machine is compact, fast with high efficiency,operate the characteristic simply, operate steadily.
Charatertistics :
1. The max width: 550mm
2. The minimum slitting width: 8-20mm
3. Material thickness range: 0.05-3mm
4. Tolerence: 0.2mm, Precision: 0.1mm
5. The speed:70m/min
6. Under CE and ISO
7. Manufacturer experience: 30years
8. Export experience: 20years
Functions:
1. This machine is applicable to slit the narrow scope paper.
2. It can automatically meter, set length, stop, winding is controlled by photoelectric eyes.
3. Compact structure, fast speed, high efficiency, accurate slitting, easy and steady operation.
Purpose:
1. It is applicable for the slitting tooling of industrial adhesive tape, electronic material, protective film, copper foil, aluminum foil, OPP, PE, PVC, sheet, cloth, etc.
2. This machine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.
After-service:
1. Warranty for machine: 12months
2. After-service: A reply within 24 hours
3. A free training in our factory available before delivering machines

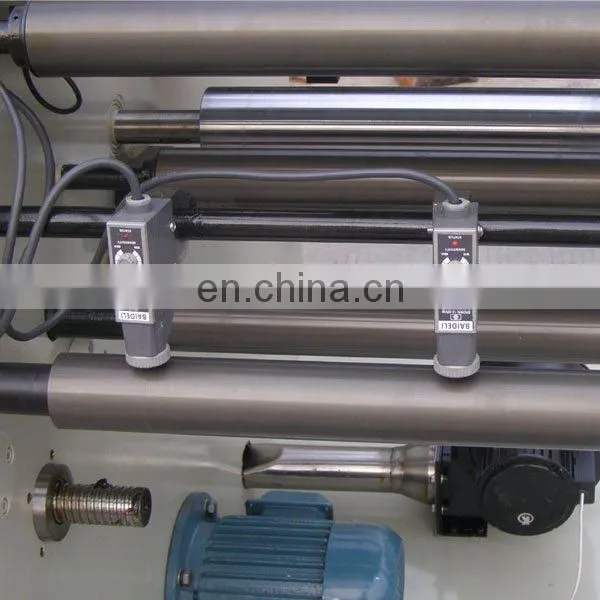

photoelectricity marking sensor

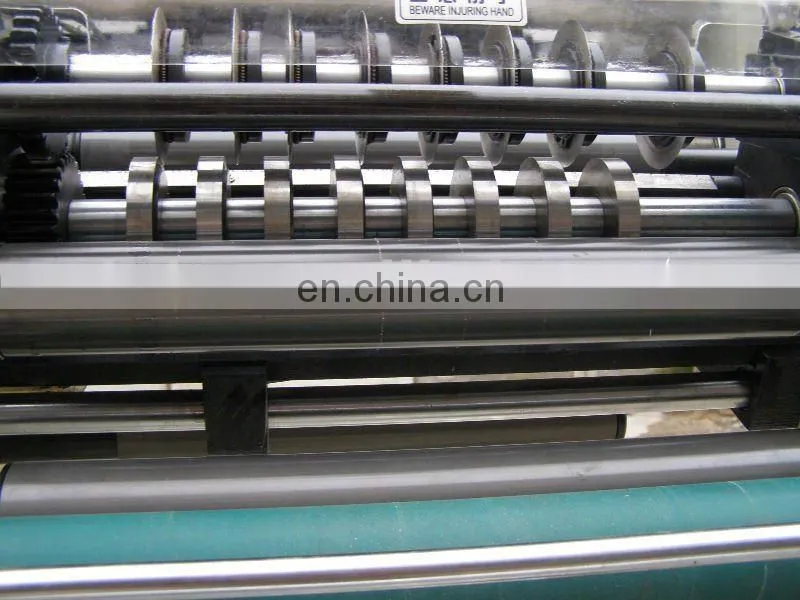

cutting knife
