Automatic slitter rewinder machine with laminating system
|
Model |
HX-650FQ |
|
Max Working Width |
650mm |
|
Min Slitting Width |
8mm |
|
Main Engineer Power |
2.2kw |
|
Speed |
80m/min |
|
Size |
1800x1400x1260mm |
|
Weight |
1000kg |
|
Rewinding Diameter |
600mm |
|
Winding Diameter |
450mm |
|
Precision |
±0.1mm |
|
Power |
220V 50HZ |
This is the finishing equipment. It is suitable for slitting roll/reel material such as paper, foil, adhesive
labels. It has functions of meter counter,
piece counter, length and quantity setting, automatically stopping, After reaching a preset number or
running meters .web guiding system and so on. This robust machine consisting of a solid steel frame,The structure is compact , fast, with high efficiency, easy and steady operation.
1.Machine frame made of coated steel
2.Electronics integrated in the machine frame
3.unwinding with pneumatic compressed shaft for 3" cores
4.rewinding with pneumatic compressed shaft for 3" cores
5.Web tension adjustable via magnetic powder clutch
6.Axial fan for suction of waste strip
7. The minimum slitting width is 8mm
8.unwinding is controlled by two photoelectric eyes
9.The movement of the rubber roller is controlled by cylinder
10.Laminating and slitting can be done at one time or separately.
Standard configuration:
1.One slitting station
2.One laminating station
3.With one piece 3’’ unwinding shaft,2 pieces rewinding shafts
4.With meter/number counter
5.With two photoelectric eyes
6.With 8 sets of round slitting knives
7.Machine has blower fan to blow away the trimmed edge
1. It is applicable for the slitting tooling of industrial adhesive tape, electronic material, protective film, copper foil, aluminum foil, OPP, PE, PVC, sheet, cloth, Flannelette etc.
2. This machine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.
1. Warranty for machine: 12months
2. After-service: A reply within 24 hours
3. A free training in our factory available before delivering machines.
Here are our slitter rewinder machine working vedio,please kindly link
/v_show/id_XODI0NDU0NzQ0.html PP film slitting
/v_show/id_XODI0NDUwODky.html sandpaper slitting
Control panel( slitter rewinder machine )
Slitting knives ( slitter rewinder machine )
Photoelectric eyes( slitter rewinder machine )

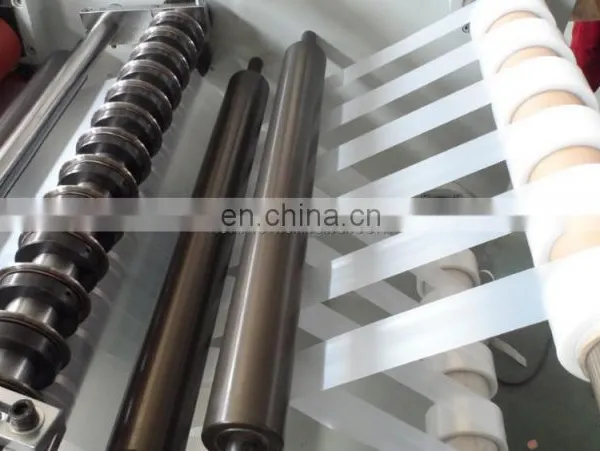

Rewinders ( slitter rewinder machine )
Motor and blower fan ( slitter rewinder machine )
CE Certificaitons:
