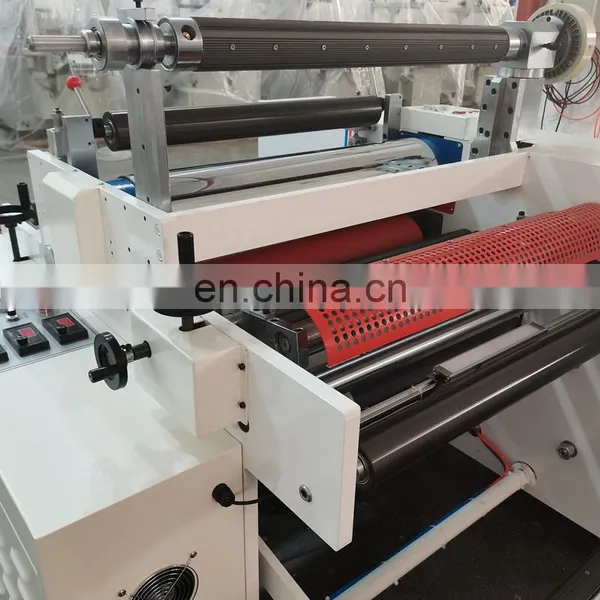

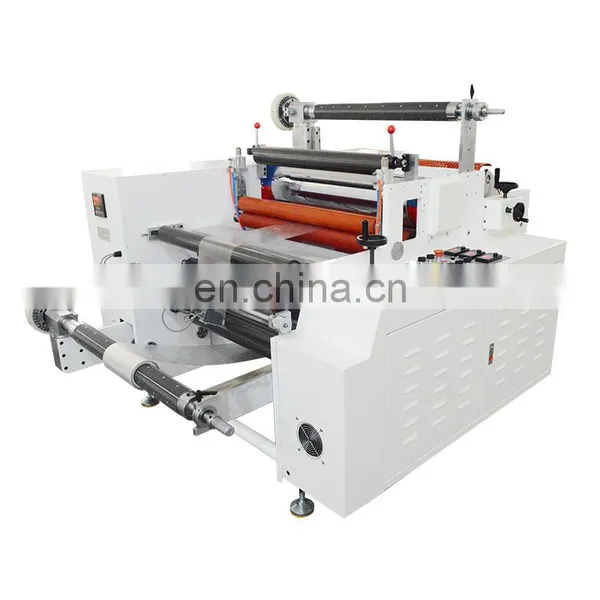

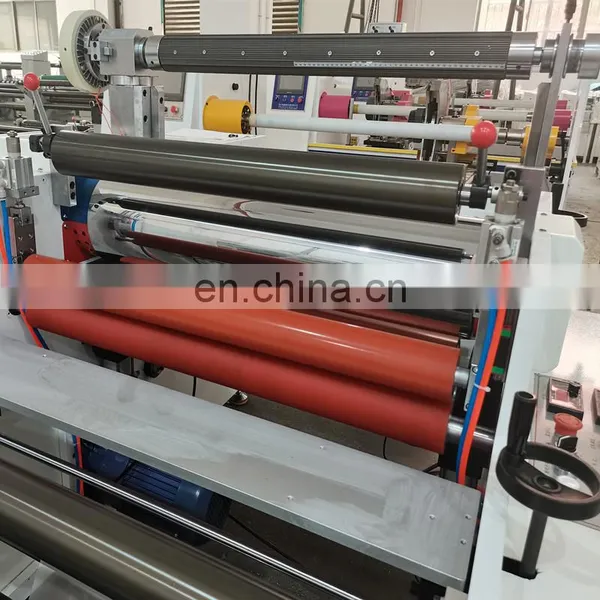

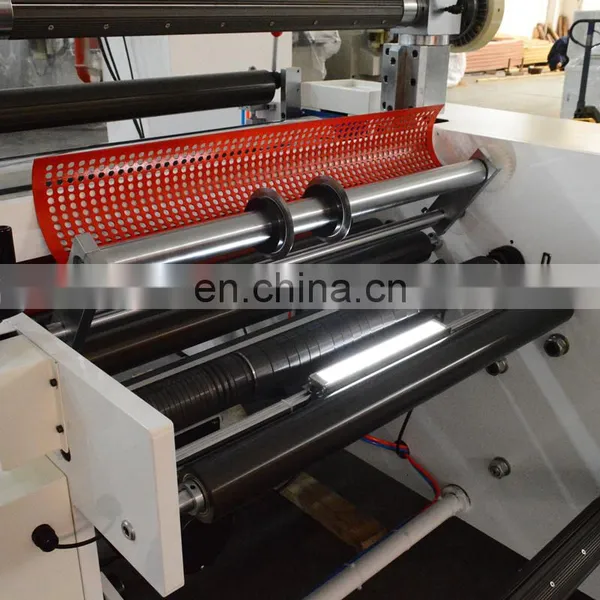

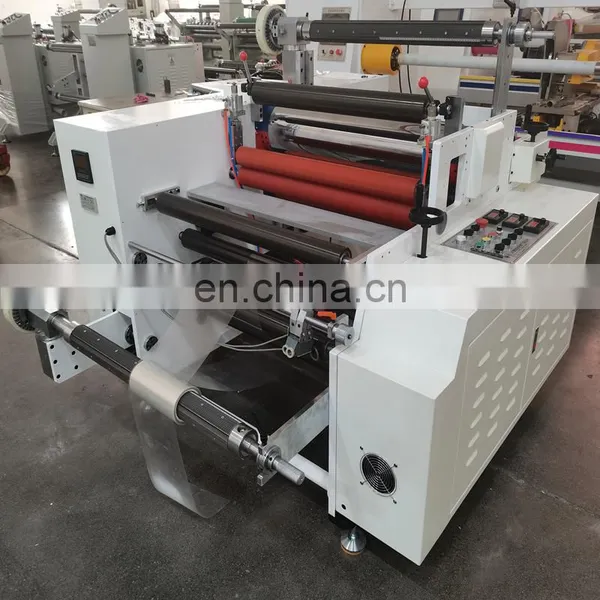

Factory Custom In Addition to Static Oil Heating Slitting Laminating Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
1991
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Factory Custom 650mm Oil Heating Slitting Laminating MachineNegotiableMOQ: 1 -
Computerized Thermal POS Receipt Paper Roll Slitting MachineNegotiableMOQ: 1
-
Offset Paper Self Adhesive Paper Rotary Die-cutting MachineNegotiableMOQ: 1
-
Factory Custom Dust Removal Device Used Film Slitting MachineNegotiableMOQ: 1
-
With Photoelectric Correction System Microcomputer Conductive Cloth Slitting Rewinding MachineNegotiableMOQ: 1
Product Overview
Features:
1. Adopt the mold temperature machine to control the constant temperature system to keep the temperature of the laminating roller stable, and achieve the best laminating effect, high efficiency and energy saving;
2. The high-performance variable frequency speed-regulating motor makes the bonding speed stable and efficient, the power is balanced, and the material is evenly fed;
3. It is suitable for laminating roll-to-roll and roll-to-sheet materials, one machine with multiple uses, saving financial resources, saving space, and super value return;
4. Adopt mirror heating roller and imported high temperature resistant silica gel (effectively control the phenomenon of degumming and gluing). The roller spacing is tightly pressed and tightly controlled by the cylinder, which is automatically adjusted and easy to operate. The large diameter of the upper and lower rollers increases the contact surface of the substrate, thereby providing a better bonding effect, and the surface of the material is smooth and smooth.
5. Laminating and slitting can be carried out at the same time, and it can also be laminating or slitting separately, with accurate slitting, fast slitting speed, convenient operation and maintenance, etc.
Mold temperature machine 1
2 sets of discharging air shaft (3″)
Receiving air expansion shaft (3″) 1 set
Discharging magnetic powder brake 50N (Zhejiang) 2 sets
Receiving magnetic powder clutch 50N (Zhejiang) 1 set
Unwinding tension control system (Zhejiang) 2 sets
Receiving tension control system (Zhejiang) 1 set
Correction system 1 set
Fit the upper steel roller 1 set
1 set of lower rubber roller
Aluminum guide roller (surface hard oxygen treatment) 1 set (5-6 pieces)
Pressure roller pneumatic up and down system adjustable 1 set
Electronic meter counter (Zhejiang) 1 set
Static eliminator 1 to 2
Products Description
Multifunctional laminating and slitting machine
Factory direct support customization
Six core advantages
Direct deal Time guarantee Experience guarantee
Material guarantee Price guarantee After sale guarantee
It's not the most expensive, but it's easy to use
It is suitable for many industries, with wide range of uses, easy to use and customized on demand
Non standard customization
Fast delivery
Exquisite materials
Product Paramenters
Model |
HX-650TH |
Max Feeding Width |
600mm |
Main Engineer Power |
4kw |
Speed |
20m/min |
Size |
205.160.135 |
Weight |
600kg |
Rewinding Diameter |
600mm |
Winding Diameter |
450mm |
Precision |
±0.1mm |
Power |
220380V 50HZ |
1 |
The max width: 600mm |
||||||
2 |
Tolerence: 0.05mm, Precision: 0.1mm |
||||||
3 |
Material thickness: 0.1mm-1mm |
||||||
4 |
Kiss cut or cut through available |
||||||
5 |
Under CE and ISO Certifications |
||||||
6 |
Warranty for machine: 12months |
||||||
7 |
Delivery time: 30days |
||||||
8 |
Cut through for standard machine |
||||||
9 |
Kiss cut is for optional |
||||||
Product configuration
stainless steel
slitting knife
motor
Photoelectric tracking and correcting system
In addition to static
Product packaging
Wooden case for export
.You can also choose vacuum packaging
Our company
We are a team of industry professionals with strong backgrounds in cutting, die cutting,slitting, laminating and rolling. Other related machines in our fields can be customized based on your specific requirements.
Kunshan Hexin Precise Machinery is located in Kunshan city,Jiangsu province. We are near Shanghai,40 minutes away from Shanghai Hongqiao airport by car and 18 minutes by high speed train. Established in 2007, we have been dedicated on converting machines which are used before and after printing for over 10 years.
Our belief is “people-oriented, technology-first, integrity-centered and brand idea” to provide customers reliable products,perfect service.Our products are widely applied in laminating, slitting and die cutting for shield materials, sticky materials,insulating materials, conductive materials, electronic materials. Sizing cutting for strings, belts, rolls in bag line, shoe and cap line and plastic and rubber line.
Kunshan Hexin Precise Machinery is located in Kunshan city,Jiangsu province. We are near Shanghai,40 minutes away from Shanghai Hongqiao airport by car and 18 minutes by high speed train. Established in 2007, we have been dedicated on converting machines which are used before and after printing for over 10 years.
Our belief is “people-oriented, technology-first, integrity-centered and brand idea” to provide customers reliable products,perfect service.Our products are widely applied in laminating, slitting and die cutting for shield materials, sticky materials,insulating materials, conductive materials, electronic materials. Sizing cutting for strings, belts, rolls in bag line, shoe and cap line and plastic and rubber line.
