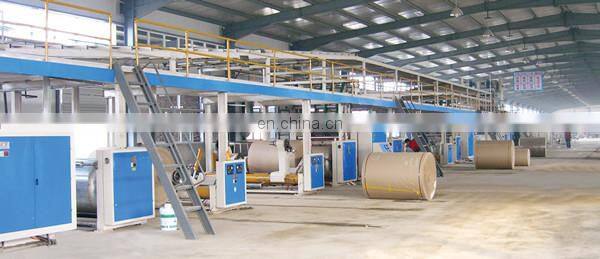

Help Center5 Layer Corrugated Production Line Corrugated Carton Box Making Machine
Related Products
-
Hot Selling Corrugated Carton Box Platform Model Die Cutting MachineNegotiableMOQ: 1 -
Platform Creasing Die Cutting Packing Machine/ Corrugated Cardboard Platform Die-cutting MachineNegotiableMOQ: 1
-
5 Ply Automatic Corrugated Cardboard Machinery Manufacturers Making Machine Production LineNegotiableMOQ: 1
-
Automatic Corrugated Cardboard Machinery Manufacturers Making Machine Production LineNegotiableMOQ: 1
-
Automatic Corrugated Paper Sheet Splicer Machine For Cardboard MakingNegotiableMOQ: 1
Main Mechanism (Double Wall)
|
NO. |
NAME |
SET/UNIT |
REMARK |
|
1 |
Mill roll stand |
5 |
Electric drive, expandable chucks |
|
2 |
Single facer |
2 |
Vacuum adsorbtiong,Φ380mm, gimble,Heavy Type |
|
3 |
Converying bridge |
1 |
Electrical adjusting deflection, adsorbtiong tension |
|
4 |
Double glue machine |
1 |
Pneumatic operarion, VFC |
|
5 |
Triplex preheater |
1 |
Φ800 ,electromotion to large the kraft paper’s preheating area(including the qualification & verification) |
|
6 |
Preheater |
4 |
Φ800,electromotion to large the kraft paper’s preheating area (including the qualification & verification) |
|
7 |
Double facer |
1 |
520mm×18 pcs hot plate,upper-lower intensive press roller, could adjust pressure seperately |
|
8 |
Cooling Shaping Part |
1 |
upper-lower intensive press roller, channel length 9m |
|
9 |
Conveying big belt |
2 |
high quality cotton belt |
|
10 |
Thin blade Slitter Scorer |
1 |
5 blades and 8 scores, Electrical adjusting deflection |
|
11 |
Cutoff |
1 |
Computer-controlled,Servo-power |
|
12 |
Main tansmission |
1 |
22kw, could adjust speed |
|
13 |
Air pump |
1 |
Eletric Air Charging |
|
14 |
Electric control system |
2 |
Operation counter, 2 single facers,1 main transmission |
|
15 |

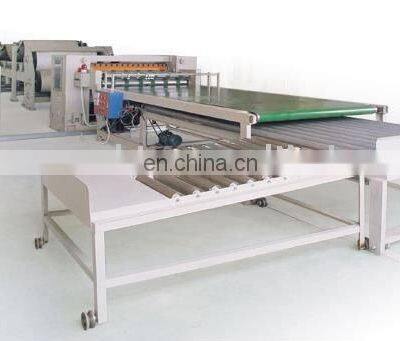

Transverse Board Stacker |
1 |
Transverse Board Stacker, 6M |
|
16 |
Steam System |
1 |
Without boiler and panel |
|
|
|||
|
Payment : by T/T 30% in advance and 70% before delivery |
|||
|
Delivery : within 110 working days after receiving deposit
|
|||
Technical Specifications.
1 Efficiency Producing Width 1800mm
2 Total Length of the Production Line 78m(Whichever is in the basis of Figure)
3 Desigh Speed 150m/min
Annotation Using standard paper as materials,
Width of Paper 1800mm
Practical Speed 5 Ply100m-120m/min
Paper Parameters 150-200g/m2(Water Content 8%—9%)
Anti-Internal Rupture Strength 3—5kg·n/cm2
Corrugated Paper 125-360g/m2(Water Content 8%—9%)
Inside Paper 110-180 g/m2(Water Content 8%—9%)
Round Press Strength(Transverse Direction) ≥8—14kg·n/cm2
4 Heating Way Steam Heating Cost of Steam About 4 T/h ;
Max Press of Steam 1.2Mpa
5 Total Power 380V 50HZ---260kw
1.We need tp test the machine working condition before delivery to customer country.
2.If you need our engineers install and teach you hoe to operate machine, we also can send our engineers to your country, but need you bear all fee, tickets, foods, hotel and salary 120usd/day per engineer.
3.Our machine has one year warranty,during this period, if problems caused by our machine quality, we will change all parts for you by free fee.If any questions,can by email by 24hours,we also help you solve these eoblems.
