Platform Creasing Die Cutting Packing Machine/ Corrugated Cardboard Platform Die-cutting Machine

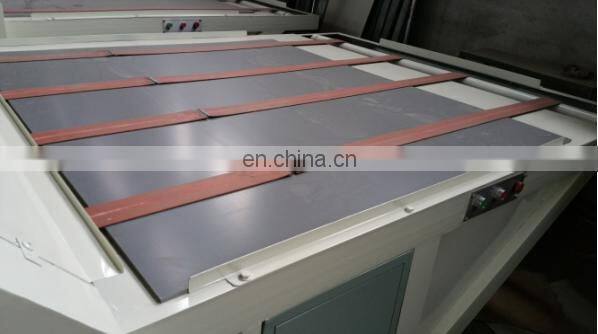

Platform Creasing Die Cutting Packing Machine/ Corrugated Cardboard Platform Die-cutting Machine photo-1

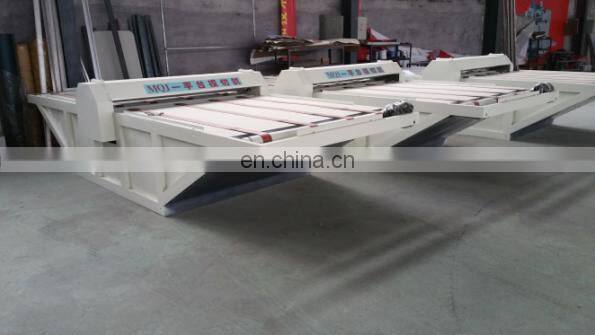

Platform Creasing Die Cutting Packing Machine/ Corrugated Cardboard Platform Die-cutting Machine photo-2
Platform Creasing Die Cutting Packing Machine/ Corrugated Cardboard Platform Die-cutting Machine photo-3
Platform Creasing Die Cutting Packing Machine/ Corrugated Cardboard Platform Die-cutting Machine photo-4
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
2009
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Product Description



Platform Die-cutting machine

Platform Creasing Die Cutting Packing Machine/ Corrugated Cardboard Platform Die-cutting MachinePlatform Creasing Die Cutting Packing Machine/ Corrugated Cardboard Platform Die-cutting Machine



Introduce

Corrugated platform mould slicing machine
-Work speed 15pcs/min
-make the special upscale unusual carton
-mould is stable

Features

1.The platform mould slicing machine is the renew equipment to make the special upscale carton which can slice the side, slice the corner, hurtle the bore, open the slot, press the trace and other processes.

2. It can make all the above mentioned processes into one integral whole process and merge once mould cutting into the type.

3. The quality of slicing the mould stable, the size is accurate, the side is hairless.

4. It is clean and tidy and can be operated safely and conveniently.

Specification

1. Platform mould slicing machines
2. Cardboard Type: low-medium-and high-grade cardboard boxes
3. Long usage life

4. Max size of paper: 1500*1800(mm)

5. Min size of paper: 100*100(mm)

6. Die cutting size (width + height): 1600*2000(mm)

Model

Work speed

Electric power

Exterior size(mm)

The weight (kg)

MQJ-1200

0-15 pieces of paper

2.2KW

3000×1500×1250mm

1000

MQJ-1600

0-15 pieces of paper

2.2KW

4500×1900×1250mm

1500

MQJ-1800

0-15 pieces of paper

2.2KW

5000×2100×1250mm

1800



Packaging & Shipping



LCL : Normal package is wooden box (size : L×W×H). Wooden box will be fumigated . We use strong export stander wooden box pack all machine ,in this case ,machine can be protected very well.

FCL : Machine is to heavy or big , we can choose full container loading . we use PE Film packing then loading to container .

Others : According to customers special request .



Our Services

1.We need to test the machine working condition before delivery to customer country.

2.If you need our engineers install and tesch you how to operate machine,we also can send our engineers to your country, but need you bear all fee,tickets,food,hotel and salary 60 usd/day per engineer.

3.Our machine has one year warranty, during this period,if probelms casued by our machine quality. we will change all parts for you by free fee.

If any questions, can by email by 24hours , we also help you these probiems.
