Home > Industrial Equipment & Components > Valve > Ball Valve > ANSI DIN STANDARD Carbon Steel Soft Sealed Flange End Full Hole Sleeve PLUG VALVE API599 API6D

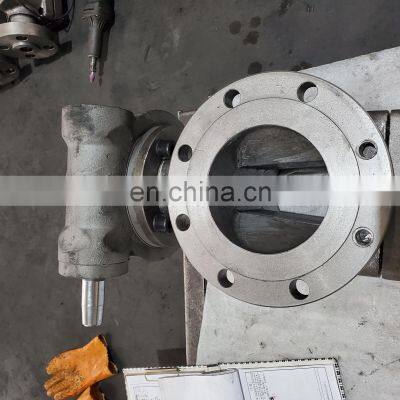

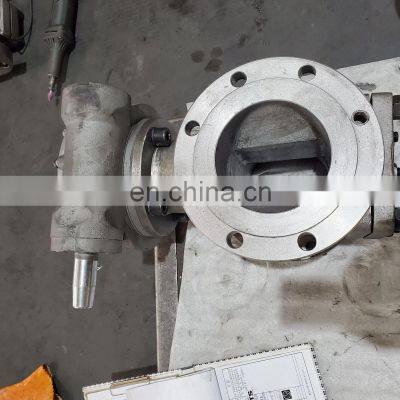

ANSI DIN STANDARD Carbon Steel Soft Sealed Flange End Full Hole Sleeve PLUG VALVE API599 API6D
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
1994
Annual Export Value:
Above US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DIN API Bellow Seal Globe Valves Manual Low Pressure Bellow Seal Stainless Steel Cast Steel Toxic Circumstance Globo ValvulasNegotiableMOQ: 1 -
DIN Bellow Seal Globe Valves Stainless Steel CF8 CF8M Toxic Circumstance Globo Valvulas Manual Low Pressure Bellow SealNegotiableMOQ: 1
-
Forged Steel Check Valve Swing Type Integral Flange 150lb 300lb 600lb 900lb 1500lb 2500lbNegotiableMOQ: 1
-
Butterfly Valve Wafer Type Triple Eccentric Type Carbon Steel Stainless Steel With Pneumatic Actuator Mariposa ValvulasNegotiableMOQ: 1
-
API6D BS1868 SWING CHECK VALVE 18inch 600lb Carbon Steel Body Non Slam Check Valve With Heavy Duty Valvulas de ControlNegotiableMOQ: 1
Products Description
DOMOS VALVE INDUSTRIAL VALVE SERIES
PLUG VALVE Pressure balance non-lubricated sleeve type
Technical Specification
Brand: DMS ,DPV,DHV,POWELL etc.
Size Range: 2"-40"
Pressure Rating: 150lb-2500lb,PN6-PN160
Material: A216 WCB, A351 CF3, CF8, CF3M, CF8M, A995 4A,
5A, A352 LCB, LCC, LC2,WCC,WC5,C5,WC6,WC9,WC11,WC12,),CD-4MCU,SS2205 . Monel, Inconel, Hastelloy B61,B62,copper,Bronze etc.
Temperature Range: -29°C~500°C
Applicable Standards:
Design: API6D,BS1868,DIN，ASME B16.34
Face to face: ASME B16.10
End Flanges: ASME B16.5/ASME B16.47
Butt welded ends: ASME B16.25
Fire Safety: API607,API6A
Inspection and test: API 598,API6D
Other Information:
Valve Test: 100% quality tested before delivery
Valve Guarantee: 18 months after shipments or 12 months after installed
Valve Delivery: 3 - 45 days
Valve Sample: Sample Available by DOMOS VALVE
Valve Color: Customer request
Valve Packing: Plywood BOX for Ball Valve
MOQ: 1 Set
Place of Origin: Zhejiang, China (Mainland)
Delivery Detail: Shipped in 15-30 days after payment
Port: Shanghai Or Ningbo
Payment Terms: L/C,D/A,D/P,T/T, Western Union
Brand: DMS ,DPV,DHV,POWELL etc.
Size Range: 2"-40"
Pressure Rating: 150lb-2500lb,PN6-PN160
Material: A216 WCB, A351 CF3, CF8, CF3M, CF8M, A995 4A,
5A, A352 LCB, LCC, LC2,WCC,WC5,C5,WC6,WC9,WC11,WC12,),CD-4MCU,SS2205 . Monel, Inconel, Hastelloy B61,B62,copper,Bronze etc.
Temperature Range: -29°C~500°C
Applicable Standards:
Design: API6D,BS1868,DIN，ASME B16.34
Face to face: ASME B16.10
End Flanges: ASME B16.5/ASME B16.47
Butt welded ends: ASME B16.25
Fire Safety: API607,API6A
Inspection and test: API 598,API6D
Inverted pressure balance lubricated type Plug valve 6” / class 150 / RF flange / Body ASTM A216 WCB,gear operated,plug:WCB+N,Stem A182 F6a
Plug valves are valves with cylindrical or conically tapered "plugs" which can be rotated inside the valve body to control flow through the valve. The plugs in plug valves have one or more hollow passageways going sideways through the plug, so that fluid can flow through the plug when the valve is open. Plug valves are simple and often economical.
When the plug is conically tapered, the stem/handle is typically attached to the larger diameter end of the plug. Plug valves
usually do not have bonnets but often have the end of the plug with the handle exposed or mostly exposed to the outside. In such cases, there is usually not much of a stem. The stem and handle often come in one piece, often a simple, approximately L-shaped handle attached to the end of the plug. The other end of the plug is often exposed to the outside of the valve too, but with a mechanism that retains the plug in the body.
The simplest and most common general type of plug valve is a 2-port valve with two positions: open to allow flow, and shut (closed) to stop flow. Ports are openings in the valve body through which fluid can enter or leave. The plug in this kind of valve has one passageway going through it. The ports are typically at opposite ends of the body; therefore, the plug is rotated a fourth of a full turn to change from open to shut positions. This makes this kind of plug valve a quarter-turn valve. There is often a mechanism limiting motion of the handle to a quarter turn, but not in glass stopcocks.
Slightly conically tapered metal (often brass) plug valves are often used as simple shut-off valves in household natural gas
lines.
It is also possible for a plug valve to have more than two ports. In a 3-way plug valve, flow from one port could be directed to either the second or third port. A 3-way plug valve could also be designed to shift flow between ports 1 and 2, 2 and 3, or 1 and 3, and possibly even connect all three ports together. The flow-directing possibilities in multi-port plug valves are similar to the possibilities in corresponding multi-port ball valves or corresponding multi-port valves with a rotor. An additional possibility in plug valves is to have one port on one side of the plug valve and two ports on the other side, with two diagonal and parallel fluid pathways inside the plug. In this case the plug can be rotated 180° to connect the port on the one side to either of the two ports on the other side.
When the plug is conically tapered, the stem/handle is typically attached to the larger diameter end of the plug. Plug valves
usually do not have bonnets but often have the end of the plug with the handle exposed or mostly exposed to the outside. In such cases, there is usually not much of a stem. The stem and handle often come in one piece, often a simple, approximately L-shaped handle attached to the end of the plug. The other end of the plug is often exposed to the outside of the valve too, but with a mechanism that retains the plug in the body.
The simplest and most common general type of plug valve is a 2-port valve with two positions: open to allow flow, and shut (closed) to stop flow. Ports are openings in the valve body through which fluid can enter or leave. The plug in this kind of valve has one passageway going through it. The ports are typically at opposite ends of the body; therefore, the plug is rotated a fourth of a full turn to change from open to shut positions. This makes this kind of plug valve a quarter-turn valve. There is often a mechanism limiting motion of the handle to a quarter turn, but not in glass stopcocks.
Slightly conically tapered metal (often brass) plug valves are often used as simple shut-off valves in household natural gas
lines.
It is also possible for a plug valve to have more than two ports. In a 3-way plug valve, flow from one port could be directed to either the second or third port. A 3-way plug valve could also be designed to shift flow between ports 1 and 2, 2 and 3, or 1 and 3, and possibly even connect all three ports together. The flow-directing possibilities in multi-port plug valves are similar to the possibilities in corresponding multi-port ball valves or corresponding multi-port valves with a rotor. An additional possibility in plug valves is to have one port on one side of the plug valve and two ports on the other side, with two diagonal and parallel fluid pathways inside the plug. In this case the plug can be rotated 180° to connect the port on the one side to either of the two ports on the other side.
Stopcocks used in laboratory glassware are typically forms of conically tapered plug valves. When fused with the glassware, the valve bodies are made of glass. Otherwise, they can be made of an inert plastic such as Teflon. The plugs can be made of a similar plastic or glass. When the plug is made of glass, the handle and plug are fused together in one piece out of glass. When glass is used for both the stopcock body and the plug, the contacting surfaces between them are special ground glass surfaces (see Laboratory glassware) often with stopcock grease in between. Special glass stopcocks are made for vacuum applications, such as in use with vacuum manifolds. Stopcock grease is always used in high vacuum applications to make the stopcock air-tight. Also if the plug valve is "locked" from being in the open or closed position for an extended amount of time lubricant can be added through the greaser with the valve in service.
Other Information:
Valve Test: 100% quality tested before delivery
Valve Guarantee: 18 months after shipments or 12 months after installed
Valve Delivery: 3 - 45 days
Valve Sample: Sample Available by DOMOS VALVE
Valve Color: Customer request
Valve Packing: Plywood BOX for Ball Valve
MOQ: 1 Set
Place of Origin: Zhejiang, China (Mainland)
Delivery Detail: Shipped in 15-30 days after payment
Port: Shanghai Or Ningbo
Payment Terms: L/C,D/A,D/P,T/T, Western Union
Manufacturing Technique
Advantage of domos plug valve
DOMOS PLUG VALVE
Plug valves are valves with cylindrical or conically tapered "plugs" which can be rotated inside the valve body to control flow through the valve. The plugs in plug valves have one or more hollow passageways going sideways through the plug, so that fluid can flow through the plug when the valve is open. Plug valves are simple and often economical.
When the plug is conically tapered, the stem/handle is typically attached to the larger diameter end of the plug. Plug valves
usually do not have bonnets but often have the end of the plug with the handle exposed or mostly exposed to the outside. In such cases, there is usually not much of a stem. The stem and handle often come in one piece, often a simple, approximately L-shaped handle attached to the end of the plug. The other end of the plug is often exposed to the outside of the valve too, but with a mechanism that retains the plug in the body.
The simplest and most common general type of plug valve is a 2-port valve with two positions: open to allow flow, and shut (closed) to stop flow. Ports are openings in the valve body through which fluid can enter or leave. The plug in this kind of valve has one passageway going through it. The ports are typically at opposite ends of the body; therefore, the plug is rotated a fourth of a full turn to change from open to shut positions. This makes this kind of plug valve a quarter-turn valve. There is often a mechanism limiting motion of the handle to a quarter turn, but not in glass stopcocks.
Slightly conically tapered metal (often brass) plug valves are often used as simple shut-off valves in household natural gas lines
The main type are soft sealed plug valve and metal sealed plug valve.Non-lubricated sleeve plug valve,oil-lubricated plug
valve,pressure balance plug valve are regular type.
Advantages
* Simple design with few parts
* Quick to open or close
* inline maintenance possible
* Offers minimal resistance to flow
* Provides reliable leak-tight service
* Multiple port design helps reduce the number of valves needed and permits a change in a flow direction
When the plug is conically tapered, the stem/handle is typically attached to the larger diameter end of the plug. Plug valves
usually do not have bonnets but often have the end of the plug with the handle exposed or mostly exposed to the outside. In such cases, there is usually not much of a stem. The stem and handle often come in one piece, often a simple, approximately L-shaped handle attached to the end of the plug. The other end of the plug is often exposed to the outside of the valve too, but with a mechanism that retains the plug in the body.
The simplest and most common general type of plug valve is a 2-port valve with two positions: open to allow flow, and shut (closed) to stop flow. Ports are openings in the valve body through which fluid can enter or leave. The plug in this kind of valve has one passageway going through it. The ports are typically at opposite ends of the body; therefore, the plug is rotated a fourth of a full turn to change from open to shut positions. This makes this kind of plug valve a quarter-turn valve. There is often a mechanism limiting motion of the handle to a quarter turn, but not in glass stopcocks.
Slightly conically tapered metal (often brass) plug valves are often used as simple shut-off valves in household natural gas lines
The main type are soft sealed plug valve and metal sealed plug valve.Non-lubricated sleeve plug valve,oil-lubricated plug
valve,pressure balance plug valve are regular type.
Advantages
* Simple design with few parts
* Quick to open or close
* inline maintenance possible
* Offers minimal resistance to flow
* Provides reliable leak-tight service
* Multiple port design helps reduce the number of valves needed and permits a change in a flow direction
Product packaging
Delivery Details : 3~45 days after receiving the payment
Packing Details : Inner Package: bubble bags + plastic cover
Outer Package: plywoodbox with dryer inside
Outer Package: plywoodbox with dryer inside
Product Paramenters
Company Profile
FAQ
Q: Are you trading company or manufacturer ?
A: We are a factory.
Q:What certification do you have?
A:we have API,CE& ISO certification.
Q: How long is your delivery time?
A: Generally it is 3-10 days if the goods are in stock. or it is 15- 45days if goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer sample before ordering but the client need to pay the cost of freight.And the sample’s cost could be deducted in your following order.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100%TT in advance.Payment＞3000USD,30% T/T in advance ,balance before shipment.
Q:How to place the order?
A:You could send emails to info@domosvalve.com directly or contact us on Alibaba chat now.We could accept trial order.
Q:How to contact us?
A:WENZHOU DOMOS FLUID EQUIPMENT CO.,LTD
Sales: Cowin wang
E-mail: info@domosvalve.com
Tel: 86-577-55576918
Fax: 86-577-55576929
Skype: cowinwang
Wechat:cowin001
Mob/WhatApp: +86-15205771013
Website:
