Butterfly valve wafer type triple eccentric type carbon steel stainless steel with pneumatic actuator mariposa valvulas
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
API6D BS1868 SWING CHECK VALVE 18inch 600lb carbon steel body non slam check valve with heavy duty valvulas de control
-
EN593 Butterfly valve wafer type bicentric carbon steel stainless steel with pneumatic actuator mariposa valvulas
-
API6D API608 ISO BS DIN Stainless Steel FLOATING BALL VALVES Manual Oil Industrial Floating ball valve bola valvulas
-
ASTM A351 CF3M CF8M SS304 SS316L Stainless Steel Materials Water Oil Y TYPE STRAINER HIGH PRESSURE 600LB 900LB 1500LB
-
ASTM A351 CF3M SS304 SS316L Japanese standard JIS 10K Stainless Steel Materials Water Oil Y TYPE STRAINER
-
Y Type Strainer Manual operation Mesh Copper B62 C95800 body materials BW End
Product Description
Products Description

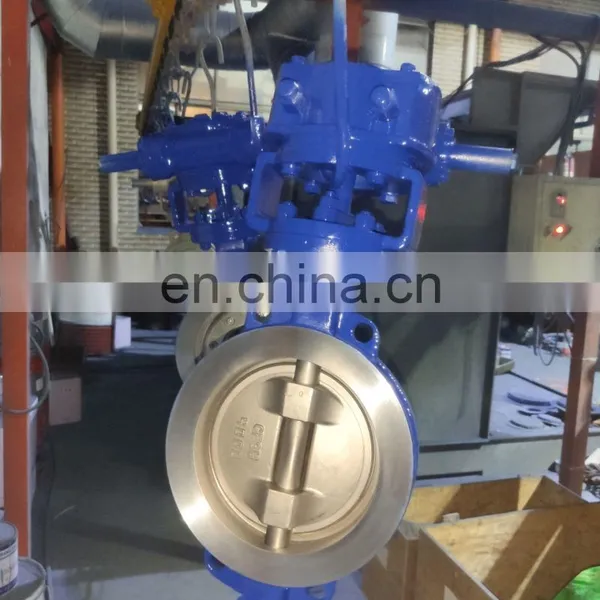

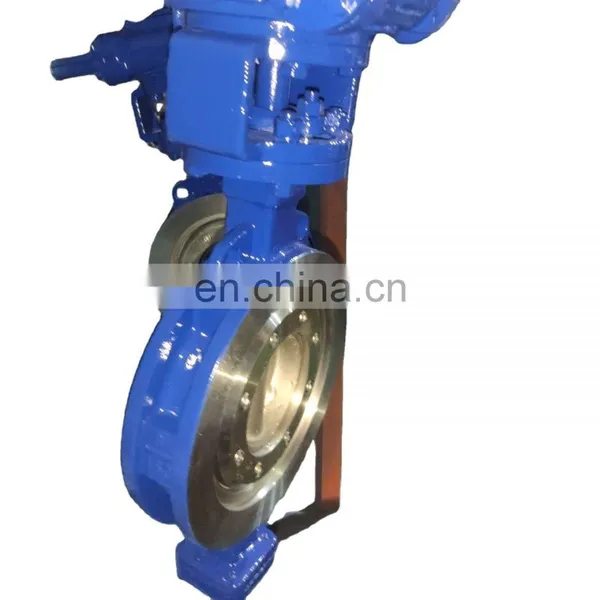

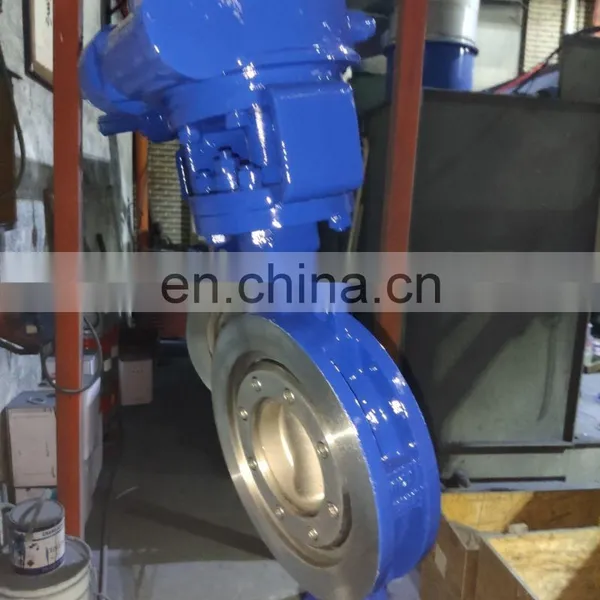

DOMOS VALVE INDUSTRIAL VALVE SERIESGear actuated Wafer type butterfly valve triple eccentric type
Butterfly valve 8” triple offset / Wafer type /Design API609/ 150 lbs / Body material ASTM A216 WCB / Disc materials A351 CF8M/ Stem materials SS 316 / Seat material PTFE / Work temperature -25°C+180°C / Gear box operated
Brand: DMS ,DPV,DHV,POWELL etc.
Size Range: 2"-60"
Pressure Rating: 150lb-2500lb,PN6-PN160
Material: A216 WCB, A351 CF3, CF8, CF3M, CF8M, A995 4A,
5A, A352 LCB, LCC, LC2,WCC,WC5,C5,WC6,WC9,WC11,WC12,),CD-4MCU,SS2205 . Monel, Inconel, Hastelloy B61,B62,copper,Bronze etc.
Temperature Range: -29°C~500°C
Applicable Standards:
Design: API600,BS,DIN，ASME B16.34
Face to face: ASME B16.10
End Flanges: ASME B16.5/ASME B16.47
Butt welded ends: ASME B16.25
Fire Safety: API607,API6A
Inspection and test: API 598,API6D
Other Information:
Valve Test: 100% quality tested before delivery
Valve Guarantee: 18 months after shipments or 12 months after installed
Valve Delivery: 3 - 45 days
Valve Sample: Sample Available by DOMOS VALVE
Valve Color: Customer request
Valve Packing: Plywood BOX for Ball Valve
MOQ: 1 Set
Place of Origin: Zhejiang, China (Mainland)
Delivery Detail: Shipped in 15-30 days after payment
Port: Shanghai Or Ningbo
Payment Terms: L/C,D/A,D/P,T/T, Western Union
Size Range: 2"-60"
Pressure Rating: 150lb-2500lb,PN6-PN160
Material: A216 WCB, A351 CF3, CF8, CF3M, CF8M, A995 4A,
5A, A352 LCB, LCC, LC2,WCC,WC5,C5,WC6,WC9,WC11,WC12,),CD-4MCU,SS2205 . Monel, Inconel, Hastelloy B61,B62,copper,Bronze etc.
Temperature Range: -29°C~500°C
Applicable Standards:
Design: API600,BS,DIN，ASME B16.34
Face to face: ASME B16.10
End Flanges: ASME B16.5/ASME B16.47
Butt welded ends: ASME B16.25
Fire Safety: API607,API6A
Inspection and test: API 598,API6D
Other Information:
Valve Test: 100% quality tested before delivery
Valve Guarantee: 18 months after shipments or 12 months after installed
Valve Delivery: 3 - 45 days
Valve Sample: Sample Available by DOMOS VALVE
Valve Color: Customer request
Valve Packing: Plywood BOX for Ball Valve
MOQ: 1 Set
Place of Origin: Zhejiang, China (Mainland)
Delivery Detail: Shipped in 15-30 days after payment
Port: Shanghai Or Ningbo
Payment Terms: L/C,D/A,D/P,T/T, Western Union
Advantage of butterfly valve
Butterfly Valves
At present, as an equipment used for the on-off and flow control of pipeline, the centerline or called concentric type butterfly valve has been widely used in many fields such as petroleum, chemical industry, metallurgy, hydropower. In the well-known butterfly valve technology, its sealing mostly adopts the sealing structure with the materials in rubber, polytetrafluoroethylene etc. Due to the structural limitation, it cannot withstand high temperature and high pressure, and not resistant to corrosion and wear.
The structure feature of the centerline butterfly valve is that the shaft center of stem, the center of the disc and the center of the body are in the same position. The structure is simple and the manufacture is convenient.
Double or Triple eccentric butterfly valves are widely used in metallurgy, electric power, petrochemical industry, water supply and drainage and municipal construction, etc. for regulating flow and conveying fluid. The material can be cast iron, cast steel,stainless steel.
The triple eccentric butterfly valves can withstand pressure up to 2500lbs, and temperature between -196 ℃ and 700 ℃. And it can achieve zero leakage and the regulation ratio is as high as 100:1. That's to say, in all kinds of harsh and critical process control pipelines, whether it is used as a on-off valve or a control valve, as long as it is properly selected, the butterfly valve can be used with safety. And what's more, it's with low cost.
Butterfly Valves are designed to regulate flow, but with limited control capability. Butterfly valves are easily operated by rotating a handle 90 degrees. It consists of a metal disc in the body of the valve which is positioned perpendicular to the flow in the closed position. Regulation of liquid flow can be allowed through intermediate rotations. Butterfly valves are configured to operate electronically, manually or pneumatically.
They can be used for a broad range of applications within water supply, wastewater treatment, fire protection and gas supply, in the chemical and oil industries, in fuel handling systems, power generation etc. These valves can be operated by handles, gears or actuators according to specific needs.
Advantages
• Butterfly valves are very accurate, which makes them advantageous in industrial applications.
• They are quite reliable and require very little maintenance.
• They have the capability to throttle flow.
• They can be installed or removed without pipe system dislocation
At present, as an equipment used for the on-off and flow control of pipeline, the centerline or called concentric type butterfly valve has been widely used in many fields such as petroleum, chemical industry, metallurgy, hydropower. In the well-known butterfly valve technology, its sealing mostly adopts the sealing structure with the materials in rubber, polytetrafluoroethylene etc. Due to the structural limitation, it cannot withstand high temperature and high pressure, and not resistant to corrosion and wear.
The structure feature of the centerline butterfly valve is that the shaft center of stem, the center of the disc and the center of the body are in the same position. The structure is simple and the manufacture is convenient.
Double or Triple eccentric butterfly valves are widely used in metallurgy, electric power, petrochemical industry, water supply and drainage and municipal construction, etc. for regulating flow and conveying fluid. The material can be cast iron, cast steel,stainless steel.
The triple eccentric butterfly valves can withstand pressure up to 2500lbs, and temperature between -196 ℃ and 700 ℃. And it can achieve zero leakage and the regulation ratio is as high as 100:1. That's to say, in all kinds of harsh and critical process control pipelines, whether it is used as a on-off valve or a control valve, as long as it is properly selected, the butterfly valve can be used with safety. And what's more, it's with low cost.
Butterfly Valves are designed to regulate flow, but with limited control capability. Butterfly valves are easily operated by rotating a handle 90 degrees. It consists of a metal disc in the body of the valve which is positioned perpendicular to the flow in the closed position. Regulation of liquid flow can be allowed through intermediate rotations. Butterfly valves are configured to operate electronically, manually or pneumatically.
They can be used for a broad range of applications within water supply, wastewater treatment, fire protection and gas supply, in the chemical and oil industries, in fuel handling systems, power generation etc. These valves can be operated by handles, gears or actuators according to specific needs.
Advantages
• Butterfly valves are very accurate, which makes them advantageous in industrial applications.
• They are quite reliable and require very little maintenance.
• They have the capability to throttle flow.
• They can be installed or removed without pipe system dislocation
Product packaging
Delivery Details : 3~45 days after receiving the payment
Packing Details : Inner Package: bubble bags + plastic cover
Outer Package: plywoodbox with dryer inside
Outer Package: plywoodbox with dryer inside
Manufacturing Technique
Product Paramenters
Company Profile
FAQ
Q: Are you trading company or manufacturer ?
A: We are a factory.
Q:What certification do you have?
A:we have API,CE& ISO certification.
Q: How long is your delivery time?
A: Generally it is 3-10 days if the goods are in stock. or it is 15- 45days if goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer sample before ordering but the client need to pay the cost of freight.And the sample’s cost could be deducted in your following order.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100%TT in advance.Payment＞3000USD,30% T/T in advance ,balance before shipment.
Q:How to place the order?
A:You could send emails to info@domosvalve.com directly or contact us on Alibaba chat now.We could accept trial order.
Q:How to contact us?
A:WENZHOU DOMOS FLUID EQUIPMENT CO.,LTD
Sales: Cowin wang
E-mail: info@domosvalve.com
Tel: 86-577-55576918
Fax: 86-577-55576929
Skype: cowinwang
Wechat:cowin001
Mob/WhatApp: +86-15205771013
Website:
