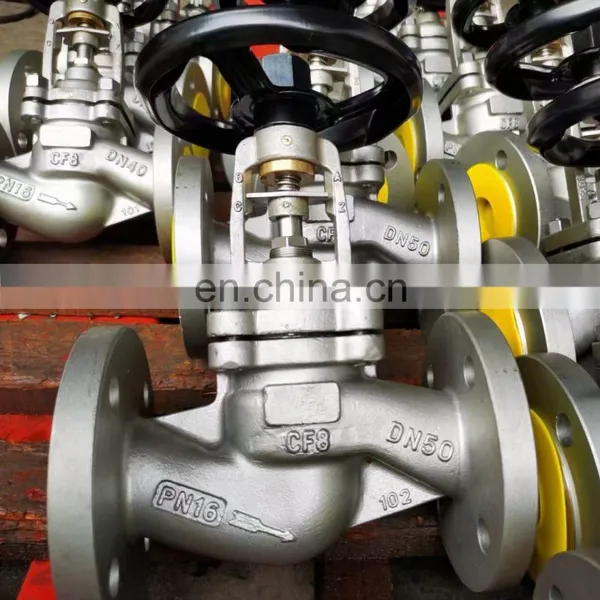

DIN Bellow Seal Globe Valves Stainless Steel CF8 CF8M toxic circumstance globo valvulas Manual Low Pressure Bellow Seal
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
Forged steel check valve swing type integral flange 150lb 300lb 600lb 900lb 1500lb 2500lb
-
Butterfly valve wafer type triple eccentric type carbon steel stainless steel with pneumatic actuator mariposa valvulas
-
API6D BS1868 SWING CHECK VALVE 18inch 600lb carbon steel body non slam check valve with heavy duty valvulas de control
-
EN593 Butterfly valve wafer type bicentric carbon steel stainless steel with pneumatic actuator mariposa valvulas
-
API6D API608 ISO BS DIN Stainless Steel FLOATING BALL VALVES Manual Oil Industrial Floating ball valve bola valvulas
-
ASTM A351 CF3M CF8M SS304 SS316L Stainless Steel Materials Water Oil Y TYPE STRAINER HIGH PRESSURE 600LB 900LB 1500LB
Product Description
Product Description
Specification
item | value |
Warranty | 3 years |
Type | DIN bellow sealed globe valves |
Certification | ISO,CE,API, Bellow sealed type flange connection |
Customized support | ODM, OEM |
Place of Origin | China |
Zhejiang | |
DOMOS VALVE,DMS VALVE,European brands OEM service | |
flanged | |
Application | General |
Temperature of Media | Medium Temperature |
Power | Manual |
Media | Gas |
1/2-32inch | |
Structure | Stop |
Stem | stainless steel belows |
Type | bellow sealed globe valves |
Product name | DIN bellow sealed globe valves |
Material | GS C25 |
Standard or Nonstandard | DIN,API |
Connection | Flange connection |
Size | 1/2inch-24inch |
Color | blue or Ral No |
Medium | Toxic gas or hazardous liquid |
Warranty | 18months after shipment |
Packing & Delivery
Standard export packing. Can Be packed according to your needs.
Products Description
DOMOS VALVE INDUSTRIAL VALVE SERIES Stainless steel Bellow seal globe valve
Technical Specification
Brand: DMS ,DPV,DHV,POWELL etc.
Size Range: 2"-24"
Pressure Rating: 150lb-2500lb,PN6-PN160
Material: A216 WCB, A351 CF3, CF8, CF3M, CF8M, A995 4A,
5A, A352 LCB, LCC, LC2,WCC,WC5,C5,WC6,WC9,WC11,WC12,),CD-4MCU,SS2205 . Monel, Inconel, Hastelloy B61,B62,copper,Bronze etc.
Temperature Range: -29°C~500°C
Applicable Standards:
Design: API6D,BS1868,DIN，ASME B16.34
Face to face: ASME B16.10
End Flanges: ASME B16.5/ASME B16.47
Butt welded ends: ASME B16.25
Fire Safety: API607,API6A
Inspection and test: API 598,API6D
1. The bellows sealed globe valve has no leakage and is applied to high-risk medium.
2. The regular globe valve is sealed with packing, and a slide will occur between the valve stem and packing so that the valve is easy to leak at low temperature.
3. Bellows sealed globe valves use closed bellows which can be stretched and compressed to replace packing seals, effectively preventing leakage caused by packing losses. Generally, these valves are used for transmission of the medium with strong permeability. For instance, there is usually no leakage occuring to bellows seal globe valves for the hydrogen system, as long as bellows are not damaged. However, the common globe valve is sealed with packing, which is easy to cause leakage.
4. The bellows sealed globe valve can cut off the flow of media and the opening or closing stroke of the valve stem is relatively short. Because the change of the seat opening is proportional to the stroke of the disc, the valve is an ideal choice for flow regulation. Therefore, this type of valve is very suitable for regulating or cutting off the flow, and for throttling.
Advantages of bellows sealed globe valves
1. Double seals (bellows+packing). If bellows fails, valve stem packing will avoid leakage. And the sealing meets international standards.
2. No fluid loss and energy loss reduction.
3. Long service life, reducing maintenance frequency and operating costs.
4. The robust bellows seal ensures zero leakage of the valve stem and provides maintenance-free.
5. PTFE soft seal materials are used for the valve seat for gas media to improve the sealing of the valve.
6. The valve seat with high temperature resistance (≤425℃) adopts the conical surface and hard sealing.
There is no comparison in the level of safety and the ability to control emissions of hazardous chemicals, between a well designed Bellows Seal globe valve and your standard ball and plug valves. Any chemical producer who wants to have the safety of its workers at the top of its agenda, should always be looking to fit the best possible protection against all leaks of dangerous hazardous chemicals. Bellows Sealed Valve design have been accepted as the best practical method for ensuring repeatable tight shut off and preventing leaks via valve spindles and body joints. There are good reasons why Eur Chlor members use Bellows Sealed Globe Valves.
Other Information:
Valve Test: 100% quality tested before delivery
Valve Guarantee: 18 months after shipments or 12 months after installed
Valve Delivery: 3 - 45 days
Valve Sample: Sample Available by DOMOS VALVE
Valve Color: Customer request
Valve Packing: Plywood BOX for Ball Valve
MOQ: 1 Set
Place of Origin: Zhejiang, China (Mainland)
Delivery Detail: Shipped in 15-30 days after payment
Port: Shanghai Or Ningbo
Payment Terms: L/C,D/A,D/P,T/T, Western Union
Brand: DMS ,DPV,DHV,POWELL etc.
Size Range: 2"-24"
Pressure Rating: 150lb-2500lb,PN6-PN160
Material: A216 WCB, A351 CF3, CF8, CF3M, CF8M, A995 4A,
5A, A352 LCB, LCC, LC2,WCC,WC5,C5,WC6,WC9,WC11,WC12,),CD-4MCU,SS2205 . Monel, Inconel, Hastelloy B61,B62,copper,Bronze etc.
Temperature Range: -29°C~500°C
Applicable Standards:
Design: API6D,BS1868,DIN，ASME B16.34
Face to face: ASME B16.10
End Flanges: ASME B16.5/ASME B16.47
Butt welded ends: ASME B16.25
Fire Safety: API607,API6A
Inspection and test: API 598,API6D
The design of the bellows seal globe valve is better than that of the ordinary globe valve. So, what are the advantages of bellows seal globe valves compared with ordinary ones?
1. The bellows sealed globe valve has no leakage and is applied to high-risk medium.
2. The regular globe valve is sealed with packing, and a slide will occur between the valve stem and packing so that the valve is easy to leak at low temperature.
3. Bellows sealed globe valves use closed bellows which can be stretched and compressed to replace packing seals, effectively preventing leakage caused by packing losses. Generally, these valves are used for transmission of the medium with strong permeability. For instance, there is usually no leakage occuring to bellows seal globe valves for the hydrogen system, as long as bellows are not damaged. However, the common globe valve is sealed with packing, which is easy to cause leakage.
4. The bellows sealed globe valve can cut off the flow of media and the opening or closing stroke of the valve stem is relatively short. Because the change of the seat opening is proportional to the stroke of the disc, the valve is an ideal choice for flow regulation. Therefore, this type of valve is very suitable for regulating or cutting off the flow, and for throttling.
Advantages of bellows sealed globe valves
1. Double seals (bellows+packing). If bellows fails, valve stem packing will avoid leakage. And the sealing meets international standards.
2. No fluid loss and energy loss reduction.
3. Long service life, reducing maintenance frequency and operating costs.
4. The robust bellows seal ensures zero leakage of the valve stem and provides maintenance-free.
5. PTFE soft seal materials are used for the valve seat for gas media to improve the sealing of the valve.
6. The valve seat with high temperature resistance (≤425℃) adopts the conical surface and hard sealing.
There is no comparison in the level of safety and the ability to control emissions of hazardous chemicals, between a well designed Bellows Seal globe valve and your standard ball and plug valves. Any chemical producer who wants to have the safety of its workers at the top of its agenda, should always be looking to fit the best possible protection against all leaks of dangerous hazardous chemicals. Bellows Sealed Valve design have been accepted as the best practical method for ensuring repeatable tight shut off and preventing leaks via valve spindles and body joints. There are good reasons why Eur Chlor members use Bellows Sealed Globe Valves.
Other Information:
Valve Test: 100% quality tested before delivery
Valve Guarantee: 18 months after shipments or 12 months after installed
Valve Delivery: 3 - 45 days
Valve Sample: Sample Available by DOMOS VALVE
Valve Color: Customer request
Valve Packing: Plywood BOX for Ball Valve
MOQ: 1 Set
Place of Origin: Zhejiang, China (Mainland)
Delivery Detail: Shipped in 15-30 days after payment
Port: Shanghai Or Ningbo
Payment Terms: L/C,D/A,D/P,T/T, Western Union
Manufacturing Technique
Advantage of domos bellow sealed globe valve

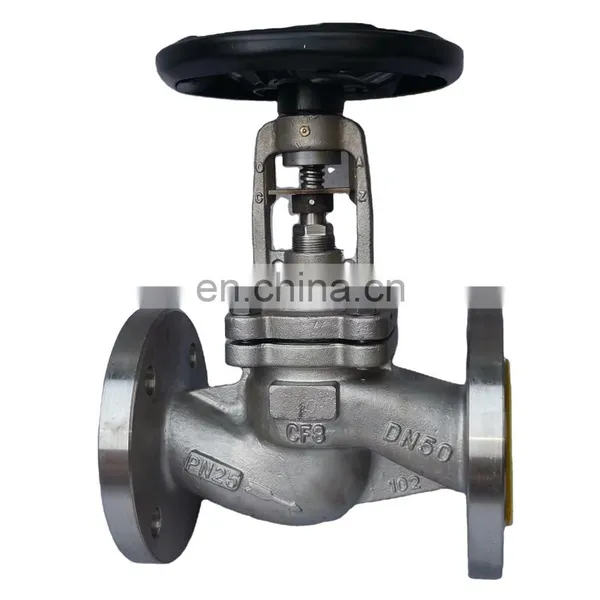

DOMOS BELLOW SEALED GLOBE VALVE
DOMOS Bellow sealed globe valve is widely used inhazardous chemicals, hot oil system, steam system, hot and cold water system etc.
The specification is Design standard according to DIN 3356,Face to face dimension: DIN 3202,Flanged ends: DIN 2543-2545,Test &inspection: DIN 3230.
Advantage
1.Bellow seal element. The key part of bellow sealed globe valves is metal bellow. It is the connection between cover and stem
with automatic roll welding. The metal bellow can keep the stem part no leakage.
2.Benefit from the con and streamline shape design, the disc has a reliable seal and longer service life.
3.Double seal design(bellows+packing). Bellow and packing can protect against leakage and provide a excellent seal.
4.Grease nipple. It can direct lubricate the stem, nut and sleeve.
5.Ergonomic hand wheel. It provide longer service life and easier operation.
The specification is Design standard according to DIN 3356,Face to face dimension: DIN 3202,Flanged ends: DIN 2543-2545,Test &inspection: DIN 3230.
Advantage
1.Bellow seal element. The key part of bellow sealed globe valves is metal bellow. It is the connection between cover and stem
with automatic roll welding. The metal bellow can keep the stem part no leakage.
2.Benefit from the con and streamline shape design, the disc has a reliable seal and longer service life.
3.Double seal design(bellows+packing). Bellow and packing can protect against leakage and provide a excellent seal.
4.Grease nipple. It can direct lubricate the stem, nut and sleeve.
5.Ergonomic hand wheel. It provide longer service life and easier operation.
Product packaging
Delivery Details : 3~45 days after receiving the payment
Packing Details : Inner Package: bubble bags + plastic cover
Outer Package: plywoodbox with dryer inside
Outer Package: plywoodbox with dryer inside
Product Paramenters
Company Profile
FAQ
Q: Are you trading company or manufacturer ?
A: We are a factory.
Q:What certification do you have?
A:we have API,CE& ISO certification.
Q: How long is your delivery time?
A: Generally it is 3-10 days if the goods are in stock. or it is 15- 45days if goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer sample before ordering but the client need to pay the cost of freight.And the sample’s cost could be deducted in your following order.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100%TT in advance.Payment＞3000USD,30% T/T in advance ,balance before shipment.
Q:How to place the order?
A:You could send emails to info@domosvalve.com directly or contact us on Alibaba chat now.We could accept trial order.
Q:How to contact us?
A:WENZHOU DOMOS FLUID EQUIPMENT CO.,LTD
Sales: Cowin wang
E-mail: info@domosvalve.com
Tel: 86-577-55576918
Fax: 86-577-55576929
Skype: cowinwang
Wechat:cowin001
Mob/WhatApp: +86-15205771013
