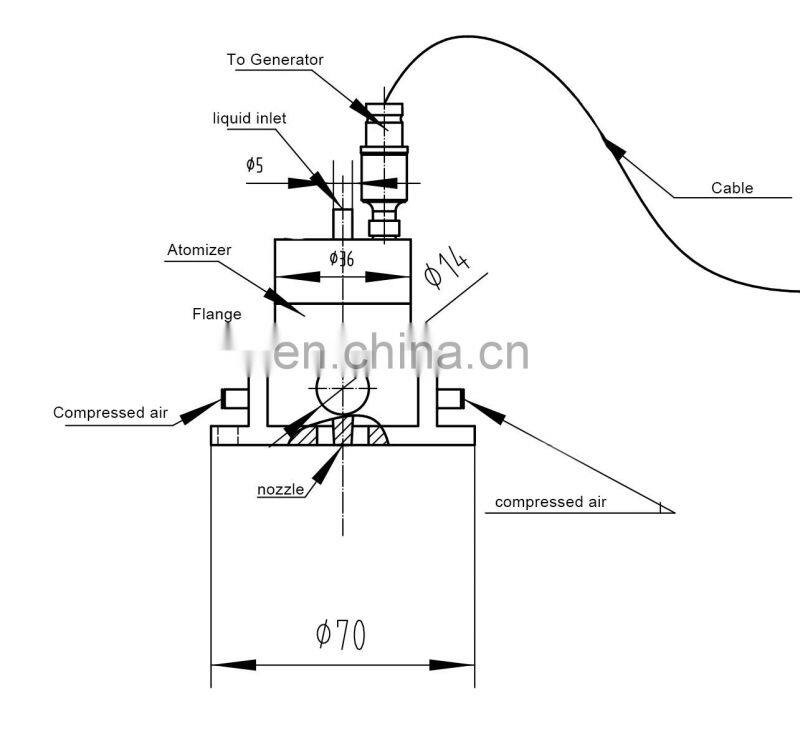

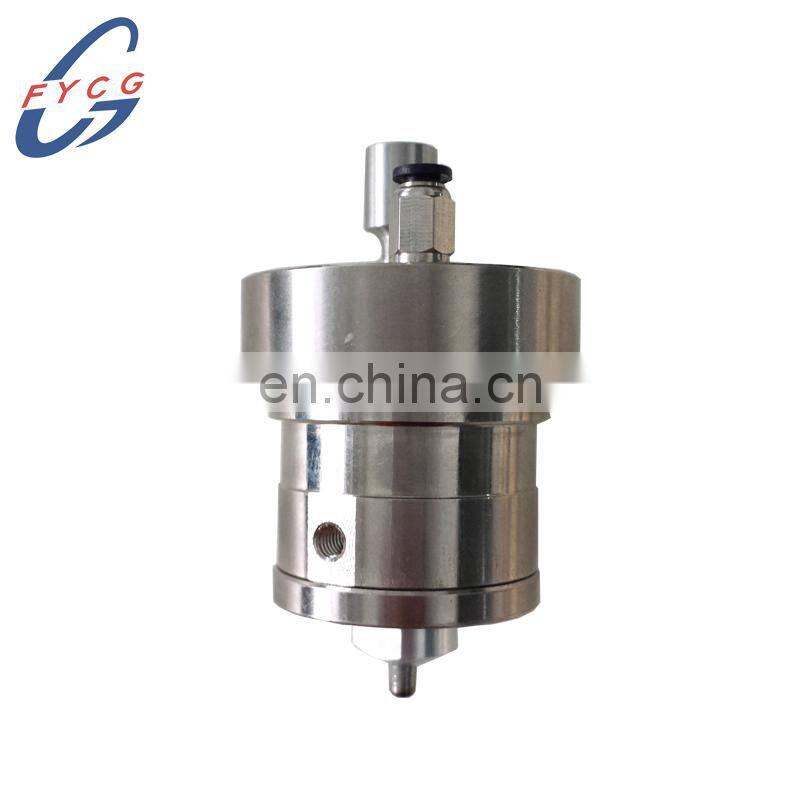

Compressed Air supplied New Design Ultrasonic Atomizers
Ultrasonic atomization is a very conventional method to produce sprays of very small droplets. Resulting droplet size distributions are very narrow and the mean diameter is essentially only controlled by the excitation frequency.
Main Features
1. High mechanical quality and excellent electro-acoustic conversion efficiency, providing a high output amplitude.
2. Piezoelectric element offer a high speed of vibration . Through bolt-on mounting, mechanical intensity and amplitude have been improved.
3. Having steady output amplitude even the load markedly changed.
4. Extended using temperature, ensuring good amplitude linearity. Lower resonant impedance, ensuring high conversion efficiency.
5. Bolt-on mounting gives the fast, easy installation and high reliability.
Parameter
| Model | YP-W63 | YP-W59 | YP-W55 |
| Frequency | 15 Khz | 30 Khz | 50 Khz |
| Max Atomization Volume | 150 L/H | 70 L/H | 10 L/H |
| Average Particle Diameter Of Fog | 62 μm | 39 μm | 18 μm |
| Power Consumption |
0.001 Degrees/Kg |
0.01 Degrees/Kg |
|
| Atomization Head Structure | Horn |
Cylindrical |
|
| Power | 500 W | 100 W | 30 W |
| The application of atomizing media |
Ordinary water, a variety of liquid substances, chemical liquid, a variety of oil mucus, metal melt and so on |
||
Use |
Atomization humidification, chemical mixing, production, spray drying granulation, paint spraying, metal milling and so on |
||
Our Company Honor:
Quality & Inspection
•Cooperated with good reputation suppliers.
•100% check spare parts quality which produced from matching suppliers.
•QC checking each step from spare parts to production on the full of line.
Packing
