15-50K Humidifier Piezoelectric Transducer/Ultrasonic Spray Atomizer
Ultrasonic Spray technology is used to coat practically any substrate shape, size or surface with uniform micron thick coatings, and even nanocoating thicknesses.
In addition, ultrasonic technology is used for :
1. Moisturizing
2. Spray Drying
3. Continuous substrate coating
4. Granulating
5. Fine-line spraying
6. Paint spraying
7. Mixing liquid
Feature
1.A major breakthrough in spray technology, you can spray a variety of liquids.
2.Low power consumption, the fog of great energy saving.
3.No plug, no abrasion, no noise, no pressure, no moving parts.
4.Can be any combination to meet the requirements of the spray volume.
5.The use of high-performance titanium and stainless steel.
Parameter
| Model | YP-W63 | YP-W61 | YP-W59 | YP-W57 | YP-W55 | YP-W51 |
| Frequency | 15 Khz | 20 Khz | 30 Khz | 40 Khz | 50 Khz | 60 Khz |
| Max Atomization Volume | 150 L/H | 100 L/H | 70 L/H | 10 L/H | 2 L/H | 0.5 L/H |
| Average Particle Diameter Of Fog | 62 μm | 51 μm | 39 μm | 32 μm | 28 μm | 20 μm |
| Power Consumption |
0.001 Degrees/Kg |
0.01 Degrees/Kg |
||||
| Atomization Head Structure | Horn |
Cylindrical |
||||
| Power | 500 W | 300 W | 100 W | 60 W | 30 W | 30 W |
| The application of atomizing media |
Ordinary water, a variety of liquid substances, chemical liquid, a variety of oil mucus, metal melt and so on |
|||||
Use |
Atomization humidification, chemical mixing, production, spray drying granulation, paint spraying, metal milling and so on |
|||||
The ultrasonic sytstem for Spraying/Humidifier is equipped with analogy generator, humidifier transducer+nozzle, the liquid will be connected with the inlet on the top of humidifier transducer, with the high frequency vibration of the piezoelectric ceramic inside of the transducer, the liquid will become fog and going out from the nozzle.

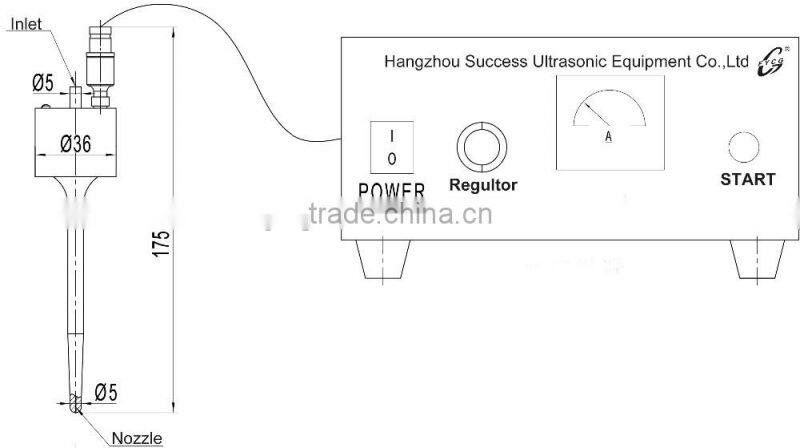

This is a simple drawing of 50KHz Ultrasonic Humidifier Transducer and Analog Generator
