Flat Type Ultrasonic Nozzle Machine Customized Solar Panel Atomizing Spray
Ultrasonic spraying machine is designed for glass, thin film batteries, touch screen, fuel cell, nano-materials such as the development of spraying equipment. Therefore, ultrasonic spraying machine is no waste of sputtering in the spraying process, which can save 80% of the solution, reduce the production cost and reduce the environmental pollution Environmental protection, the harm to the human body to a minimum.
Main Features
1. High mechanical quality and excellent electro-acoustic conversion efficiency, providing a high output amplitude.
2. Piezoelectric element offer a high speed of vibration . Through bolt-on mounting, mechanical intensity and amplitude have been improved.
3. Having steady output amplitude even the load markedly changed.
4. Extended using temperature, ensuring good amplitude linearity. Lower resonant impedance, ensuring high conversion efficiency.
5. Bolt-on mounting gives the fast, easy installation and high reliability.
Parameter

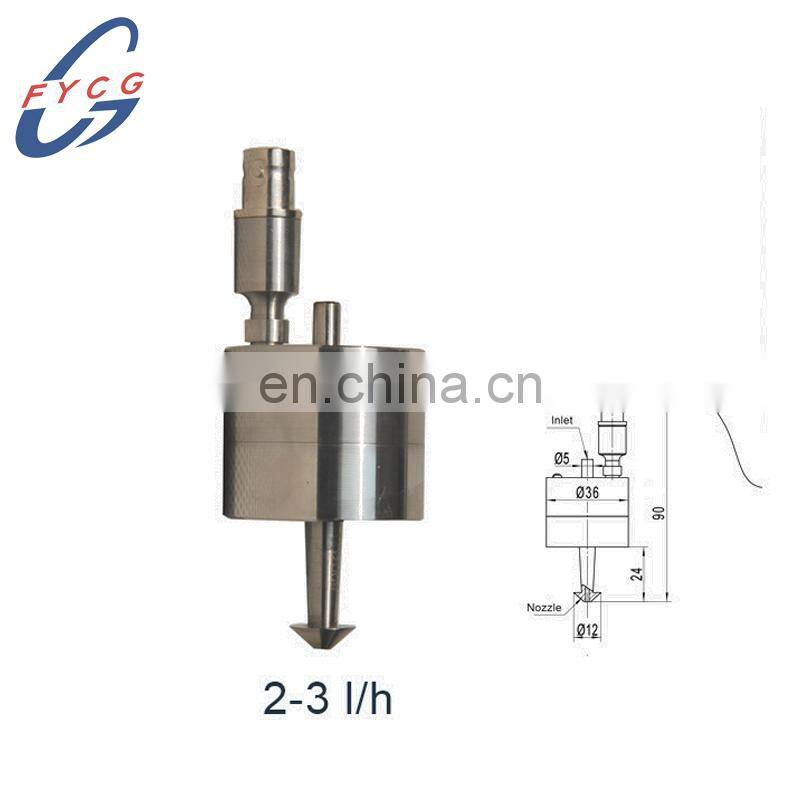

| Model | YP-W63 | YP-W59 | YP-W52 |
| Frequency | 15 Khz | 30 Khz | 50 Khz |
| Max Atomization Volume | 150 L/H | 70 L/H | 2-3 L/H |
| Average Particle Diameter Of Fog | 62 μm | 39 μm | 28 μm |
| Power Consumption |
0.001 Degrees/Kg |
0.01 Degrees/Kg |
|
| Atomization Head Structure | Horn |
Cylindrical |
|
| Power | 500 W | 100 W | 30 W |
| The application of atomizing media |
Ordinary water, a variety of liquid substances, chemical liquid, a variety of oil mucus, metal melt and so on |
||
Use |
Atomization humidification, chemical mixing, production, spray drying granulation, paint spraying, metal milling and so on |
||
Application:
Granulation / Spray Drying
Most of the time the solid particle mixture can be atomized atomization equipment, solid particles in the role of ultrasound will be dispersed in the atomization solution, or even thick mud, in the case of low-speed to the nozzle can also be Atomized. Ultrasonic atomization granulation equipment with high temperature drying furnace can be achieved within a short time milling and drying.
Paint
Ultrasonic spray (atomization) is the use of ultrasonic energy to the water or liquid to break up to form 18 μm to 100 μm size of small particles. A wide variety of coatings, chemical reagents, lubricants, particle suspensions, etc. can be atomized.
Nanomaterials
The nanoparticles are fine and uniform, and each nanoparticle is less segregated during the reaction process, so as to obtain the ultrafine nanoparticles with uniform composition, and the composition of the nano-particles produced by atomization is also controllable.

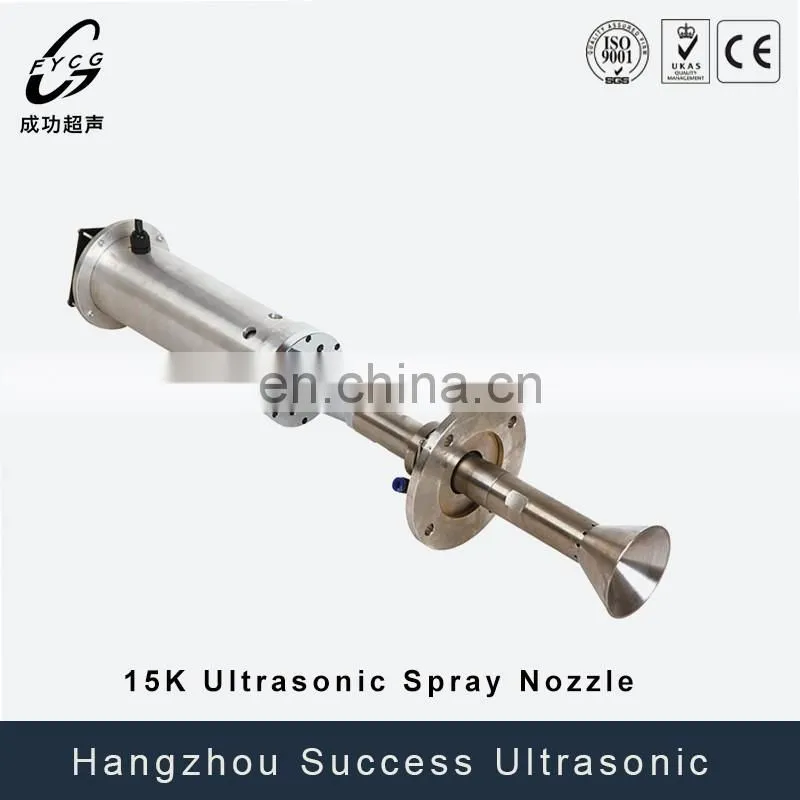

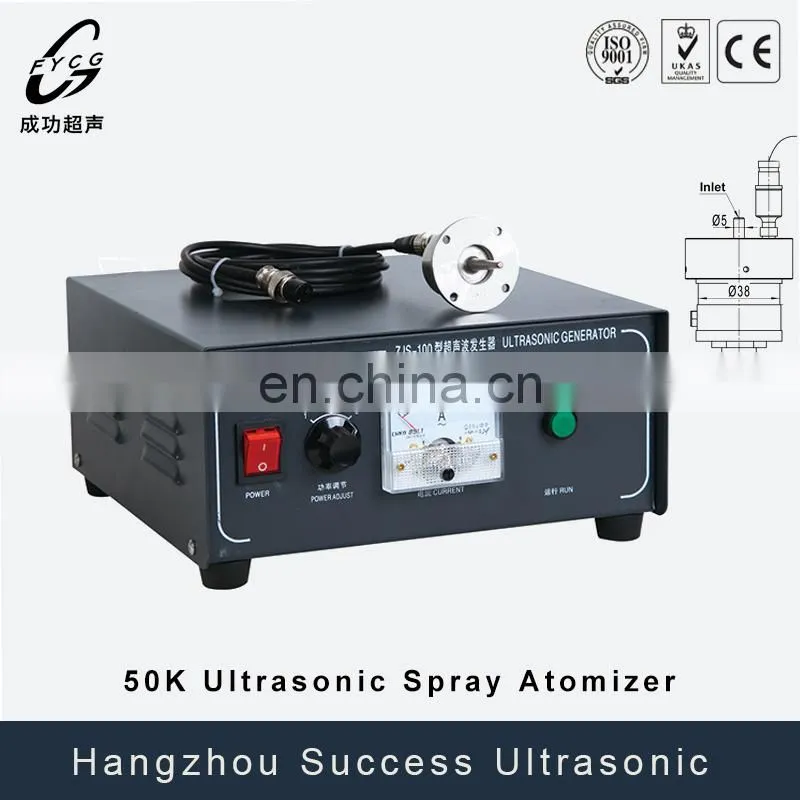

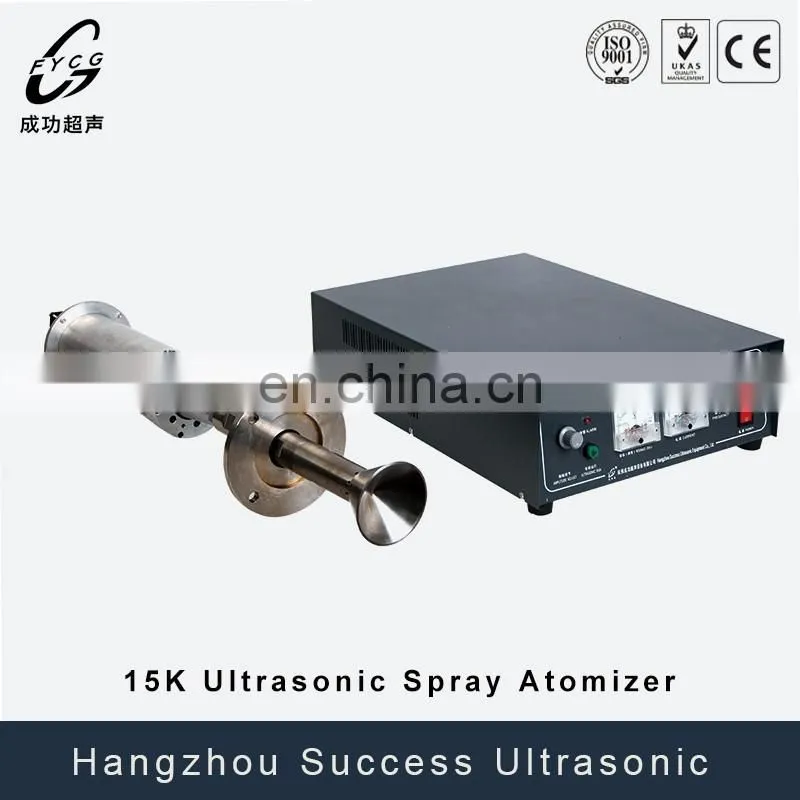

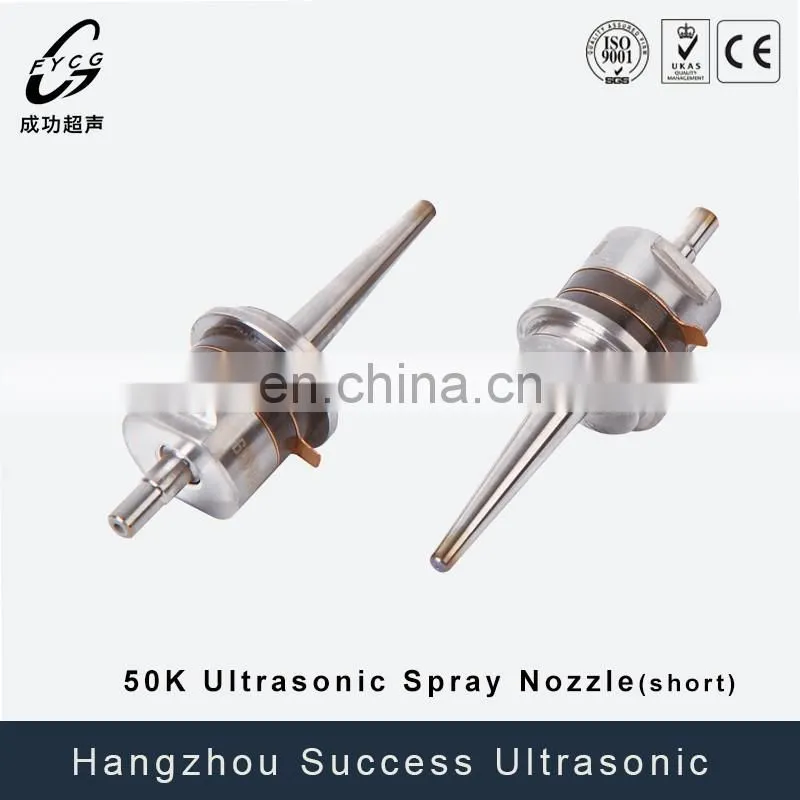

Other available types: for 15khz, 30khz and 50khz
Our Company Honor:
Quality & Inspection
•Cooperated with good reputation suppliers.
•100% check spare parts quality which produced from matching suppliers.
•QC checking each step from spare parts to production on the full of line.
Packing
