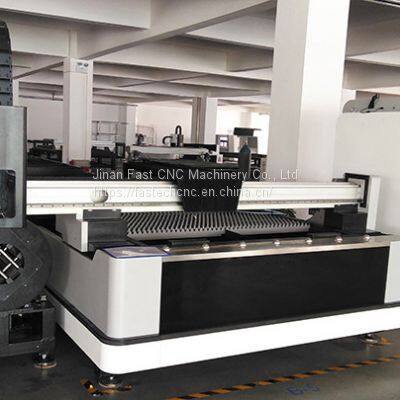

Jinan FAST CNC 3000W Fiber Laser Machine Aluminum Stainless Steel Sheet Metal Cutting Machine

Jinan FAST CNC 3000W Fiber Laser Machine Aluminum Stainless Steel Sheet Metal Cutting Machine thumbnail-1
Jinan FAST CNC 3000W Fiber Laser Machine Aluminum Stainless Steel Sheet Metal Cutting Machine thumbnail-2
Jinan FAST CNC 3000W Fiber Laser Machine Aluminum Stainless Steel Sheet Metal Cutting Machine thumbnail-3
Jinan FAST CNC 3000W Fiber Laser Machine Aluminum Stainless Steel Sheet Metal Cutting Machine photo-1
Jinan FAST CNC 3000W Fiber Laser Machine Aluminum Stainless Steel Sheet Metal Cutting Machine photo-2
Jinan FAST CNC 3000W Fiber Laser Machine Aluminum Stainless Steel Sheet Metal Cutting Machine photo-3
US$ 27000 - 35700 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
FAST
Place of Origin:
China
Model Number:
3015LNR
Contact Supplier Request Quote Chat Now
Jinan Fast CNC Machinery Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name FAST
Place of Origin China
Model Number 3015LNR
Certification Other, CE, ISO9002
After-sales Service Provided Engineers available to service machinery overseas
Condition New
Control Software CUYCUT
Cooling Mode Water Cooling
CNC or Not Yes
Cutting Speed 80m/min
Cutting Area 1500*3000mm
Cutting Thickness 300mm
Applicable Material Metal
Laser Type Fiber Laser

Jinan FAST 3000W Fiber Laser Machine Aluminum Stainless Steel Sheet Metal Cutting Machine

Jinan FAST CNC 3000W Fiber Laser Machine Aluminum Stainless Steel Sheet Metal Cutting Machine 0

ADVANTAGE

1. Aviation Aluminum Gantry

2. Cost-effective

3. Pneumatic chuck



TECHNICAL DATA

MODEL 3015LNR
Max. Processing Range 1500*3000mm
X-axis travel 1500mm
Y-axis travel 3000mm
Z-axis travel 300mm
X/Y/U axis positioning accuracy ±0.03mm
X/Y axis repeat positioning accuracy ±0.02mm
X/Y axis moving speed 80m/min
X/Y/U maximum acceleration 1.0G
Transmission type Dual drive rack
Motor power (0.85kw)*2
Pipe diameter range 20~220mm
Enclosed laser protection NO
(diameter of circumscribed circle)
Maximum pipe length 3m,6m
Chuck Pneumatic
Maximum load of chuck 200kg 35kg/m
Working platform load 1000kg
Lubrication type Automatic oiling
Power available 1000-3000w
Total power 1000W:15.8KW(41.5A)
1500W:17.7KW(46A)
2000W:19.6KW(51.5A)
Dimension 4050*5650*1860mm

Jinan FAST CNC 3000W Fiber Laser Machine Aluminum Stainless Steel Sheet Metal Cutting Machine 1

Jinan FAST CNC 3000W Fiber Laser Machine Aluminum Stainless Steel Sheet Metal Cutting Machine 2
Jinan FAST CNC 3000W Fiber Laser Machine Aluminum Stainless Steel Sheet Metal Cutting Machine 3
Jinan FAST CNC 3000W Fiber Laser Machine Aluminum Stainless Steel Sheet Metal Cutting Machine 4
Jinan FAST CNC 3000W Fiber Laser Machine Aluminum Stainless Steel Sheet Metal Cutting Machine 5
Jinan FAST CNC 3000W Fiber Laser Machine Aluminum Stainless Steel Sheet Metal Cutting Machine 6
Jinan FAST CNC 3000W Fiber Laser Machine Aluminum Stainless Steel Sheet Metal Cutting Machine 7
Jinan FAST CNC 3000W Fiber Laser Machine Aluminum Stainless Steel Sheet Metal Cutting Machine 8
Jinan FAST CNC 3000W Fiber Laser Machine Aluminum Stainless Steel Sheet Metal Cutting Machine 9
Jinan FAST CNC 3000W Fiber Laser Machine Aluminum Stainless Steel Sheet Metal Cutting Machine 10
Jinan FAST CNC 3000W Fiber Laser Machine Aluminum Stainless Steel Sheet Metal Cutting Machine 11



Jinan FAST CNC 3000W Fiber Laser Machine Aluminum Stainless Steel Sheet Metal Cutting Machine 12



Jinan FAST CNC 3000W Fiber Laser Machine Aluminum Stainless Steel Sheet Metal Cutting Machine 13

Jinan FAST CNC 3000W Fiber Laser Machine Aluminum Stainless Steel Sheet Metal Cutting Machine 14

WHY CHOOSE US

Jinan FAST CNC 3000W Fiber Laser Machine Aluminum Stainless Steel Sheet Metal Cutting Machine 15

COMPANY PROFILE

Jinan FAST CNC 3000W Fiber Laser Machine Aluminum Stainless Steel Sheet Metal Cutting Machine 16

WORKSHOP

Jinan FAST CNC 3000W Fiber Laser Machine Aluminum Stainless Steel Sheet Metal Cutting Machine 17

CUSTOMER VISIT

Jinan FAST CNC 3000W Fiber Laser Machine Aluminum Stainless Steel Sheet Metal Cutting Machine 18

FAQ

Jinan FAST CNC 3000W Fiber Laser Machine Aluminum Stainless Steel Sheet Metal Cutting Machine 19

CERTIFICATE

Jinan FAST CNC 3000W Fiber Laser Machine Aluminum Stainless Steel Sheet Metal Cutting Machine 20

PACKING AND SHIPPING

Jinan FAST CNC 3000W Fiber Laser Machine Aluminum Stainless Steel Sheet Metal Cutting Machine 21
