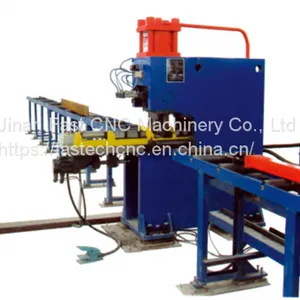

Economical Jinan FAST CNC Hydraulic Punching And Marking Machine For Angle Model YC160 In Steel Tower Industry
APPLICATION
The machine is the semi automatic special equipment used for angle steel marking & punching mainly in the field of angle steel tower industry.
COMPOSITION
This machine is mainly composed of infeeding conveyor, NC infeed carriage, punching unit, marking unit, unloading conveyor, as well as hydraulic, electrical and pneumatic systems etc.
FEATURES
High-performance all-round machine with extraordinary value, but at a very economical price.
CNC technology with servo motors in feeding.
Integrated with hydraulic, pneumatic and mechanical elements, which are imported world-class components.
Easy programming- can directly use the program data by sample software.
When editing, only need to input angles size, hole diameters, positions, and quantities by using CAD/CAM directly conversion. With function of self-diagnostic for failures.
Two gradient unloading units are used for preventing angles form being lifted by punching head.
Displaying the drawing of workpieces.
With self-diagnosis failure function.
TECHNICAL DATA
| Model | YC160 | YC200 | |
| Functions | Punching & marking | ||
| Angle Size (mm) | 40*40*3～160*160*14 | 40* 40*3～200*200*16 | |
| Max. Punching (Diameter * Thickness) (mm) | Φ26х14 | Φ26х16 | |
| Punching Force (kN) | 1000 | 1000 | |
| Marking Force (kN) | 1000 | 1000 | |
| Max. Length Of Finished (m) | 8 | 8 | |
| 3 Stations | 2 stations for punching, & 1 station for marking | ||
| Marking Letters | 12 | ||
| Dimension Of Letter (mm) | 14*10*20 By Customers’ Request | ||
| CNC Axes | 2 | ||
| Feeding Speed Of Angle (m/min) | 60 | 60 | |
| Processing Precision | Accordance with GB2694 | ||
| Punching Back Mark | Side length≥40-63 | Back mark≥20 | Back mark≥20 |
| ≥70-100 | ≥32 | ≥32 | |
| ≥110-125 | ≥42 | ≥42 | |
| ≥140-160 | ≥50 | ≥50 | |
| Program Function | Real time fault display | ||
| Programming Mode | Input by keyboard, RS232 interface, floppy disk and USB interface | ||
| Program Function | Error display | ||
| Overall dimension L*W*H (mm) | 18900*2300*2600 | 22500*600*1800 | |
| Net Weight (kg) | 5500 | 11000 | |
★ All of these models can be customized according to customer requirements.
