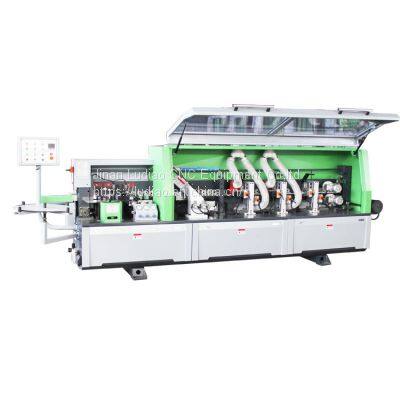

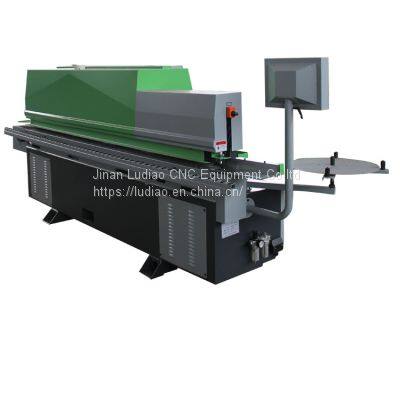

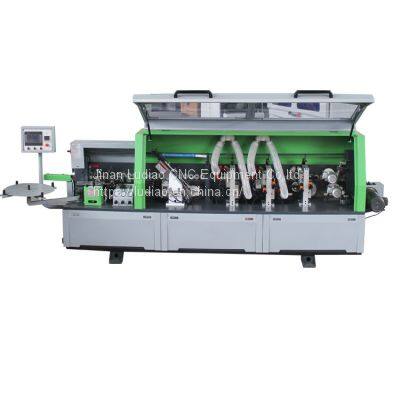

Melamine edge banding / PVC edge banding machine Automatic edge banding machine/pvc edge bander/pvc edge banding machine
Function:
Preheating, pressing, gluing .end trimming rough trimming Fine trimming, ,scraping, buffing
Usage and features:
This machine is mainly used plywood, fiberboard, and Dimensional cross-section of particle board straight structure Edge. It is compact structure, reasonable layout and aesthetic appearance; Usage of sound insulation, Dust collection port, anti-overload devices; It has edge banding, the upper and lower trimmer, surface polishing work unit; It is a new, multi-functional, straight edge banding machine, which is very popular in woodworking furniture factory of all ages
Technical parameters
Mode |
LD4200 |
Edge banding thickness |
0.4-3mm |
Banding tape width |
10-60mm |
Mini width of wood |
>=80mm |
Work piece length |
>=120mm |
Heating power |
2.3kw |
Feeding motor power |
0.75kw |
End cutting motor |
0.37KW*2 14000rpm/min |
Glue spreading motor power |
0.55kw |
Fine trimming motor power |
0.75kw*2 12000rpm/min |
Rough trimming motor power |
0.75KW*2 12000rpm/min |
Polishing motor power（buffing) |
0.18kw*2 1400rpm/min |
Work piece transmission motor |
0.75kw 2800rpm/min |
Feeding speed |
8-20m/min |
Air pressure |
0.7Mpa |
Machine size |
4200*900*1500mm |
Edge banding machine sample
