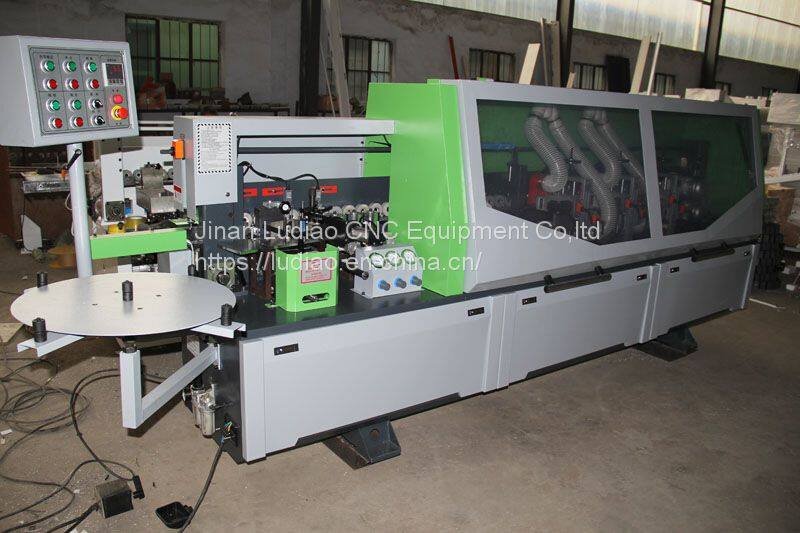

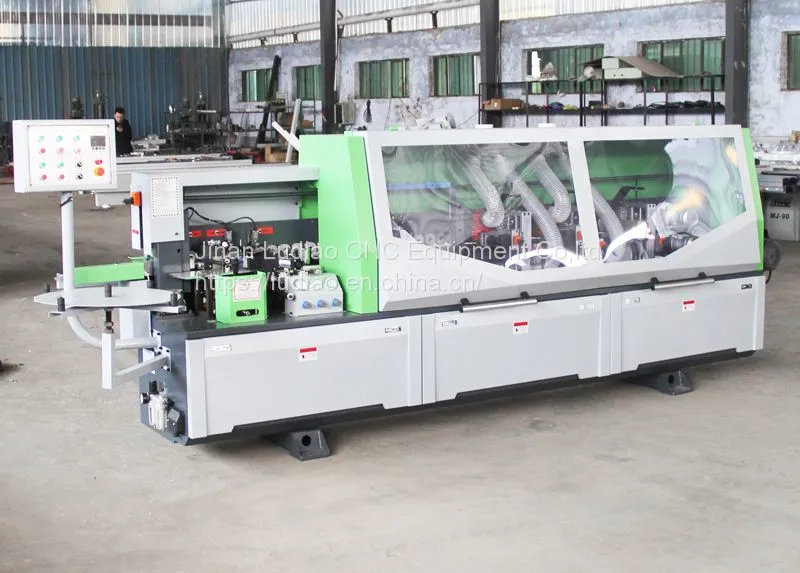

PVC edge banding machine automatic edge bander melamine cabinet edge banding with end cutter
Function:

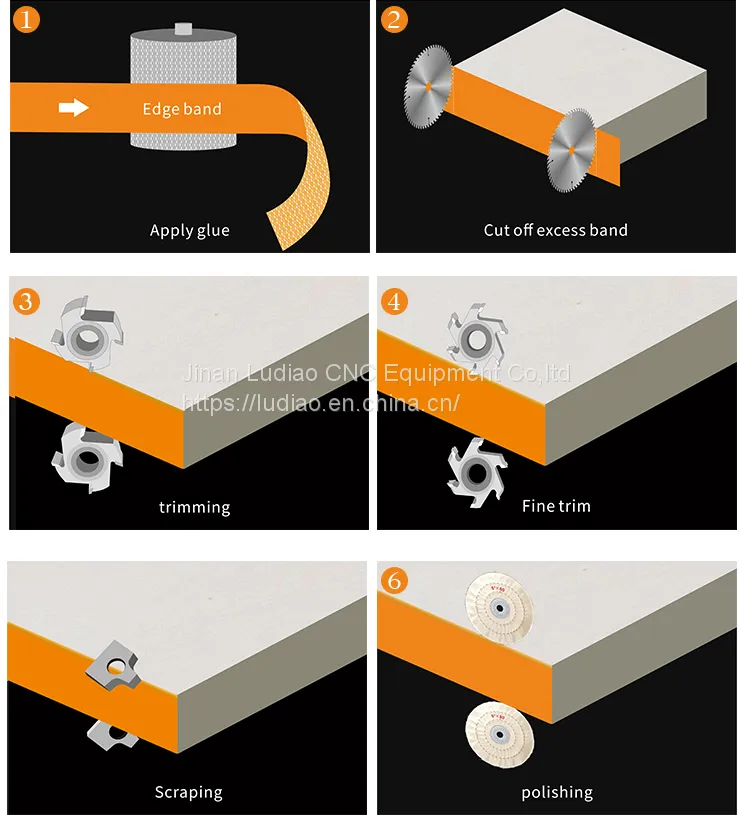

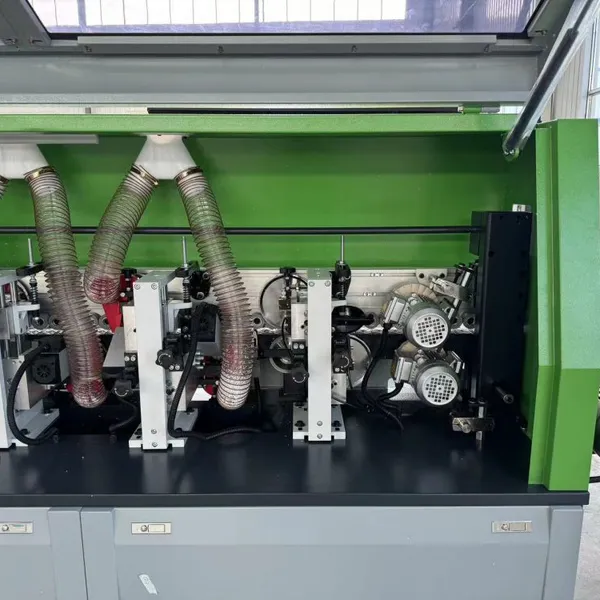

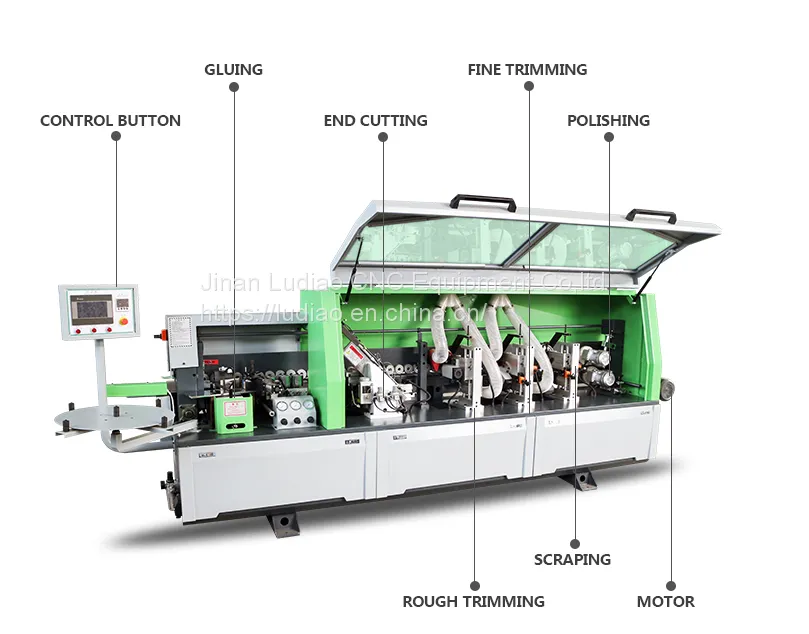

Preheating, pressing, gluing .end trimming rough trimming Fine trimming, ,scraping, buffing
Usage and features:
This machine is mainly used plywood, fiberboard, and Dimensional cross-section of particle board straight structure Edge. It is compact structure, reasonable layout and aesthetic appearance; Usage of sound insulation, Dust collection port, anti-overload devices; It has edge banding, the upper and lower trimmer, surface polishing work unit; It is a new, multi-functional, straight edge banding machine, which is very popular in woodworking furniture factory of all ages
Technical parameters
Mode | LD4200 |
Edge banding thickness | 0.4-3mm |
Banding tape width | 10-60mm |
Mini width of wood | >=80mm |
Work piece length | >=120mm |
Heating power | 2.3kw |
Feeding motor power | 0.75kw |
End cutting motor | 0.37KW*2 14000rpm/min |
Glue spreading motor power | 0.55kw |
Fine trimming motor power | 0.75kw*2 12000rpm/min |
Rough trimming motor power | 0.75KW*2 12000rpm/min |
Polishing motor power（buffing) | 0.18kw*2 1400rpm/min |
Work piece transmission motor | 0.75kw 2800rpm/min |
Feeding speed | 8-20m/min |
Air pressure | 0.7Mpa |
Machine size | 4200*900*1500mm |

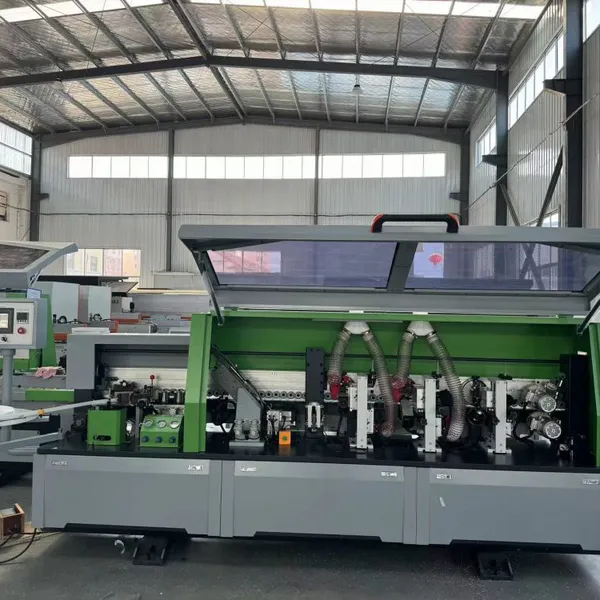

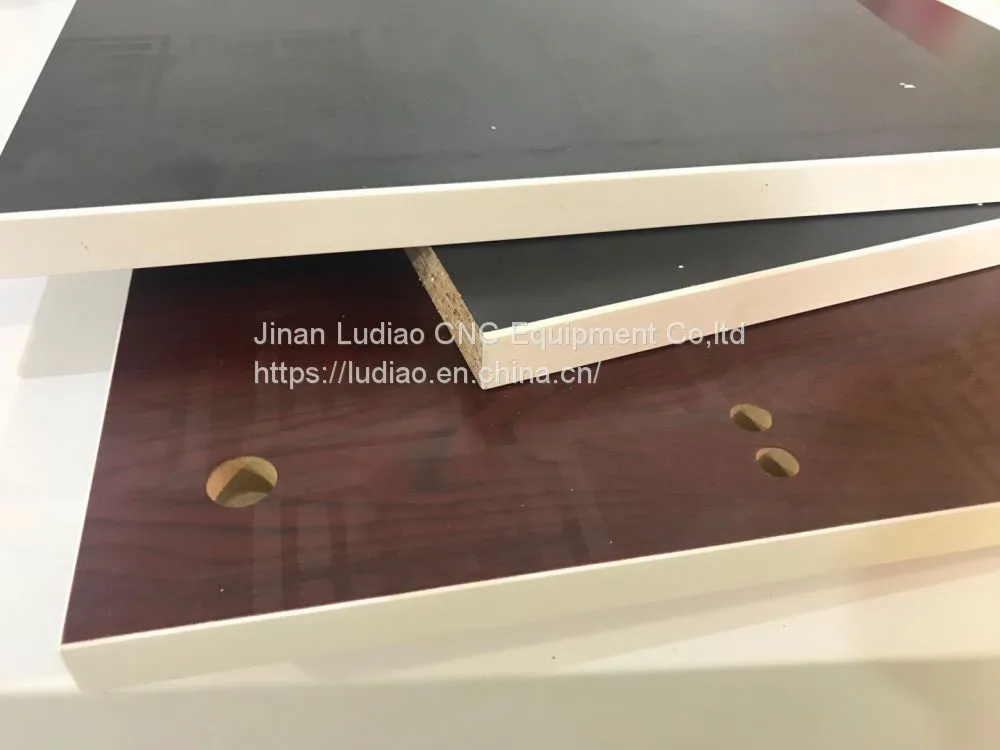

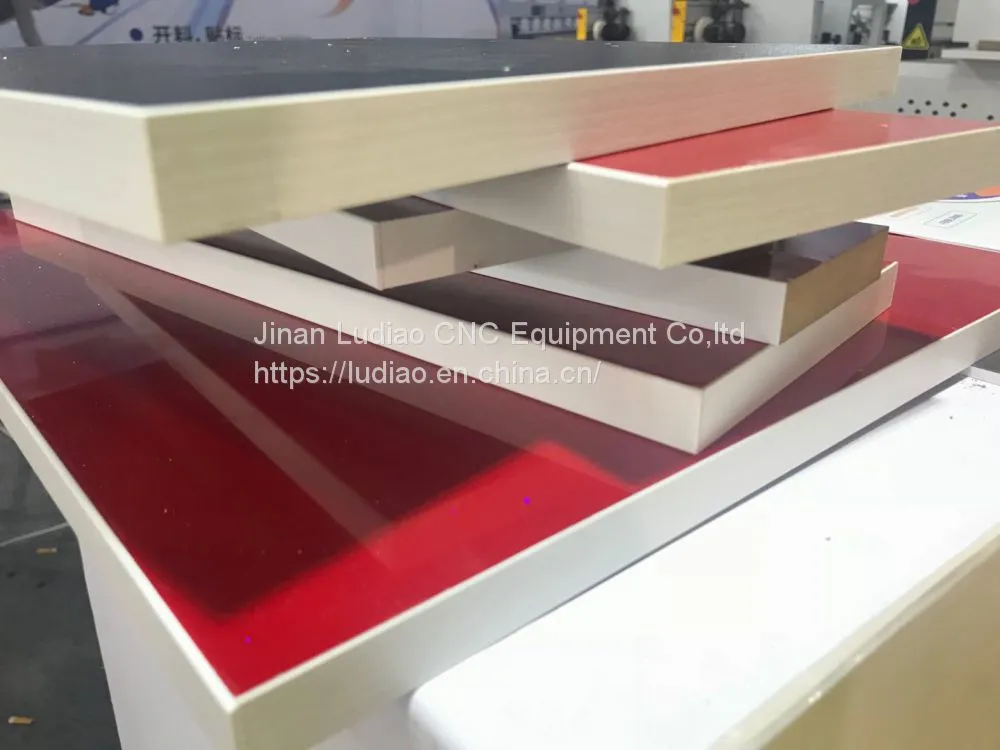

Edge banding machine sample
