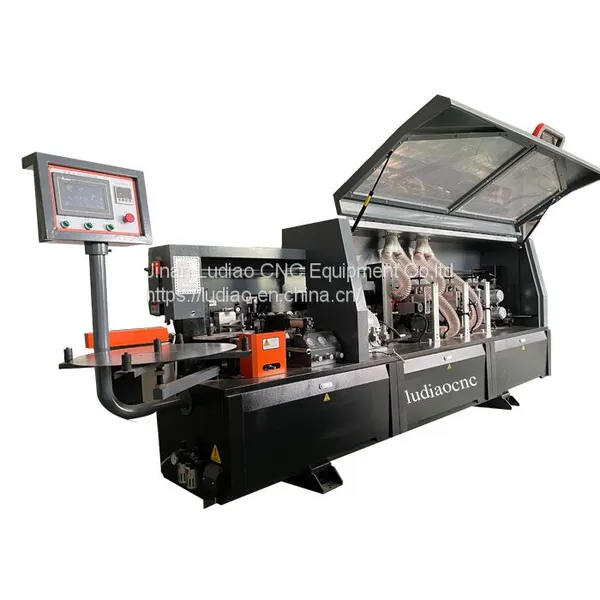

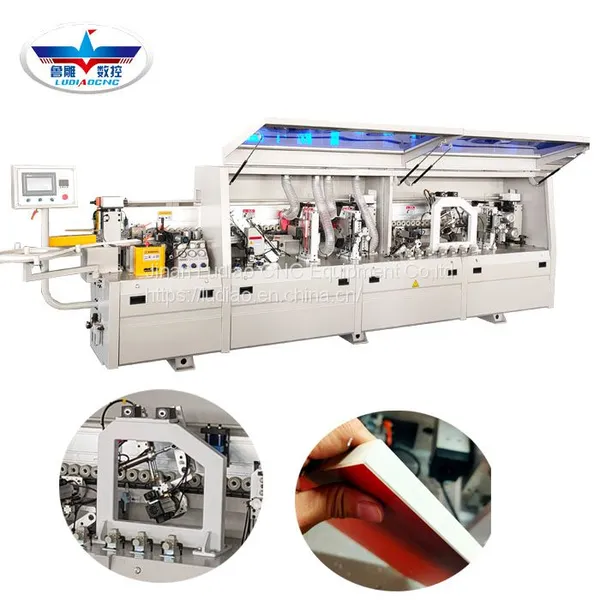

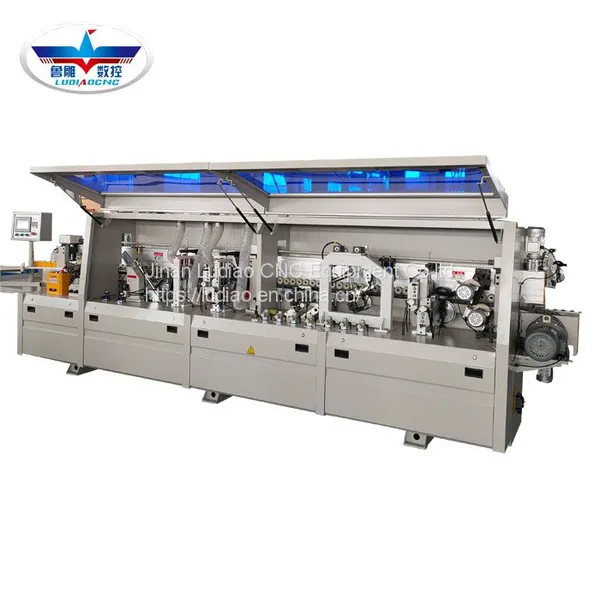

Corner rounding pvc edge bander machine used for furniture automatic edge banding machine with profile tracking
Function:
Preheating, pressing, gluing .end trimming rough trimming Fine trimming, Corner rounding,scraping, buffing

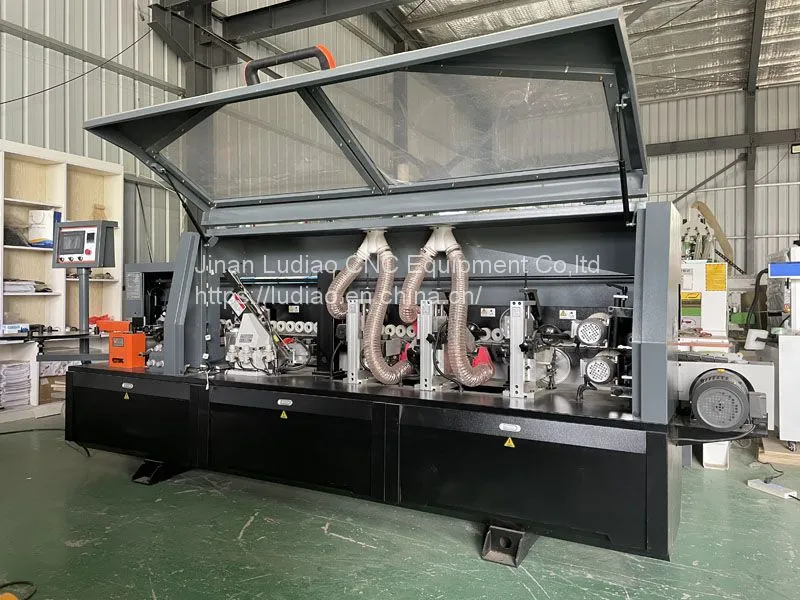

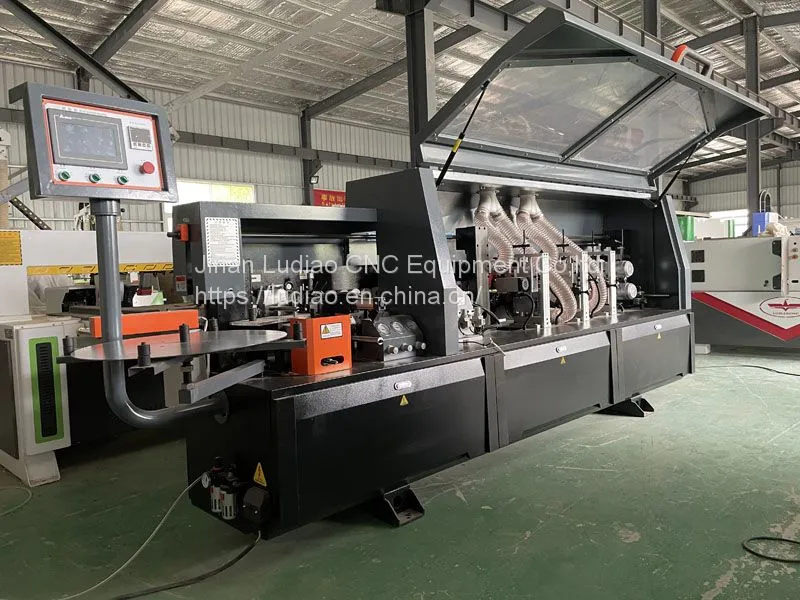

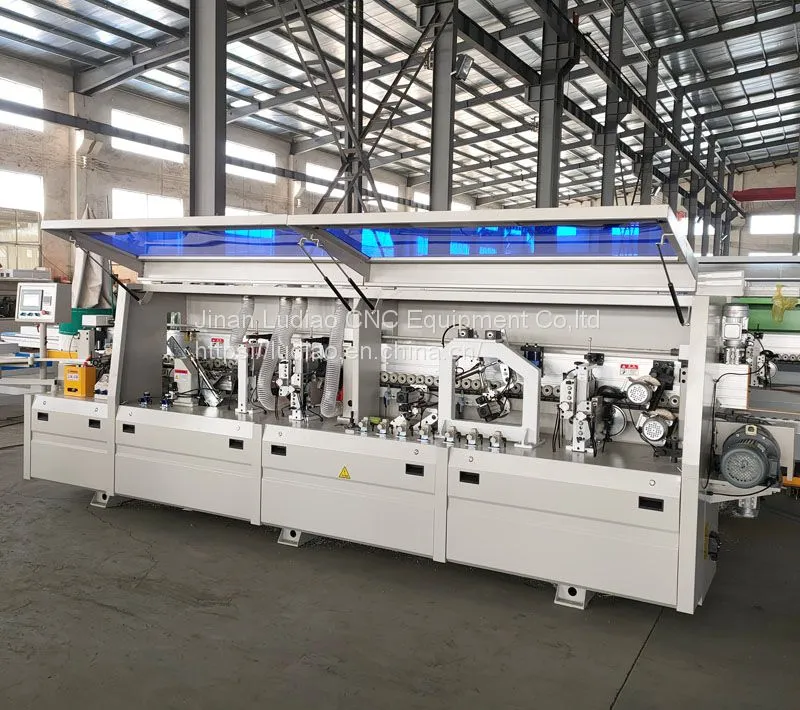

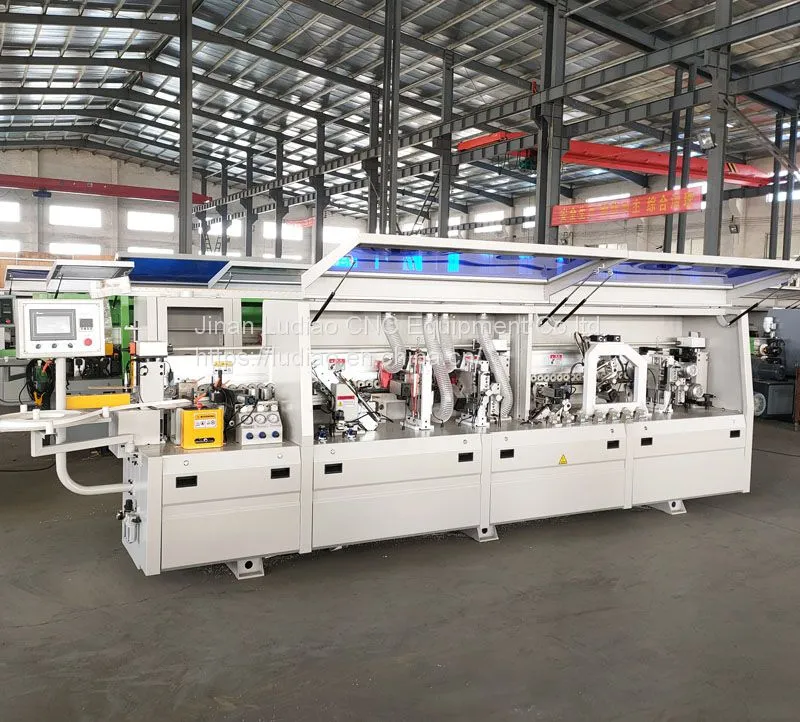

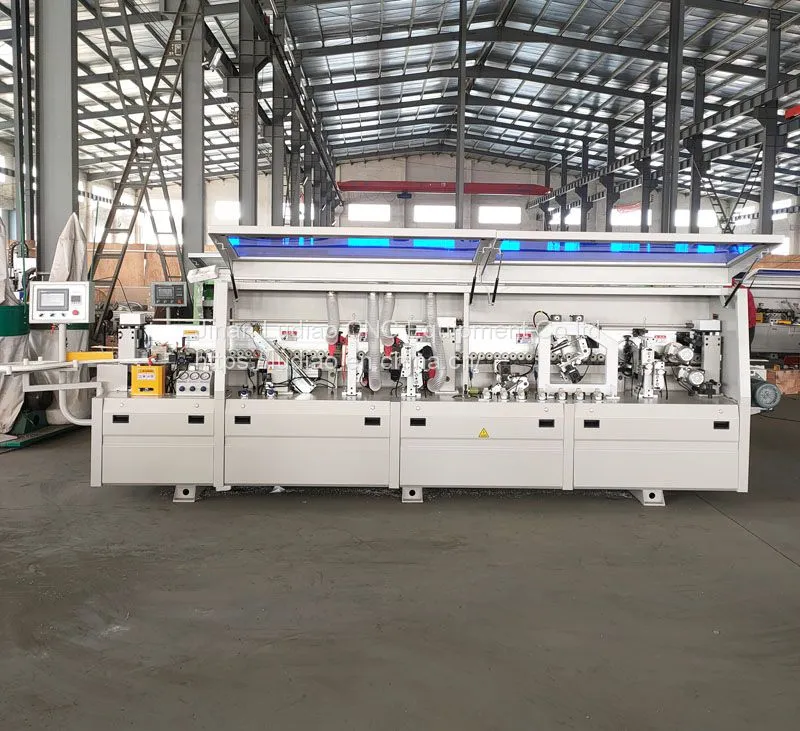

(Corner rounding edge banding machine, Profile tracking edge banding machine details

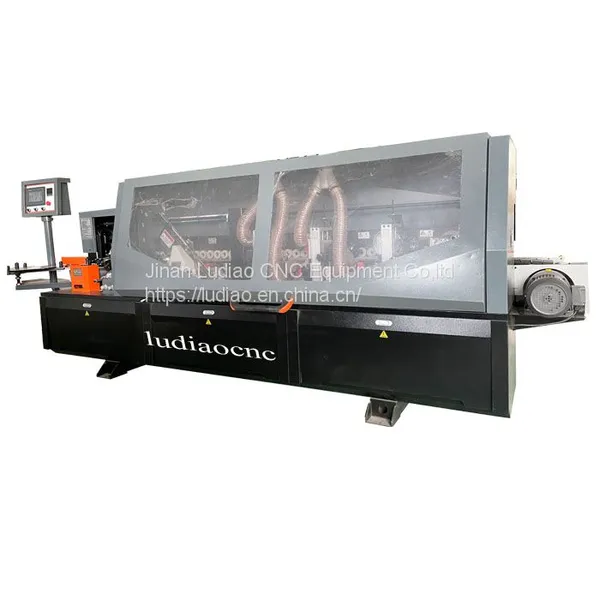

Popular automatic edge banding machine without corner rounding
Usage and features:
This machine is mainly used plywood, fiberboard, and Dimensional cross-section of particle board straight structure Edge. It is compact structure, reasonable layout and aesthetic appearance; Usage of sound insulation, Dust collection port, anti-overload devices; It has edge banding, the upper and lower trimmer, surface polishing work unit; It is a new, multi-functional, straight edge banding machine, which is very popular in woodworking furniture factory of all ages
Technical parameters
Mode |
LD4200 |
Edge banding thickness |
0.4-3mm |
Banding tape width |
10-60mm |
Mini width of wood |
>=80mm |
Work piece length |
>=120mm |
Heating power |
2.3kw |
Feeding motor power |
0.75kw |
End cutting motor |
0.37KW*2 14000rpm/min |
Glue spreading motor power |
0.55kw |
Fine trimming motor power |
0.75kw*2 12000rpm/min |
Rough trimming motor power |
0.75KW*2 12000rpm/min |
Polishing motor power（buffing) |
0.18kw*2 1400rpm/min |
Work piece transmission motor |
0.75kw 2800rpm/min |
Feeding speed |
8-20m/min |
Air pressure |
0.7Mpa |
Machine size |
4200*900*1500mm |
Edge banding machine sample
