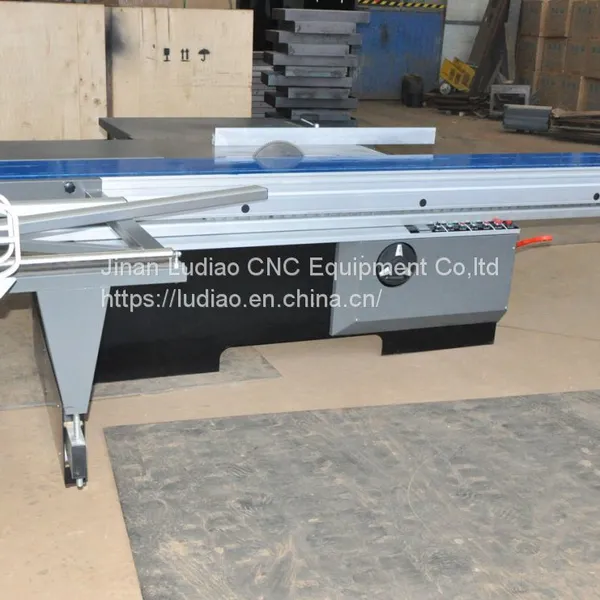

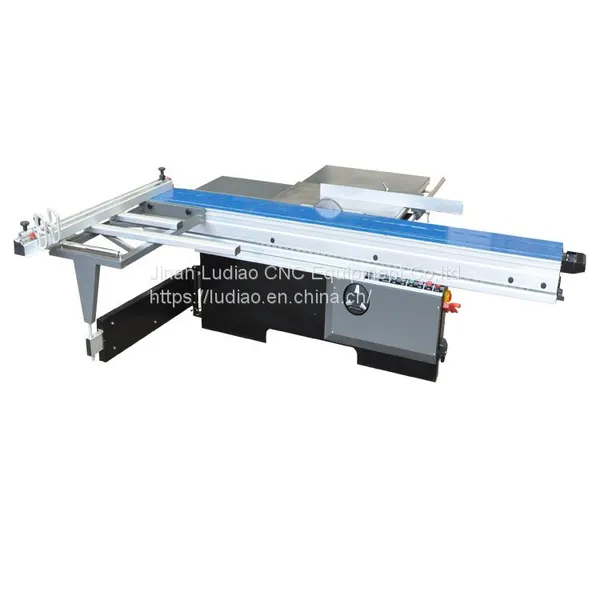

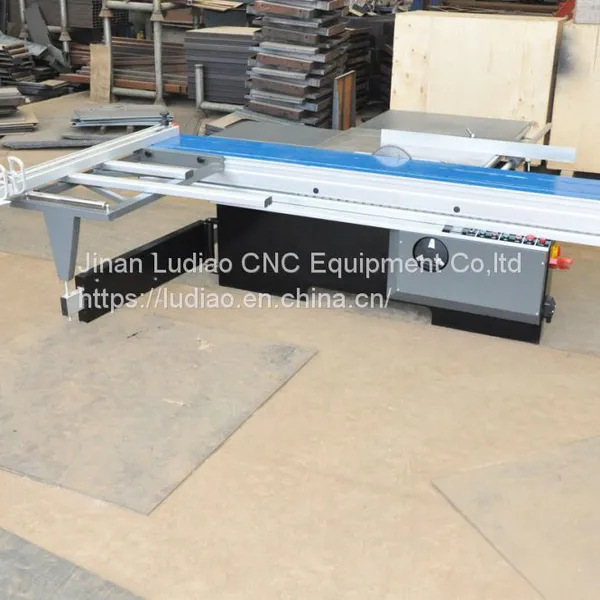

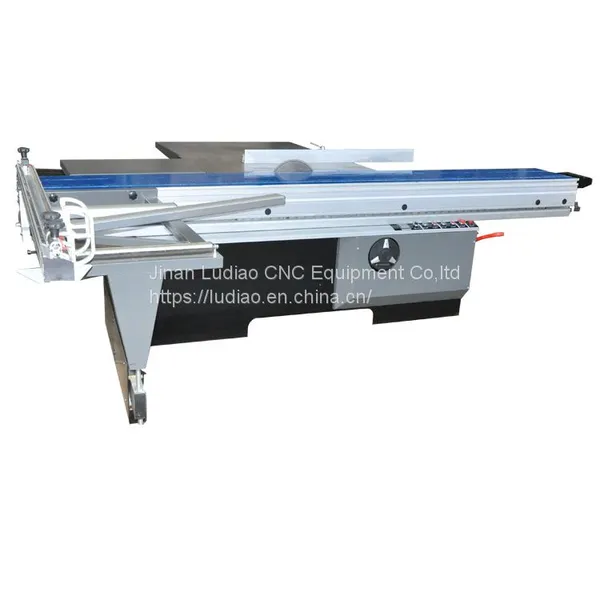

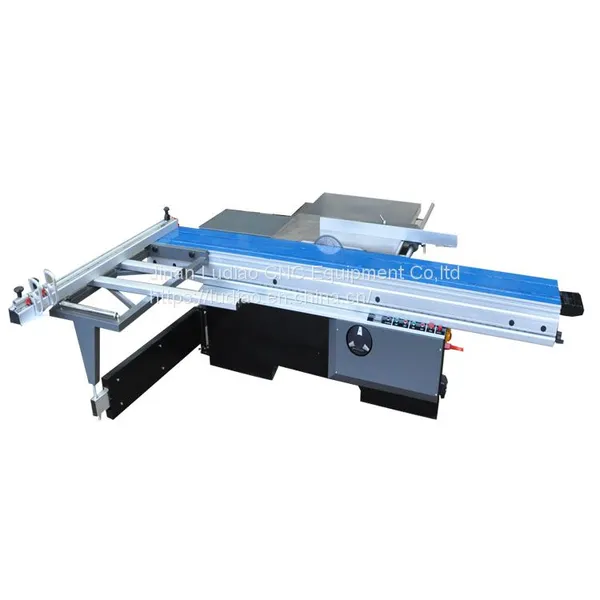

wood precision table panel saw with main saw and scoring saw blade woodworking for cabinet furniture
Contact me for further: amy@cncleader.cn
Wechat/whatsapp+8613206403346
thx
Amy
1: The machine is suitable for processing various MDF, particleboard, wood-based panel, ABS board, PVC board, plexiglass plate and solid wood and other wood structure similar to the hardness of the plate.
2: the whole body using the whole spray durable wear-resistant, not paint off ,the appearance of perfect.
3: The machine table for the thick cast iron, after muffle treatment, never deformation. By the foot is a big thicker by the European thick,
4: mobile table for high-strength aluminum alloy, after all the surface oxidation. Mobile push platform guide for the round bar slide, (can be customized linear steel ball push, preferential rate consulting customer service)
5: The motor uses the national standard full copper core motor, than the aluminum, copper clad aluminum motor power, power strong, (need to change the motor price directly)
6: The use of national standard iron body heavier processing, high precision, stable and stable, to prevent jitter small errors
7: double-blade principle, a small saw blade crossed, large saw blade cutting, to prevent collapse edge, burr phenomenon.
8: Pneumatic press can be ordered, safe and efficient. (This price does not contain the pressure feeder, the price, please contact)
9: voltage standard 380V, 220V, please specify in advance for ordering
Specification of slide table saw
Table Guide Length |
2800/3200mm |
Table Guide Width |
320mm(Option) |
Cast Iron Table |
1000*570mm |
Auxiliary Table |
745*545mm |
Max. Cutting Height |
80mm |
Volate |
380V.3p |
Saw group title angle |
0-90degree (45 degree is optional) |
Main Spindle Diameter |
30mm |
Main Saw Diameter |
400mm |
Main Saw Speed(r.p.m) |
4000/6000 |
Main Saw Motor Power |
5.5kw |
Scoring Spindle Diameter |
20mm |
Scoring Saw Diameter |
120mm |
Scoring Saw Speed(r.p.m) |
8000 |
Scoring Saw Motor Power |
1.1kw |
Packing size |
3100mm*1150*1200mm |
GW |
600KG |
Delivery time |
3 days |
Warranty |
One year |
Cutting samples
Related machine

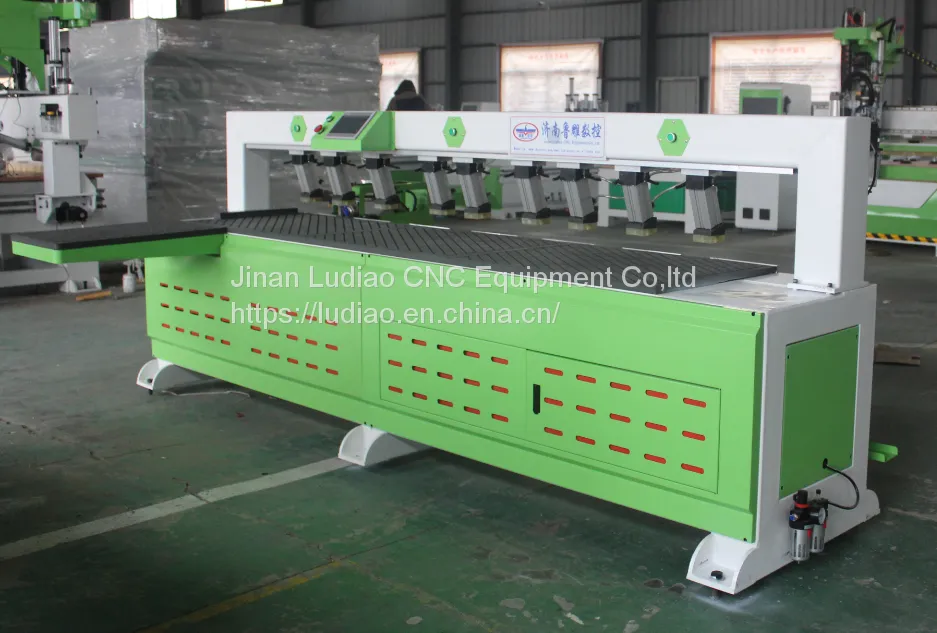

1.Three in one side hole driller

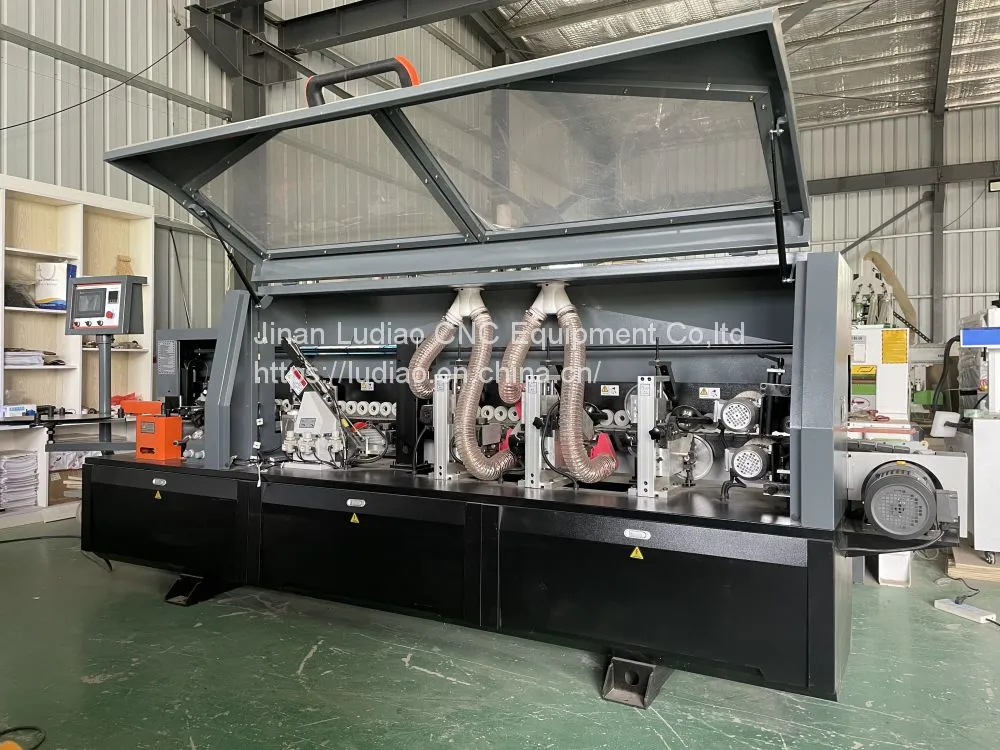

2.PVC edge banding machine

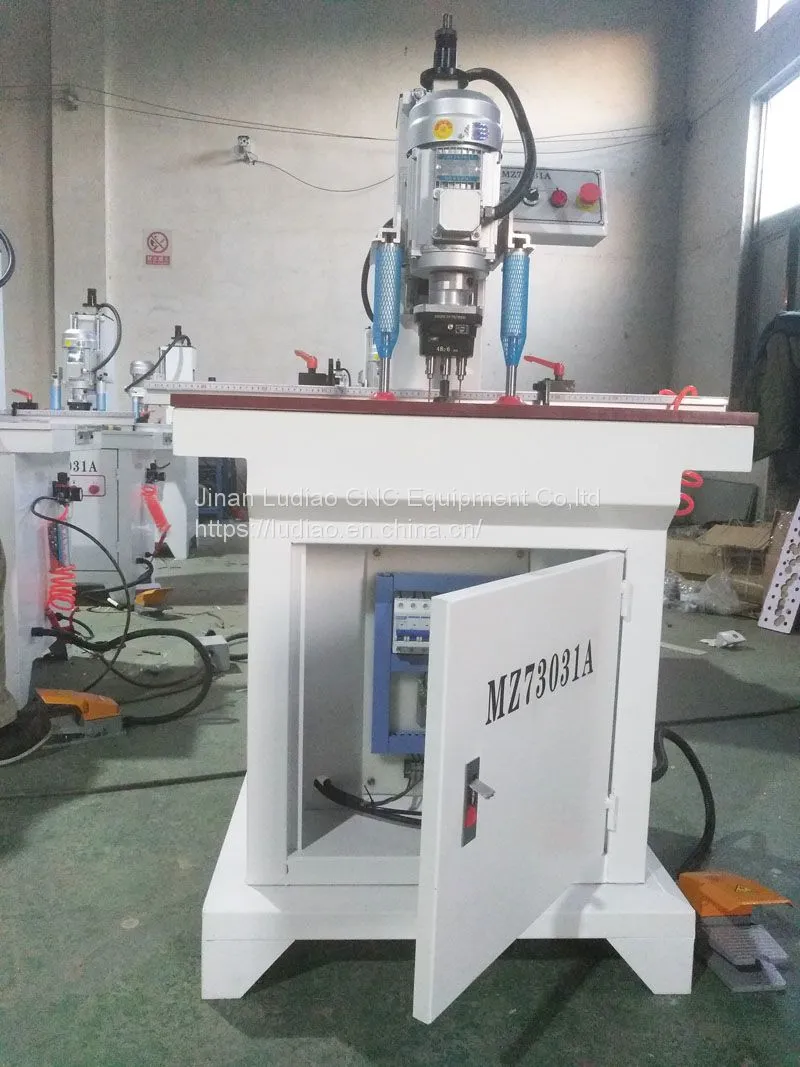

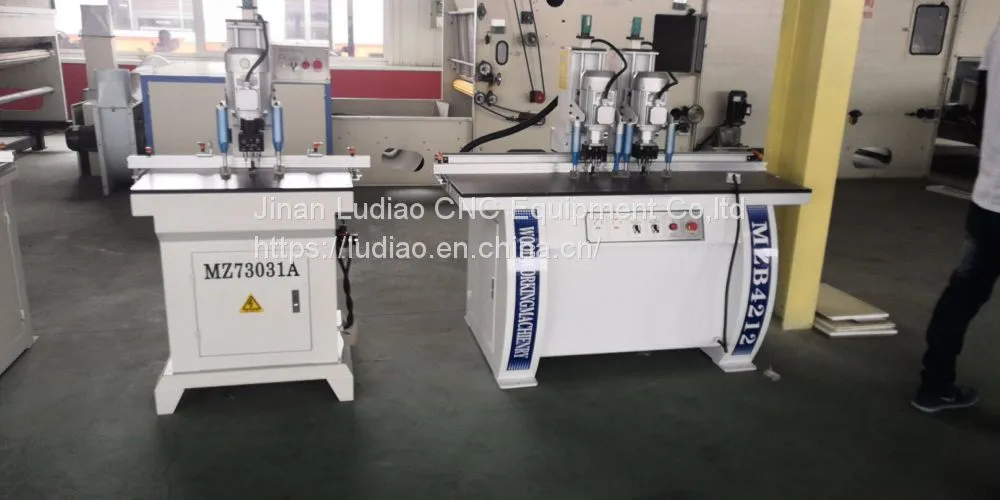

3.Hinge hole drilling machine
