1W 3KV Isolated Miniature Dual Output DC/DC Converters

FOB Price

USD $2

≥500 Piece

Supply Ability 5000 Piece / Pieces per Month
Port gunagzhou
Payment TermsT/T PayPal Other
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	TOPPOWER	Place of Origin	China
Model Number	TKA	Output Power	1 - 50W
Output Type	Single	Output Current	ma
Output Frequency	hz	Output Voltage	vdc
Input Voltage	Other, 3.3-15V

Product Description

Miniature surface mounted DC/DC Converters are an ideal and economical solution for many applications where noise reduction, voltage isolation, voltage conversion in distributed power systems is required.

TOPPOWER can produce:

0.1W-40W DC-DC converters,3W-30W AC-DC converters,(SIP/DIP/SMD)
25W-1200W Enclosed /Open frame type AC-DC Switching Power supply,
15-480W AC-DC DIN RAIL Power Supply.

Brand:	TOPPOWER
size:	16.557.555.95
power:	1w
type:	dc-dc
Price:	3.00$/Pieces
Min.Order:	200 Pieces
Supply Amount:	582000 Pieces

1W 3KV Isolated Miniature Dual Output DC/DC Converters

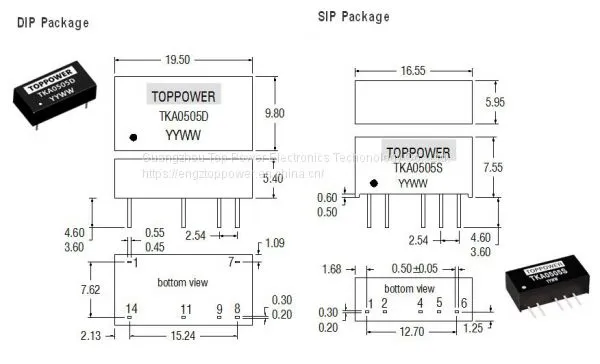

The TKA series are miniature, isolated 1W DC/DCconverters in a SIP and DIP package. They offer the idealsolution in many space critical applications for board level powerdistribution. The internal SMD construction makes it possibleto offer a product with high performance at low cost. The seriesoffers smaller size, improved efficiency, lower output ripple noise and 3KVDCisolation.

This series is compatible with RoHS solderingsystems with a peak wave solder temperature of 300℃ for 10 seconds. Both types in this series arebackward compatible with Sn/Pb soldering systems.

Part Number Nominal Input Voltage Output Voltage

V V

TKA0303D 3.3 ±3.3

TKA0305D 3.3 ±5

TKA0309D 3.3 ±9

TKA0312D 3.3 ±12

TKA0315D 3.3 ±15

TKA0324D 3.3 ±24

TKA0303S 3.3 ±3.3

TKA0305S 3.3 ±5

TKA0309S 3.3 ±9

TKA0312S 3.3 ±12

TKA0315S 3.3 ±15

TKA0324S 3.3 ±24

TKA0503D 5 ±3.3

TKA0505D 5 ±5

TKA0509D 5 ±9

TKA0512D 5 ±12

TKA0515D 5 ±15

TKA0524D 5 ±24

TKA0503S 5 ±3.3

TKA0505S 5 ±5

TKA0509S 5 ±9

TKA0512S 5 ±12

TKA0515S 5 ±15

TKA0524S 5 ±24

TKA1205D 12 ±5

TKA1209D 12 ±9

TKA1212D 12 ±12

TKA1215D 12 ±15

TKA1224D 12 ±24

TKA1205S 12 ±5

TKA1209S 12 ±9

TKA1212S 12 ±12

TKA1215S 12 ±15

TKA1224S 12 ±24

RoHS compliant	Efficiency up to 83%	Operating temperature:-40℃ to 85℃
UL 94V-0 package material	Internal SMD construction	Industry standard pinout
Power sharing on output	Input voltage :3.3V, 5V,12V	Output voltage: ±3.3V, ±5V, ±9V, ±12V , ±15V,±24V
