Temperature Calibration Apparatus Dry Block Well Type 50 to 1200 Deg C Furnace

Temperature Calibration Apparatus Dry Block Well Type 50 to 1200 Deg C Furnace thumbnail-1
Temperature Calibration Apparatus Dry Block Well Type 50 to 1200 Deg C Furnace thumbnail-2
Temperature Calibration Apparatus Dry Block Well Type 50 to 1200 Deg C Furnace thumbnail-3
Temperature Calibration Apparatus Dry Block Well Type 50 to 1200 Deg C Furnace thumbnail-4
Temperature Calibration Apparatus Dry Block Well Type 50 to 1200 Deg C Furnace thumbnail-5
Temperature Calibration Apparatus Dry Block Well Type 50 to 1200 Deg C Furnace photo-1
Temperature Calibration Apparatus Dry Block Well Type 50 to 1200 Deg C Furnace photo-2
Temperature Calibration Apparatus Dry Block Well Type 50 to 1200 Deg C Furnace photo-3
Temperature Calibration Apparatus Dry Block Well Type 50 to 1200 Deg C Furnace photo-4
Temperature Calibration Apparatus Dry Block Well Type 50 to 1200 Deg C Furnace photo-5
US$ 1700 - 3200 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
DEARTO
Place of Origin:
China
Model Number:
DTG Series
Contact Supplier Request Quote Chat Now
Tai'an Dearto Automation Instrument Co.,Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen / Shanghai
Delivery Detail:
10 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name DEARTO
Place of Origin China
Model Number DTG Series
Temperature Range 50℃-1200℃
Usage Industrial
Theory Temperature Controller
Accuracy ≤±0.2℃
Product Description
DTG series portable intelligent dry body furnace, simple operation, light and easy to carry, accurate temperature control,suitable for laboratory and industrial field temperature calibration / metering; its calibration temperature range can be from 50° C to 1200 ° C, the temperature block uses high thermal conductivity Rate alloy material to ensure uniform and stable internal temperature field. Technologies such as temperature control accuracy, horizontal temperature field, vertical temperature field,stability, load capacity and hysteresis are all at the leading level in China. Widely used in machinery, shipbuilding, chemicals,food, electricity, pharmaceuticals and other industries.

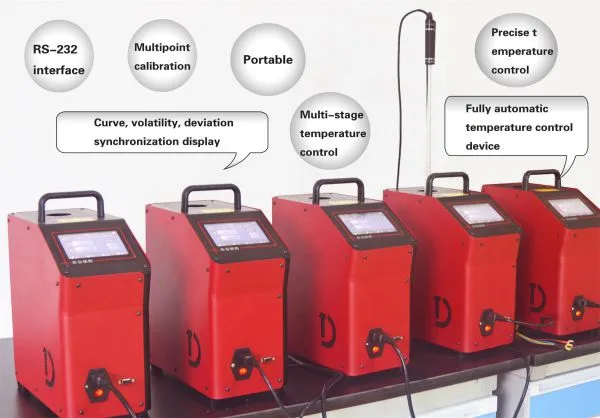

Functional characteristics
- Accurate temperature control and uniform temperature field
- Beautiful, portable and lightweight, convenient for on-site verification.
- Touch screen operation, one temperature rise, automatic temperature control is convenient to use.
- Multi-stage temperature control, rapid temperature rise, zero overshoot, fast and stable
- Multi-point calibration interpolation calibration technology for more accurate temperature control
- RS-232 interface for data export

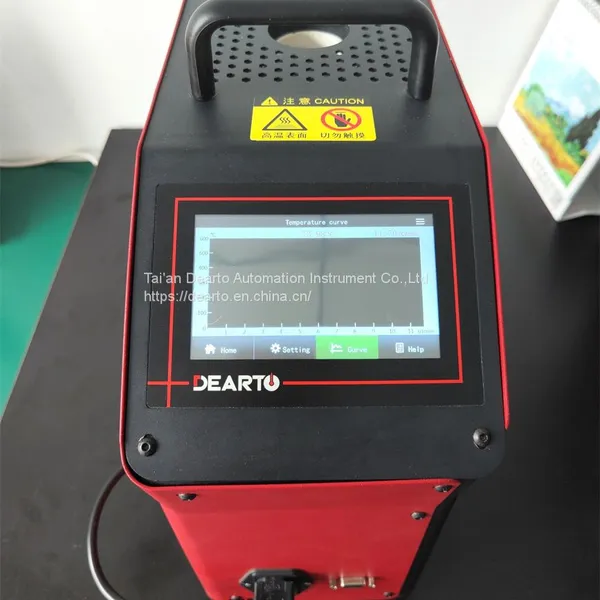

- Temperature curve, volatility, deviation synchronous display, intuitive reading
Product Paramenters
          Medium temperature portable intelligent dry block furnace
Model
DTG-300G
DTG-450G
DTG-660G
Temperature range
50℃~300℃
50℃~450℃
50℃~660℃
Control style
Touch screen
Touch screen
Touch screen
Heat source
Heating
Heating
Heating
Display resolution
0.01℃
0.01℃
0.01℃
Horizontal temperature field
≤±0.2℃
≤±0.2℃
≤±0.2℃
Vertical temperature field
Within 30mm up from the bottom of the well≤1.0℃
Deep well
170mm
170mm
170mm
Standard hole diameter(mm)
φ6,φ6,φ8,φ8,φ10,φ12
When ordering, please indicate the depth of the inserted sensor and the outer diameter of the tested sensor (support customization)
Dimensions(mm)
310×165×360
P
800W
800W
1200W
Power supply
220V/50Hz
               High temperature portable intelligent dry block furnace
Model
DTG-800G
DTG-1000G
DTG-1200G
Temperature range
300℃~800℃
300℃~1000℃
300℃~1200℃
Control style
Touch screen
Touch screen
Touch screen
Heat source
Heating
Heating
Heating
Display resolution
0.01℃
0.01℃
0.01℃
Temperature fluctuation
0.2℃/min
0.2℃/min
0.3℃/min
Standard hole diameter(mm)
φ6,φ6,φ8,φ8,φ10,φ12
When ordering, please indicate the depth of the inserted sensor and the outer diameter of the tested sensor (support
customization)
Deep well
200mm
200mm
200mm
Dimensions(mm)
310×165×360
P
1800W
1800W
1800W
Power supply
220V/50Hz

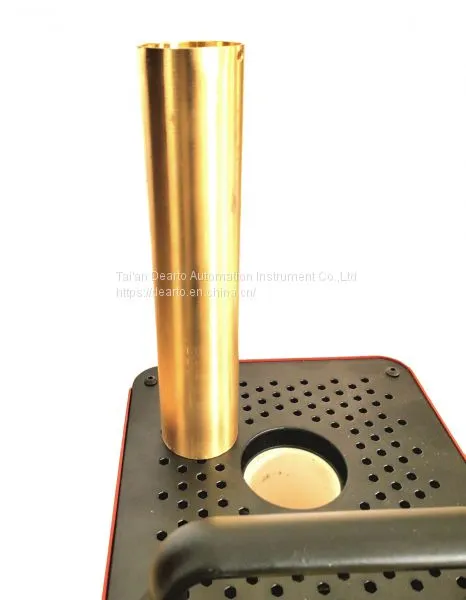

Brass alloy dry temperature block can be customized.

Product Tags: dry block temperature calibrator , dry well furnace , dry type furnace
