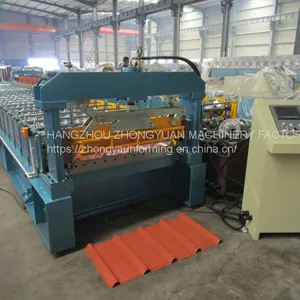

Best Quality PPGI Steel Coils Metal Roof Sheet Making Machine Iron Roofing Sheet Roll Forming Machine With CE Certificate

Best Quality PPGI Steel Coils Metal Roof Sheet Making Machine Iron Roofing Sheet Roll Forming Machine With CE Certificate thumbnail-1
Best Quality PPGI Steel Coils Metal Roof Sheet Making Machine Iron Roofing Sheet Roll Forming Machine With CE Certificate thumbnail-2
Best Quality PPGI Steel Coils Metal Roof Sheet Making Machine Iron Roofing Sheet Roll Forming Machine With CE Certificate thumbnail-3
Best Quality PPGI Steel Coils Metal Roof Sheet Making Machine Iron Roofing Sheet Roll Forming Machine With CE Certificate thumbnail-4
Best Quality PPGI Steel Coils Metal Roof Sheet Making Machine Iron Roofing Sheet Roll Forming Machine With CE Certificate thumbnail-5
Best Quality PPGI Steel Coils Metal Roof Sheet Making Machine Iron Roofing Sheet Roll Forming Machine With CE Certificate photo-1
Best Quality PPGI Steel Coils Metal Roof Sheet Making Machine Iron Roofing Sheet Roll Forming Machine With CE Certificate photo-2
Best Quality PPGI Steel Coils Metal Roof Sheet Making Machine Iron Roofing Sheet Roll Forming Machine With CE Certificate photo-3
Best Quality PPGI Steel Coils Metal Roof Sheet Making Machine Iron Roofing Sheet Roll Forming Machine With CE Certificate photo-4
Best Quality PPGI Steel Coils Metal Roof Sheet Making Machine Iron Roofing Sheet Roll Forming Machine With CE Certificate photo-5
US$ 33000 - 63000 MOQ: 1 Plant
Key Specifications
Get Latest Price
Brand Name:
ZHONGYUAN
Place of Origin:
China
Model Number:
sheet roll forming machine
Contact Supplier Request Quote Chat Now
Hangzhou Zhongyuan Machinery Factory
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO/SHANGHAI
Delivery Detail:
95 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ZHONGYUAN
Place of Origin China
Model Number sheet roll forming machine
After-sales Service Provided No overseas service provided
Warranty One year warranty （except for manual damage)
Weight 10.5T
Dimension(L*W*H) 10*1.5*1.5 m
Production Capacity Because of focus, so professional;Because of professional, so excellent;Because of excellence, so trust.
Voltage 7.5kw
Certification ISO 9001
Application : Building Material Shops, Manufacturing Plant, Construction works
Condition New
Power(W) 2.2KW

Overview
Quick Details

  • Condition:

  • New

  • Applicable Industries:

  • Building Material Shops, Manufacturing Plant, Construction works

  • Weight (KG):

  • 9500

  • Showroom Location:

  • Nigeria, Australia, Egypt, India, Mexico

  • Video outgoing-inspection:

  • Provided

  • Machinery Test Report:

  • Provided

  • Marketing Type:

  • Hot Product 2021

  • Warranty of core components:

  • 1 Year

  • Core Components:

  • PLC

  • Place of Origin:

  • Zhejiang, China

  • Brand Name:

  • zhongyuan

  • Warranty:

  • 1 Year

  • Cutter material:

  • Cr12 with quenched treatment

  • Roller material:

  • high grade No.45 forged steel

  • Voltage:

  • 415V/50HZ/3Phase

  • Total Power:

  • 9.7KW

  • Control system:

  • Mitsubishi PLC

  • Coil Width:

  • 1220mm

  • Suitable Coil Thickness:

  • 0.3mm-0.8mm

  • Suitable Raw Materials:

  • PPGI steel coils

  • Yield strength of raw material:

  • 500-550Mpa

  • Forming Speed:

  • Max. About 35-40m/min
Supply Ability

  • Supply Ability

  • 100 Set/Sets per Year

Packaging & Delivery

  • Packaging Details

  • Package of sheet metal profiling machine:
    1. one 40ft container for loading one set machine with mechanical decoiler;
    2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film;
    3. Spare parts and some small parts packed in plastic tooling box;
    4. All Components Fixed by steel wire with Container.

  • Port

  • NINGBO,CHINA


 Why choose this machine?

Certificate: ISO, CE,
Lifetime services
Control system:Mitsubishi PLC with touch screen.
Product cut-to-length.
Engineer overseas installing and training available

15 years skillful engneers to design and make your machines



1.Technical Parameter Of Metal Sheet Roll Forming Machines:

Item

Specification



Material

Type

PPGI steel coils

Thickness

0.3mm-0.8mm

Yield strength

500-550Mpa

Roller material

high grade No.45 forged steel, with digital-controlled procession

Speed

Max. About 35-40m/min

Speed adjusting mode

AC Frequency

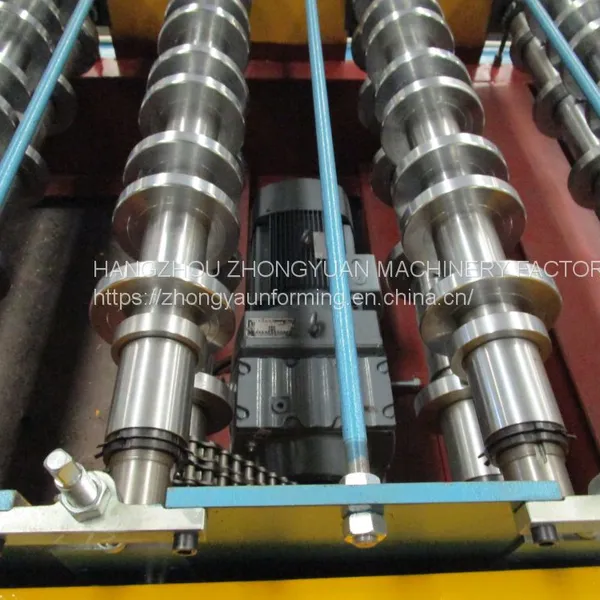

Roller drive

Decelerating motor + Chain drive

Cutting mode

Hydraulic cutting

Cutter material

Cr12 with quenched treatment

Length measurement

Encoder

Control mode

Mitsubishi PLC

Operating mode

Button + Mitsubishi Touch screen

Main motor power

7.5KW

Hydraulic station motor power

 2.2  KW



2. Components of Metal Sheet Roll Forming Machines:

Manual decoiler

1 set(Capacity: 7 tons)

Pre Cutter

1set

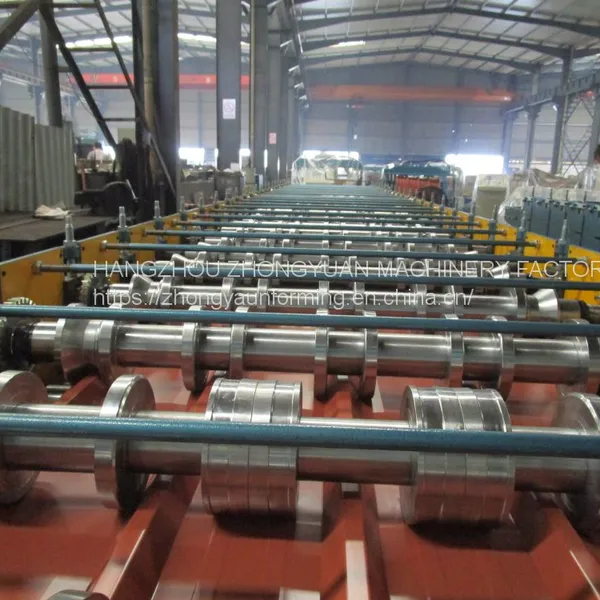

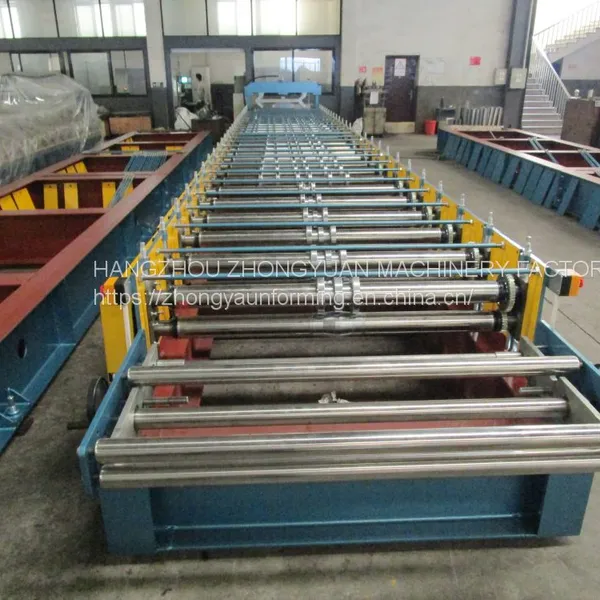

Roll-Forming M/C

1set

Hydraulic Cutting

1set

Hydraulic station

1set

PLC Control System

1 set

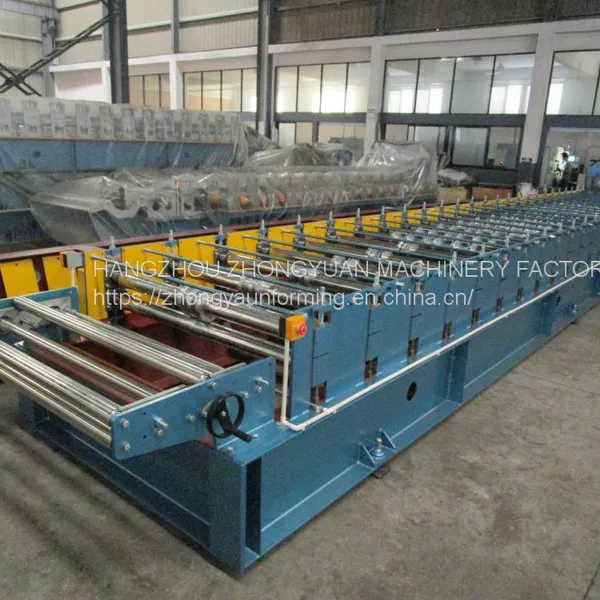

Roofing forming machine with improved structure:

1) Thickness of wall panel for machine is 40mm, the structure is more stronger than old style wall, so that machine life is much longer.

2) This structure is based on European machines’ structure, the outlook of machine is also more attractive now.

3) The producing speed of our improved structure machine can reach about 35-40m/min, much more efficient.

4) We can insure life time of improved structure machines more than 15 years with correct operation and maintain.
