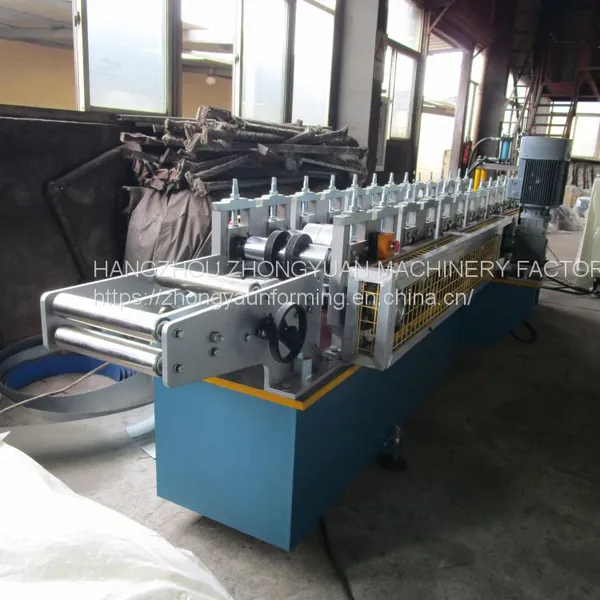

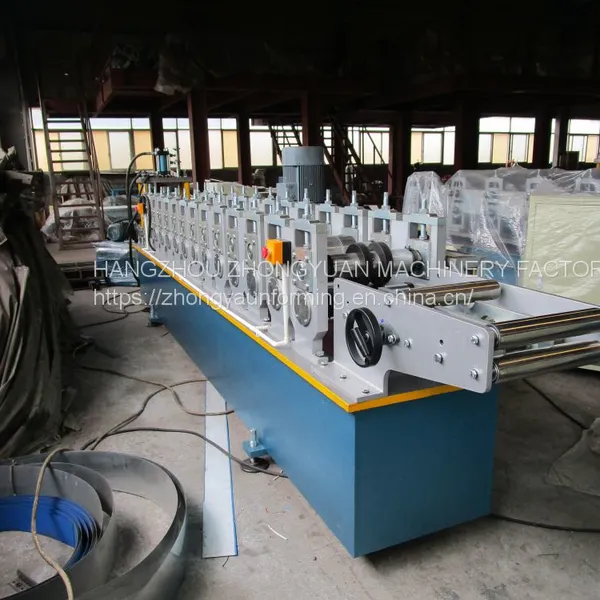

Profile Customized WaterProof Rain Gutter Stud Metal Cold Roll Forming Machine

FOB Price

USD $24000 - $44000 / Combo

1 Combo(Min.Order)

Supply Ability 75 Combo / Combos per Month
Port NINGBO/SHANGHAI
Payment Terms:T/T L/C Cash Other
Delivery Detail:100 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	ZHONGYUAN	Place of Origin:	China	Model Number:	Gutter Stud Metal Cold Roll Forming Machine
After-sales Service Provided:	No overseas service provided	Warranty:	One year warranty （except for manual damage)	Weight:	3.5T
Dimension(LWH):	4.81.11.5M	Production Capacity:	Because of focus, so professional;Because of professional, so excellent;Because of excellence, so trust.	Voltage:	4KW
Certification:	ISO 9001	Condition:	New

Product Description

Quick Details

Applicable Industries:
Building Material Shops, Manufacturing Plant, Construction works

After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location:
None

Showroom Location:
None

Condition:
New

Type:
Tile Forming Machine

Tile Type:
Colored Glaze Steel

Use:
Gutter Panel

Production Capacity:
15-20m/min

Place of Origin:
Zhejiang, China

Brand Name:
Zhongyuan

Voltage:
380V 50Hz 3phases

Dimension(L*W*H):
6m*1.2m*1.4m

Weight:
5T

Certification:
CE/ISO9001/BV

Warranty:
1 Year

After-sales Service Provided:
Online support, Field installation, commissioning and training, Video technical support

Key Selling Points:
Long Service Life

Rolling thinckness:
0.3-0.8mm

Feeding width:
Other

Machinery Test Report:
Provided

Video outgoing-inspection:
Provided

Marketing Type:
Ordinary Product

Warranty of core components:
1 Year

Core Components:
Machine

Roller diameter:
72mm

Feeding thickness:
0.3-0.6mm

Cutter Standard:
Cr12 mould steel

Shaft material:
High Grade No.45 Forged

Length Measure:
Encoder

Control system:
Mitsubishi PLC from Japan

Machine degree:
Automatic

Quality level:
High

Application:

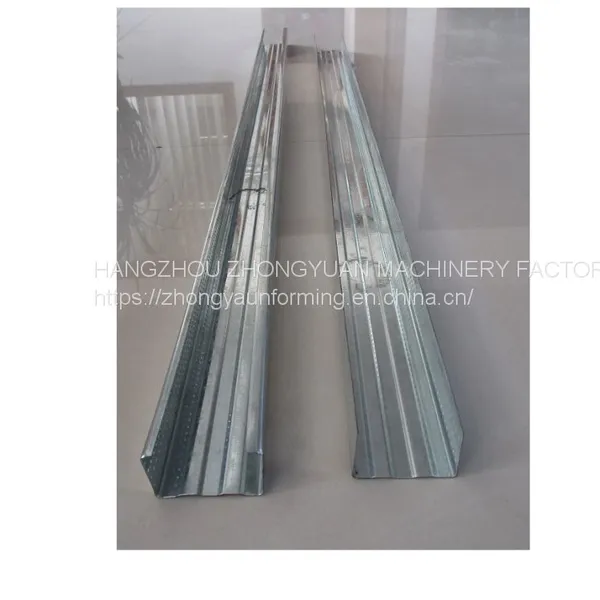

WaterProof Gutter Sheet

Function:
Roof Usage

Roof Usage

Supply Ability

Supply Ability
10 Set/Sets per Month

Packaging & Delivery

Packaging Details
1. One 20Gp container for loading one set of machine with mechanical decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.

Port
Ningbo

Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 To be negotiated

Technical Data

Suitable material	PPGI,PPGL Steel Coils, with 0.3-0.6mm thickness
Yield Strength	Q235Mpa
Working speed	About 20-25m/min
Main motor power	4 Kw(Depend on final design)
Hydraulic station power	2.2Kw(Depend on final design)
Cutter material	Cr12 mould steel with quench treatment

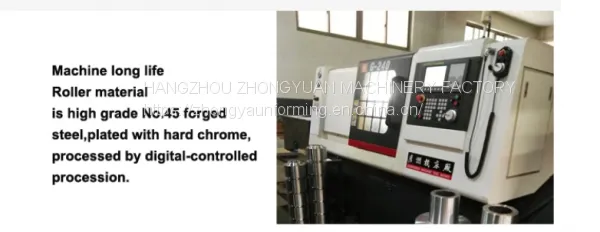

Roller Material	No. 45 forged steel with 0.05mm thickness chrome

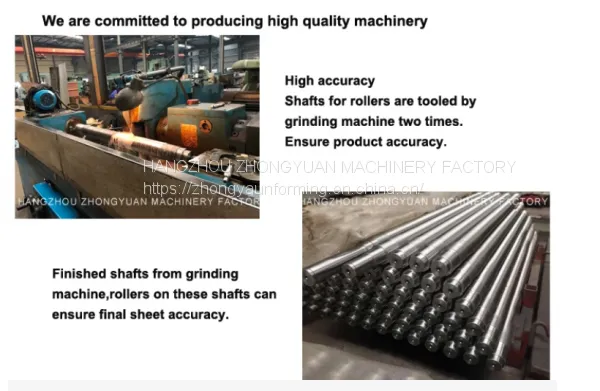

Material of shaft	High quality 45# steel, Dia. is 55mm

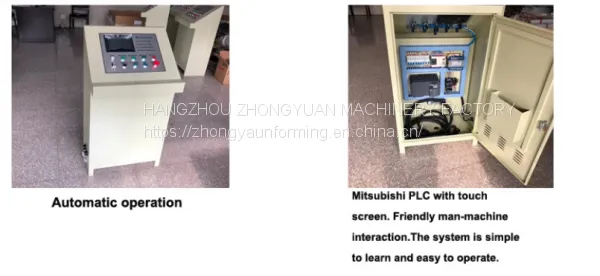

Controlling system	Mitsubishi PLC & converter
Length measurement	Encoder(Nemico)
Operation mode	Botton+Mitsubishi Touch Screen
Total weight	About 5000KGS(Depends on final design)

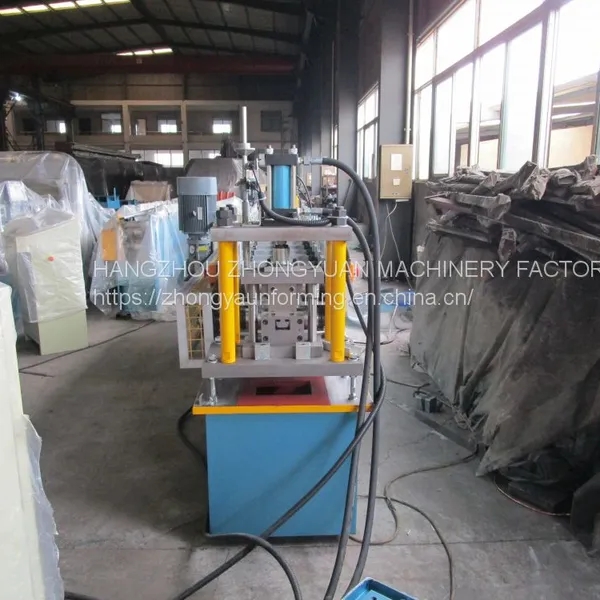

Machine Components

1	Manual Decoiler	1 pc (Capacity:3 tons)
2	Guiding Equipment	1 set
3	Roll Forming Equipment	1 set
4	Post-Cutting Equipment	1 set
5	Hydraulic Station	1 pc
6	PLC Control Panel	1 pc
7	Supporter Table	1 set (Two pieces, 1.5m/piece)
8	Tool Box	1 pc
