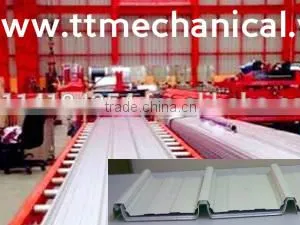

Kliplock rollforming machine

Specifications

1-Technical specifications :

- Electric requirement         : 380V/3ph/50Hz

- Hydraulic motor power     : 15 KW

- Weight of machine           : 10 tones

- Dimension                        : L= 13.0 m; W= 2.1 m; H= 1.6 m

- Roll forming speed           : 15-20MPM

- Max .thickness of material: 0.25 - 0.70mm

- Material Yield Strength     : 550 Mpa

- Tolerance of length           : +/- 1.5mm

- PLC& Touch panel           : SIEMENS (Germany)

- O.D of shaft                      : 75mm, the material is S45C

- Encoder  360 ppr              : KUBLER(Germany)

- Hydraulic system              : YUKEN(Japan)

- Electric motor                   : SIEMENS (Germany)/Mitsubishi( Japan)

-The chassis of machine made from medium duty welded steel I 400 steel  and  the frame is heavy duty welded box construction.

2-Features :

- Inter-convert automatically levels of speed when stop and start.

- Control system of machine : Stop to cut and holes punching digital length, position and bath ,multi orders by PLC and  Siemens

  touch panel (999 programs).

- Signal feedback from encoder showing current length of product and holes position compare with range

- Before finishing each order has alert to pre-cut

- The rollers made of S45C base material solid form CNC precision machined , through hardened with hard chrome finish get

   hardness 50HRC.

- Pre-cut, profile cut  by stationary hydraulic : The cutting dies  made of SKD 11 base material solid form

  CNC wire cutting machined , through hardened get hardness 60HRC.

- Emergency stopping system  to safe user.

-The hydraulic system of machine is equipped with air cooling system allows the machine working continuously from 12 to 16

  hours per day.

- A synchronous un coiler speed with roll forming speed
