Specifications
High Quality steel water downpipe roll forming machine, downpipe rollforming machine, roll forming machine.High Quality downpipe forming machine,
steel water downpipe roll forming machine,
roll forming machine

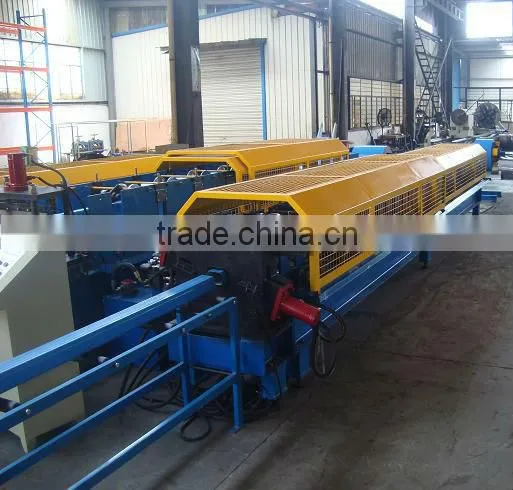

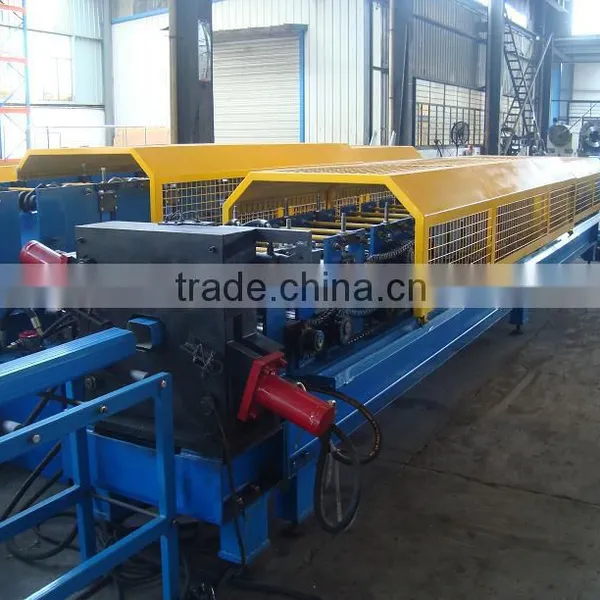

METAL DOWNPIPE FORMING MACHNE

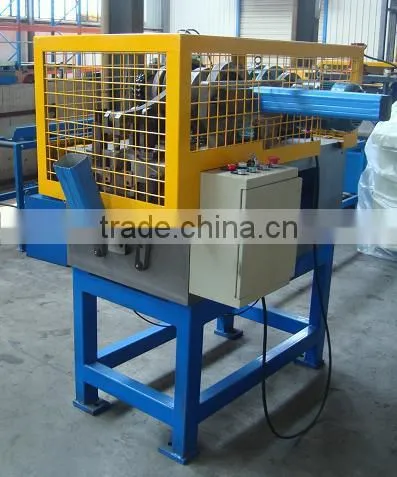

DOWNPIPE CURVER (price added)
1. Components of steel water downpipe roll forming machine
The roll forming machine includes manual uncoiler unit, sheet guiding equipment, roll forming system, cutting equipment, hydraulic station, electric controlling system and run out supporting table.
2. Technical Parameters
Material Spec: aluminum, coated aluminum, galvanized and painted galvanized steel sheet;
Thickness: 0.3 mm to 0.8mm;
Main motor power: 7.5 kw;
Hydraulic station power: 4 kw;
Feeding width: 398mm;
Cover width: Model# WLFM89-118 is 118mm;
Coil stress: Q235 Mpa(33KSI); maximum stress yield is Q345Mpa (50KSI);
Roll forming Speed: 10~12 m/min.;
Cutting Tolerance: ≤±2mm;
Manual Uncoiler: max. Capacity: 3000kgs;
Type of cutting: roll-formed and length-set cutting.
3. Material of Main Equipment
Roller Material |
High grade No.45 forged steel, Coating with hard chrome |
Active Shaft Material |
High grade No.45 carbon wrought steel, which can improve the integrated mechanic feature of the shaft. |
Electric Elements |
PLC control panel, transducer imported from Mitsubishi of Japan. Other elements are from famous suppliers of China. |
Cutter blades |
Cr12 mould steel with quenched treatment. |

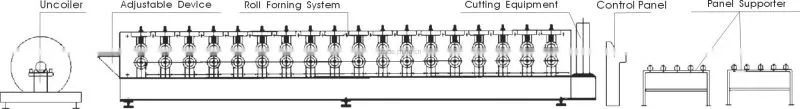

4. Process sketch
Uncoiling the sheet --- Infeed guiding --- Straightening ---Roll forming --- Measure length --- Cutting the panel ---
Panels to the supporter (option: automatic stacker).

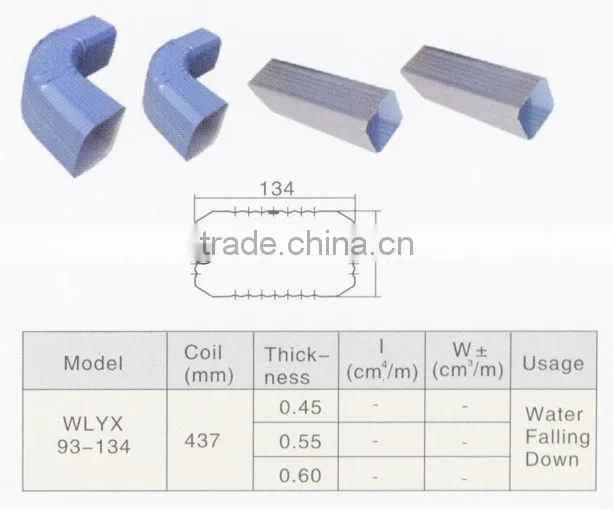

5. Series Design of Product
