High density 8 channel 100G DWDM MUX DEMUX module for 5G data center application
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
C-lens G-lens WDM CWDM DWDM Filter Component Collimator 500 Mw 60 Db 0.2 Db 0-500 Nm Single Dual Fiber Collimator 1.8,3.2 CN;GUA
-
10/100/1000M LC SC transceiver Fast Gigabit Fiber Optic Media Converter
-
Single Mode Duplex Fiber Optic SFP to SFP Fast Ethernet Media Converter
-
Ethernet Fiber Optical Media Converter 10/100/1000M SFP LC 20KM Media Converter
-
10/100/1000M Singlemode duplex SC Fiber Optic Media Converter
-
10/100/1000M single mode simplex / duplex fiber to RJ45 converter SFP media converter
Product Description
Product Description

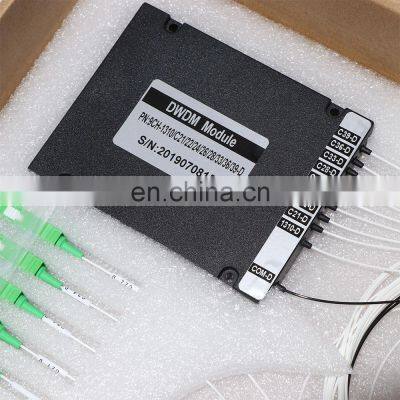

High density 8 channel 100G DWDM MUX DEMUX module for 5G data center application
DWDM multi-channel multiplexer /demultiplexer (Mux /DeMux)modules are available on ITU channel spacing of 200GHz. They demonstrate low loss, temperature insensitivity and reliable performance in any system application.Mux/DeMux modules offer low-cost wavelength management solutions that are suitable for long haul, metro, and access application.
Parameter | 4-Channel | 8-Channel | 16-Channel | ||||||||||
Mux | Demux | Mux | Demux | Mux | Demux | ||||||||
Channel Wavelength(nm) | ITU 100GHz Grid | ||||||||||||
Channel Spacing(GHz) | 100(0.8nm) | ||||||||||||
Channel Passband (@-0.5dB bandwidth(nm) | >0.25 | ||||||||||||
Insertion Loss(dB) | ≤1.8 | ≤3.7 | ≤5.5 | ||||||||||
Channel Uniformity(dB) | ≤0.6 | ≤1.0 | ≤1.5 | ||||||||||
Channel Ripple(dB) | <0.3 | ||||||||||||
Isolation(dB) | Adjacent | N/A | >30 | N/A | >30 | N/A | >30 | ||||||
Non-adjacent | N/A | >40 | N/A | >40 | N/A | >40 | |||||||
Insertion Loss Temperature Sensitivity(dB/℃) | <0.005 | ||||||||||||
Wavelength Temperature Shifting (nm/℃) | <0.002 | ||||||||||||
Polarization Dependent Loss(dB) | <0.1 | <0.1 | <0.15 | ||||||||||
Polarization Mode Dispersion(ps) | <0.1 | ||||||||||||
Directivity(dB) | ≥50 | ||||||||||||
Return Loss(dB) | ≥45 | ||||||||||||
Maximum Power Handling(mW) | 300 | ||||||||||||
Opterating Temperature(℃) | -5~+75 | ||||||||||||
Storage Temperature (℃) | -40~+85 | ||||||||||||
Package dimension(mm) | A: L100×W80×H10 | ||||||||||||
B: L120×W80×H18 | |||||||||||||
C: L141×W115×H18 | |||||||||||||
