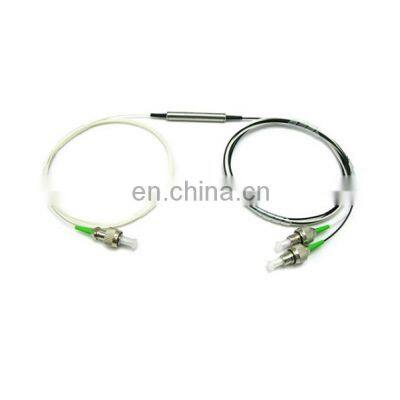

1x2 1310 1490 1550nm Optical Receiver Epon Edfa Filter Cwdm photo-3

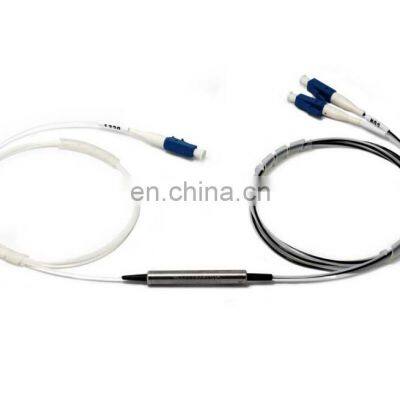

1x2 1310 1490 1550nm Optical Receiver Epon Edfa Filter Cwdm photo-4
1x2 1310 1490 1550nm Optical Receiver Epon Edfa Filter Cwdm photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1994
Annual Export Value:
US$2.5 Million - US$5 Million
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description
1x2 1310 1490 1550nm optical receiver epon edfa filter cwdm

APPLICATION

CWDM Channels Add/Drop CWDM CATV Fiber Optical Links Accessing LAN Networks Short-Distance Communications

FEATURES

1)Low Insertion Loss 2)Excellent Channel Isolation 3)High Stability & Reliability 4)Low Cost

DYS is a manufacturer for famous WDM users and customers. We continuously tried to improve product quality, introducing OPTRUN coating machine from Japan , and have coating capacity ,which make the film stable and good quality , The WDM full parameter testing system,which has been developed by our team,has highly improve the WDM device and modules testing efficiency and data integrated services. we also do vertical integration ,this ensure the high quality and delivery in time.We accumulated product development and managerial experience in fiber optic field to satisfy different requirements. Coarse Wavelength Division Multiplexing (CWDM) is an excellent choice for increasing bandwidth capacity while keeping costs down. The 6com splice/pigtailed ABS module family, based on standard Thin Film Filter (TFF) technology with a proprietary packaging, offers you smallest component dimensions combined with an outstanding performance and reliability. Our CWDM MUX DEMUX are perfectly suited to transport PDH, SDH / SONET, ETHERNET services over WWDM, CWDM and DWDM in optical metro edge and access networks.
Product Parameters
Item
Unit
Parameters
Channel spacing
20 nm ITU grids
Wavelength range
nm
1260 to 1620
Channel centers (ITU or ITU+1)
nm
1270/1290…1610 or 1271/1291…1611
Passband
nm
≥+/-6.5 ,7.0,7.5
Passband ripple
dB
≤0.35
Transmission insertion loss
dB
≤0.70 (Typical 0.50)
Reflection insertion loss
dB
≤0.40
Transmission isolation (adj channel)
dB
≥30
Transmission isolation (non-adj channel)
dB
≥45
Reflection isolation
dB
≥13
Polarization dependent loss
dB
≤0.1
Polarization mode dispersion
ps
≤0.2
Thermal Stability
dB/°C
≤0.005
Directivity
dB
≥50
Return loss
dB
≥45
Optical power handling
mW
≤300
Tensile Load
N
≥5
Operating temperature range
°C
-5 to 70
Storage temperature range
°C
-40 to +85
Fiber type
SMF-28e
Package dimension
mm
≤5.5 x 34
Parameter
4-Channel
8-Channel
16-Channel
Mux
Demux
Mux
Demux
Mux
Demux
Channel Wavelength（nm）
ITU 100GHz Grid
Channel Spacing（nm）
100
Channel Passband (@-0.5dB bandwidth(nm)
>0.25
Insertion Loss（dB）
≤1.8
≤3.7
≤5.5
Channel Uniformity（dB）
≤0.6
≤1.0
≤1.5
Channel Ripple（dB）
<0.3
Isolation（dB）
Adjacent
N/A
>30
N/A
>30
N/A
>30
Non-adjacent
N/A
>40
N/A
>40
N/A
>40
Insertion Loss Temperature Sensitivity(dB/℃)(dB/℃)
<0.005
Wavelength Temperature Shifting (nm/℃)
<0.002
Polarization Dependent Loss（dB）
<0.1
<0.1
<0.15
Polarization Mode Dispersion（ps）
<0.1
Directivity（dB）
≥50
Return Loss（dB）
≥45
Maximum Power Handling（mW）
300
Opterating Temperature(℃)
-5~+75
Storage Temperature (℃)
-40~+85
Package dimension(mm)
A: L100×W80×H10
L120×W80×H18
L141×W115×H18
