Optic Technology CWDM With ABS Package 2/4/8/16 Channel Mux/Demux Down
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
- ABS Box 8 Channel 16 Channel CWDM Module 8CH 16CH CWDM Mux Demux
- 1470nm~1610nm 8-CH CWDM 8 Channel CWDM Mux Demux Module
- Channel CWDM Splitter 8CH 16CH Optical CWDM Mux Demux CWDM Module 8 Channel 16 0.5m, 1m or Customized 0.9mm 20nm 100x80x10mm
- 40CH 100GHz Flat-top Athermal AWG DWDM MUX DEMUX Module
- DWDM Mux/Demux Athermal AWG Module 40 Channel AWG
- Flat top/Gaussian Filter 40 Channel AAWG Module 40 CH 100GHz Athermal AWG Module
Product Description
Product Description

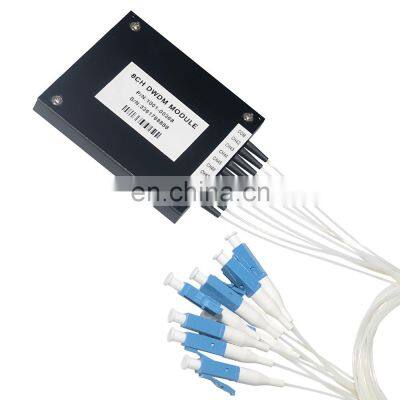

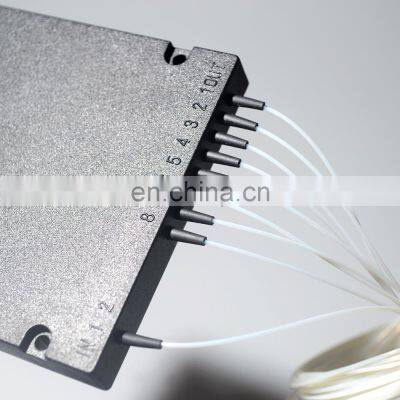

Optic Technology CWDM With ABS Package 2/4/8/16 Channel Mux/Demux Down
DYS is a manufacturer for famous WDM users and customers. We continuously tried to improve product quality, introducing OPTRUN coating machine from Japan , and have coating capacity ,which make the film stable and good quality , The WDM full parameter testing system,which has been developed by our team,has highly improve the WDM device and modules testing efficiency and data integrated services. we also do vertical integration ,this ensure the high quality and delivery in time.We accumulated product development and managerial experience in fiber optic field to satisfy different requirements.
Coarse Wavelength Division Multiplexing (CWDM) is an excellent choice for increasing bandwidth capacity while keeping costs down. The 6com splice/pigtailed ABS module family, based on standard Thin Film Filter (TFF) technology with a proprietary packaging, offers you smallest component dimensions combined with an outstanding performance and reliability.
Our CWDM MUX DEMUX are perfectly suited to transport PDH, SDH / SONET, ETHERNET services over WWDM, CWDM and DWDM in optical metro edge and access networks.
APPLICATION
CWDM Channels Add/Drop
CWDM
CATV Fiber Optical Links
Accessing LAN Networks
Short-Distance Communications
FEATURES
1)Low Insertion Loss
2)Excellent Channel Isolation
3)High Stability & Reliability
4)Low Cost
Item | Unit | Parameters |
Channel spacing | 20 nm ITU grids | |
Wavelength range | nm | 1260 to 1620 |
Channel centers (ITU or ITU+1) | nm | 1270/1290…1610 or 1271/1291…1611 |
Passband | nm | ≥+/-6.5 ,7.0,7.5 |
Passband ripple | dB | ≤0.35 |
Transmission insertion loss | dB | ≤0.70 (Typical 0.50) |
Reflection insertion loss | dB | ≤0.40 |
Transmission isolation (adj channel) | dB | ≥30 |
Transmission isolation (non-adj channel) | dB | ≥45 |
Reflection isolation | dB | ≥13 |
Polarization dependent loss | dB | ≤0.1 |
Polarization mode dispersion | ps | ≤0.2 |
Thermal Stability | dB/°C | ≤0.005 |
Directivity | dB | ≥50 |
Return loss | dB | ≥45 |
Optical power handling | mW | ≤300 |
Tensile Load | N | ≥5 |
Operating temperature range | °C | -5 to 70 |
Storage temperature range | °C | -40 to +85 |
Fiber type | SMF-28e | |
Package dimension | mm | ≤5.5 x 34 |
