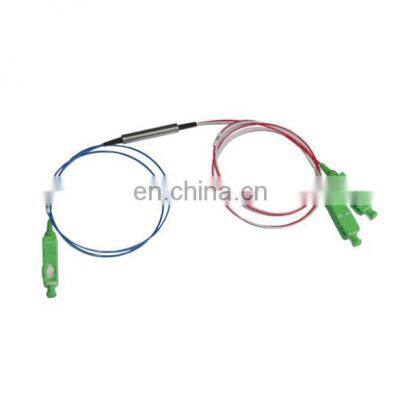

Polarization Maintaining PM FBT Couplers PM Optical Splitters
DYS Polarization Maintaining (PM) Products features low insertion loss, high return loss, wide pass band, high isolation, high extinction ratio, high reliability and stability. They are extensively used in optical amplifier, power monitoring, fiber sensors, WDM system, fiber optic systems testing, CATV and laboratory.
Features and Application
| Features | Applocations |
| Low excess loss | Optical amplifer |
| Varous couling ratio | Optical network |
| Wide pass band | Power monitoring |
| High stability and reliability | Fiber sensor |
| Epoxy free on optical path |
Technical Specification
| Parameter | 1×2 | 2×2 | |||||||||
| Center Wavelength(nm) | 1310 or 1550 | ||||||||||
| Bandwidth(nm) | ±40 | ||||||||||
| Maximum Insertion Loss(dB) | Split Ratio | Split Ratio | |||||||||
| 1:99 | 5:95 | 10:90 | 40:60 | 50:50 | 1:99 | 5:95 | 10:90 | 40:60 | 50:50 | ||
| 21/0.8 | 14/0.9 | 11.5/1.1 | 4.6/2.6 | 3.6 | 21/1.0 | 14/1.1 | 11.8/1.3 | 4.8/1.3 | 4.0 | ||
| Max.Excess Loss(dB) | 0.7 | 1.0 | |||||||||
| Max.Uniformity(dB) | 0.4 | 0.6 | |||||||||
| Tap Ratio | 1%,2%,5%,10%,40% and 50% | ||||||||||
| Mini.Extintion(dB) | only for B type | 20 | 18 | ||||||||
| only for F type | 22 | 22 | |||||||||
| Typical Return Loss(dB) | ≥50 | ||||||||||
| Power Handing(mW) | 500 | ||||||||||
| Max.Tensile Load(N) | 5 | ||||||||||
| Operation Temperature(℃) | -10~+70 | ||||||||||
| Storage Temperature(℃) | -40~+85 | ||||||||||
| Fiber Type | PM Panda fiber for in/out,SMF-28 for Tap Port | ||||||||||
| All PM Panda fiber | |||||||||||
| Dimension(mm) | Φ5.5×L35 | ||||||||||
1.The PM fiber and the connector key are aligned to the slow axis.
2.The devices with connectors,insertion loss will be 0.3dB higher,RL will be 5dB lower,and ER will be 2dB lower.
3.The above specifications are for device without connector.
