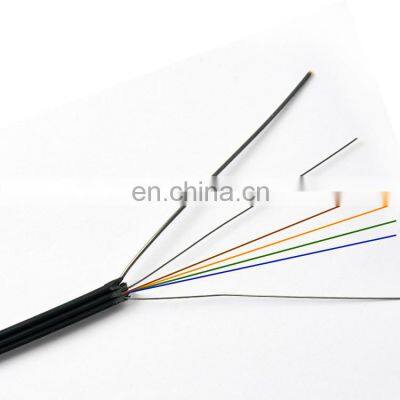

Optical fiber FTTH drop cable 4 core self-supporting fiber optic cable

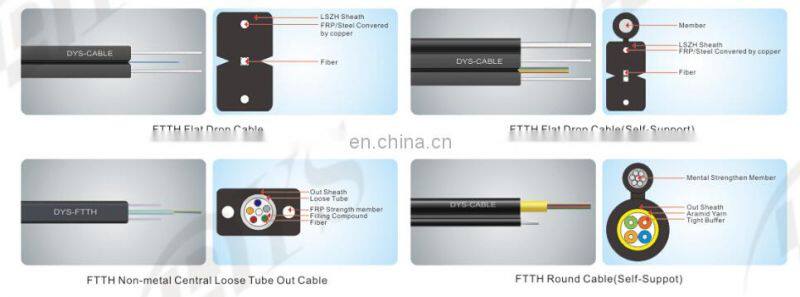

FTTH drop cable with easy accessibility to the fiber and simple installation, FTTH cable can be directly connected to the homes. It is suitable for connecting with communication equipment, and used as access building cable in premises distribution system. The optical fibers are positioned in the center. Two parallel Fiber Reinforce Plastic (FRP) strength members are placed at the two sides. Then, the cable is completed with LSZH sheath.
Cable Characteristics
1.Novel groove design, easily strip and splice, simplified installation and maintenance, higher tensile strength
2.Suitable as cable extending from outdoor (as aerial cable) to indoor
3.Low smoke, zero halogen and flame retardant sheath, environment-friendly good safety
Cable Technical Parameters
| Model | FTTH drop cable | |
| Fiber Count | 4 | |
| Outer diameter (mm) | (2.0±0.2)×(5.0±0.3) | |
| Nominal weight(kg/km) | 21.7 | |
| Max.tensile Strength(N) | Short-term | 400 |
| Long-term | 200 | |
| Min.Bending Radius(mm) | Dynamic | 15D |
| Static | 7.5D | |
| Max.Crush Resistance(N/100mm) | Short-term | 2200 |
| Long-term | 1000 | |
| Jacket | LSZH | |
| Color | Cable | Black |
| Fiber | Blue,Orange,Green,Brown | |
| Strength Members | 2×0.5mm FRP & 1.0mm FRP | |
| Environmental Protection | RoHS COMPLIANT | |
| Temperature range | Storage or transportation | -20~70℃ |
| Operation | -20~70℃ | |
| Installation | 0 ~ 50℃ | |
Shenzhen DYS Fiber Optic Technology is a leading company in developing and manufacturing advanced fiber optic products,mainly offer fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. DYS win the the honorary title of National High-tech enterprise by Shenzhen government in 2014.

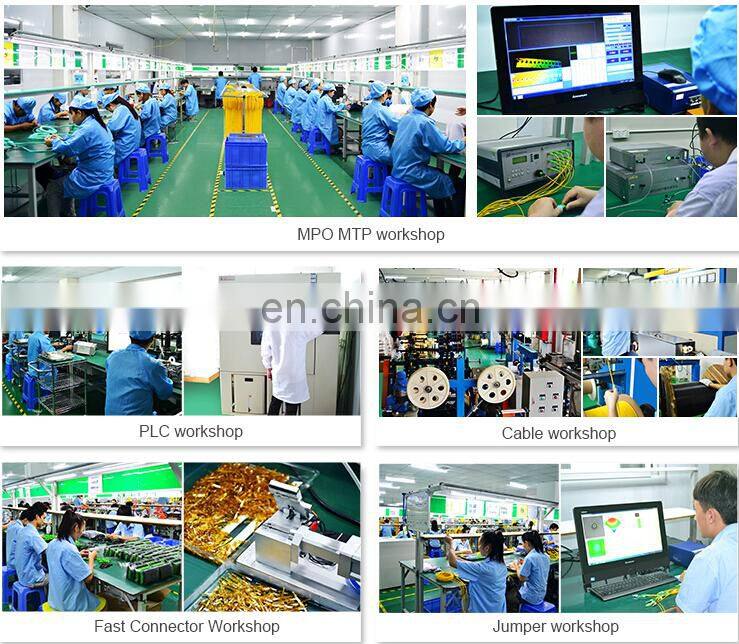

With years of experiences in the fiber optic industry, our factory is fully equipped over 3500 square meters and more than 18 non dust production lines .About 200 well-trained staff and engineers are contributing to our proud products. We have 4 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 8 production lines for standard jumper and 10 PLC Splitter production lines.
The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on.
All of our optical products are RoHS compliant and DYS also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, DYS fiber optic is looking forward to cooperate with you.
