Indoor 12 Core Fiber Optic Single Mode Distribution Cable, Ftth Indoor Break-out Cable

Indoor 12 Core Fiber Optic Single Mode Distribution Cable, Ftth Indoor Break-out Cable photo-1
Indoor 12 Core Fiber Optic Single Mode Distribution Cable, Ftth Indoor Break-out Cable photo-2
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1994
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

DESCRIPTION

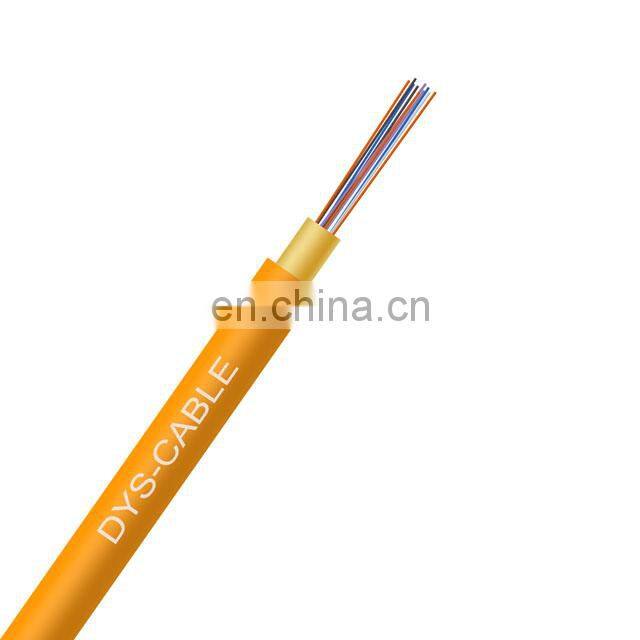

1.Distribution Optical Fiber Cable



2.The multi-fiber distribution indoor cable is cabled with a PVC sheath or LSZH outer sheath after  the single mode ormulti-mode single-core tight-buffered optical fiber



3.The cable coreintert wisted with several high-strength aramid yarns





Features



1.Good mechanical and environmental performance;



2.Flame-retardant properties to meet the requirements of the relevant standards;



3.The mechanical characteristics meet the requirements of the relevant standards;



4.Soft,flexible,easy to splice,and with big capacity date transmission;



5.Meet various requirements of market and clients.



Parameters



Fiber Count

Cable Dimension

mm

Cable Weight

kg/km

Tensile

N

Crush

N/100mm

Min. Bend Radius

mm

Range of Temperature



Long Term

Short Term

Long Term

Short Term

Dynamic

Static

4 core

5.0

17

100

200

200

1000

20D

10D

-20-+60

6 core

5.2

21

100

200

200

1000

8 core

5.5

28

130

440

200

1000

12 core

6.5

36

200

660

200

1000

16 core

7.5

44

200

660

200

1000

24 core

8.2

60

200

1000

200

1000

48 core

12.5

130

300

1000

200

1000

Note:

1. All the values provided in the table, which are for your reference, are subject to change without notice;

2. The cable dimension and weight are in accordance with tight-buffered fiber withφ0.9mm outer diameter;

3. D is outer diameter of the round cable;

4. The minimum bend radius (static) is 5D when G.657 fiber is used.
