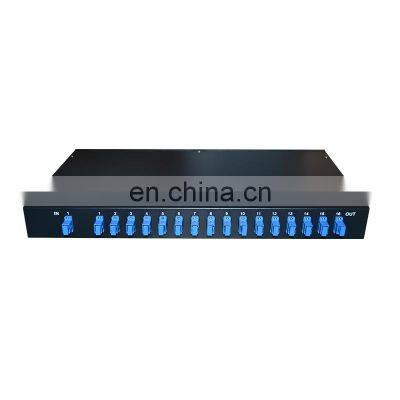

1U 19" Fiber Optic PLC Splitter 1x16 Rack Mount Patch Panel
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1994
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
3U 19\" Fiber Optical 1x2 LGX PLC Splitter Patch Panel /Rack Mount ChassisNegotiableMOQ: 1 -
High Quality Rack Mount Optical Splitter 2 32 Plc Splitter With SC APC ConnectorNegotiableMOQ: 1
-
Fiber Network Equipment FTTH ABS Box 1*3 Fiber Optic Coupler 1 x 2 1 x 4 PLC Splitter Steel Tube Fiber CirculatorNegotiableMOQ: 1
-
1x2 1x4 1x8 1 1x12 1x24 1x16 1x32 Steel Tube Bare Fiber Optic PLC Splitter With LC ConnectorNegotiableMOQ: 1
-
Factory Price FTTH Fiber Optic 1x4 1x8 1x16 Plc Splitter With LC/APC ConnectorNegotiableMOQ: 1
Product Description
19" Fiber Optical 1x16 SC/UPC GPON LGX PLC Splitter patch panel Termination distribution Box ODF Rack Mount
Description
PLC splitter is the planer wavelength integrated optic device which based on the quartz substrate, with small size, wide-field operation wavelength and high reliability and high splitter ratio features. Our company can manufacture the 1*N and 2*N all series products, and can be customized according to customer requirements in different situation.
ABS PLC splitter with SC APC connector
type PLC splitter without connector
PLC splitter with SC APC connector

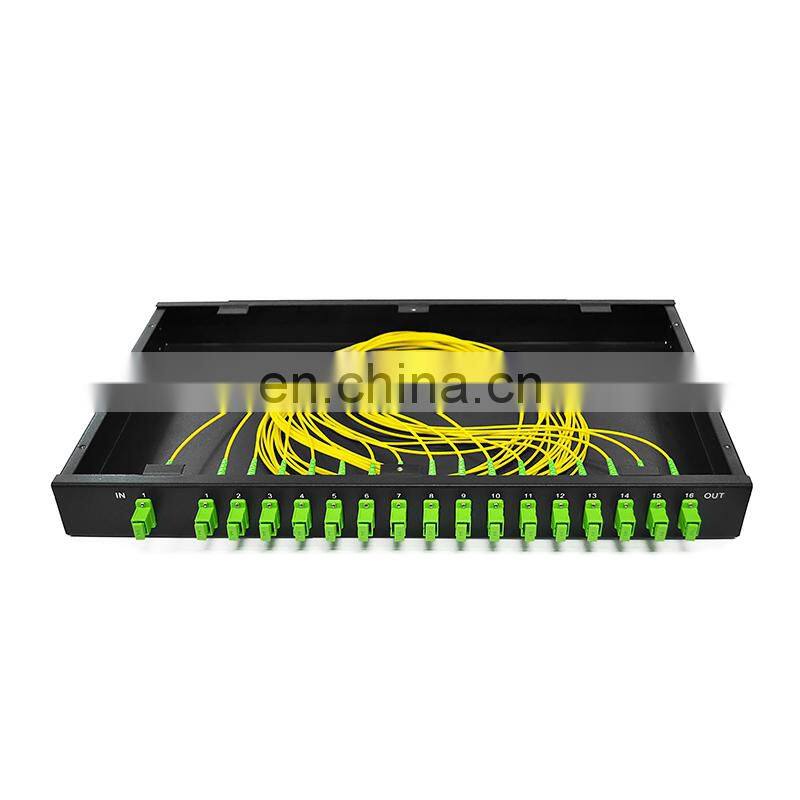

LGX PLC splitter with SC APC connector
Setting Information | |
Type | 1x16 , 1U 19" Rack Mount Splitter |
Fiber | SC/APC, G657A1 |
Length | 1M, 2M, 3M or as your request |
Cable Sheath | PVC |
Cable Diameter | 0.9/2.0/ 3.0 mm |
Warranty | 10-30 years |
Parameter/Type | Nx2(N=1or2) | Nx4(N=1or2) | Nx8(N=1or2) | Nx16(N=1or2) | Nx32(N=1or2) | Nx64(N=1or2) | |||||
Fiber | 9/125 um SMF-28e or customer appoint | ||||||||||
Operating Wavelength(nm) | 1260~1650(nm) | ||||||||||
Insertion Loss | ≤3.9dB | ≤7.1dB | ≤10.3dB | ≤13.3dB | ≤16.3dB | ≤19.8dB | |||||
Loss Uniformity(dB) | ≤0.6dB | ≤0.6dB | ≤0.8dB | ≤1.2dB | ≤1.5dB | ≤2.0dB | |||||
Polariation Dependent Loss | ≤0.15dB | ≤0.15dB | ≤0.2dB | ≤0.2dB | ≤0.2dB | ≤0.3dB | |||||
Return Loss | UPC≥50dB APC≥60dB | ||||||||||
Directivity | ≥55dB | ||||||||||
Working Temperature(℃) | -40°C to +85°C | ||||||||||
