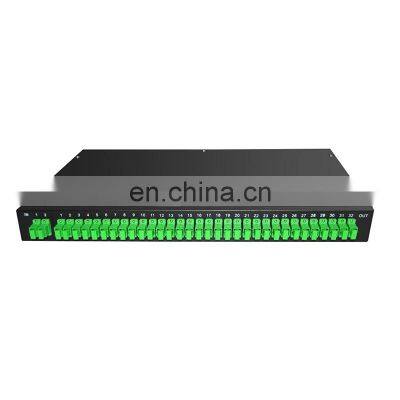

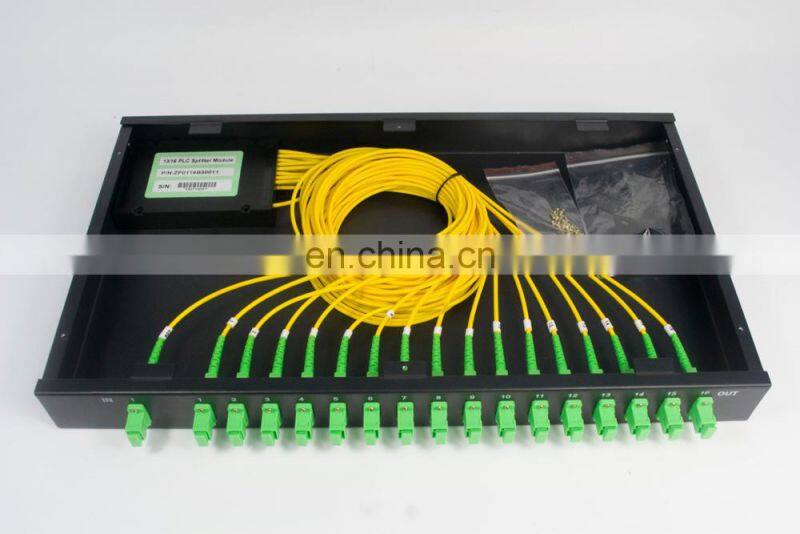

high quality Rack mount optical splitter 2 32 plc splitter with SC APC connector
Description
PLC (planar lightwave circuit) splitter is fabricated by using silica optical waveguide technology. It features wide operating wavelength range, good channel-to-channel uniformity, high reliability and small size, and is widely used in PON networks to realize optical signal power management. We provide a whole series of 1 x N and 2 x N splitters that are tailored for specific applications. All products meet Telcordia 1209 and 1221 reliability requirements and are certified by TLC for network development requirment.
Feature
Ultra-end insertion loss and associated loss of polarization
Good spectral uniformity
Wide wavelength bandwidth
Wide range of working environment
High reliability
Small
Application
FTTX Systems
GEPON Networks
CATV
Optical Signal Distribution
Technical Specification
| Parameter for PLC Splitter | |||||||
Parameter |
1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | |
Attenuation Value(dB) |
≤3.7 | ≤7.5 | ≤11 | ≤14.5 | ≤18 | ≤22 | |
Loss Uniformity(dB) |
≤0.8 | ≤0.8 | ≤1.0 | ≤1.4 | ≤1.9 | ≤2.5 | |
Return Loss(dB) |
APC | ≥60 | |||||
| UPC | ≥60 | ||||||
PDL(dB) |
≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | |
Directivity(dB) |
≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | |
Operating Temperature(oC) |
-40~85 | ||||||
Storage Temperature(oC) |
-40~85 | ||||||
Operating Bandwidth(nm) |
±40 | ||||||
Operating Wavelength(nm) |
1260~1650 |
||||||

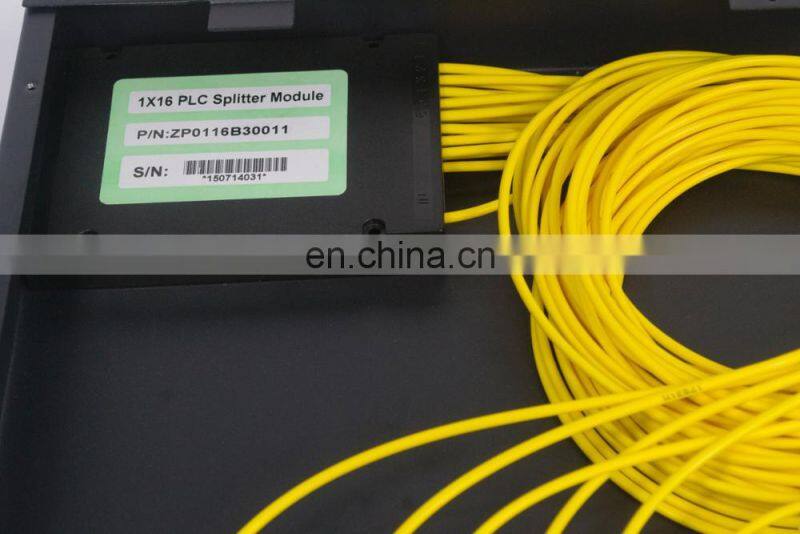

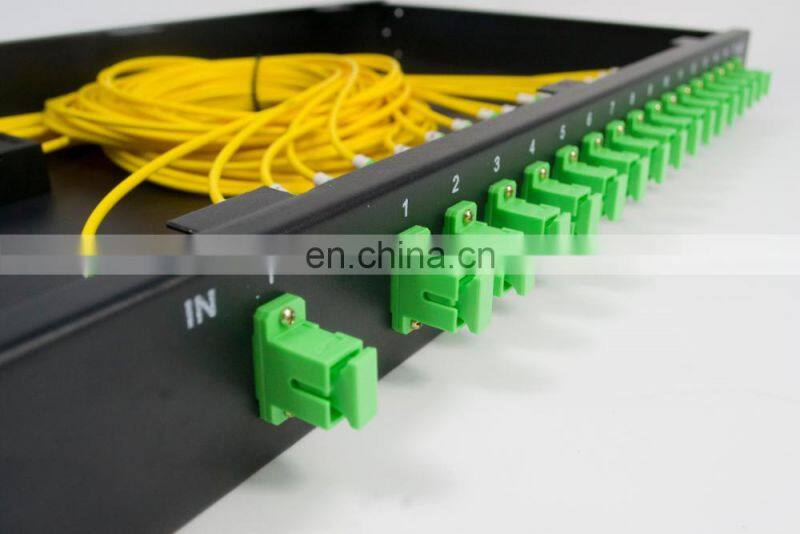

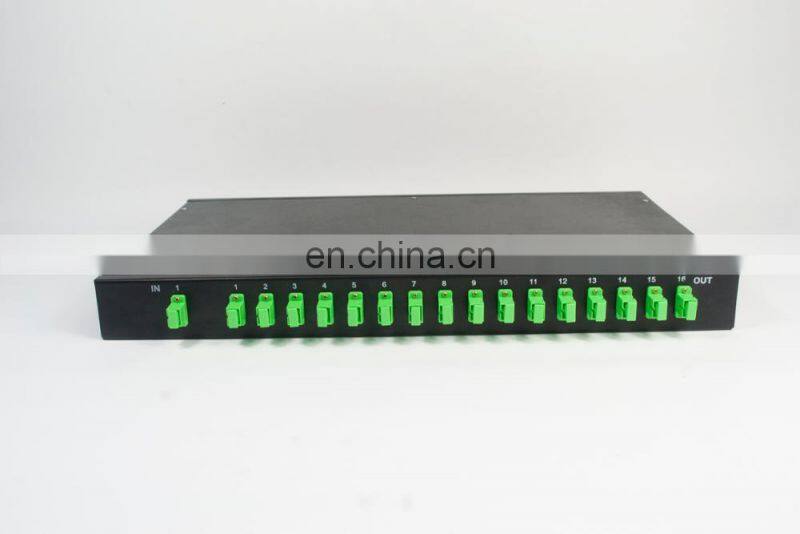

Pictures for reference

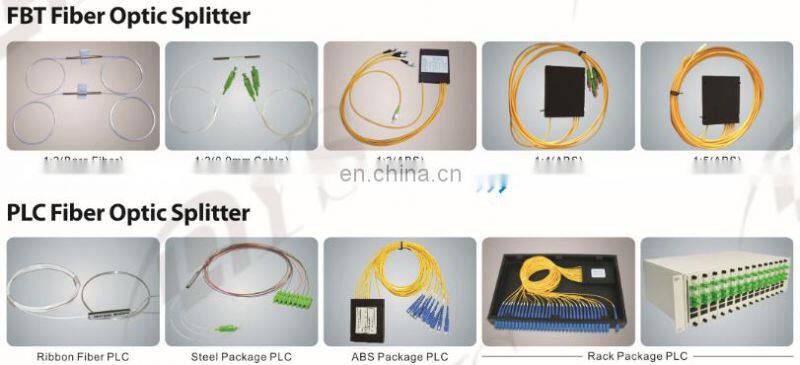

related items (Clickable)
Competitive Advantage
DYS strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, productsexported to Europe and the United States and Southeast Asian countries.
Production lines
Certificate of qualification
Why choose us :
1.Competitive price
2. Fast delivery
3.Free sample provided
4.Longtime warranty
5.Reliable quality, OEM service available
6. Professional product and technical support
7.Prompt answer for any question or inquiry
8.Value-added service: except good products, we can provide good services on logistic and other help you may need
