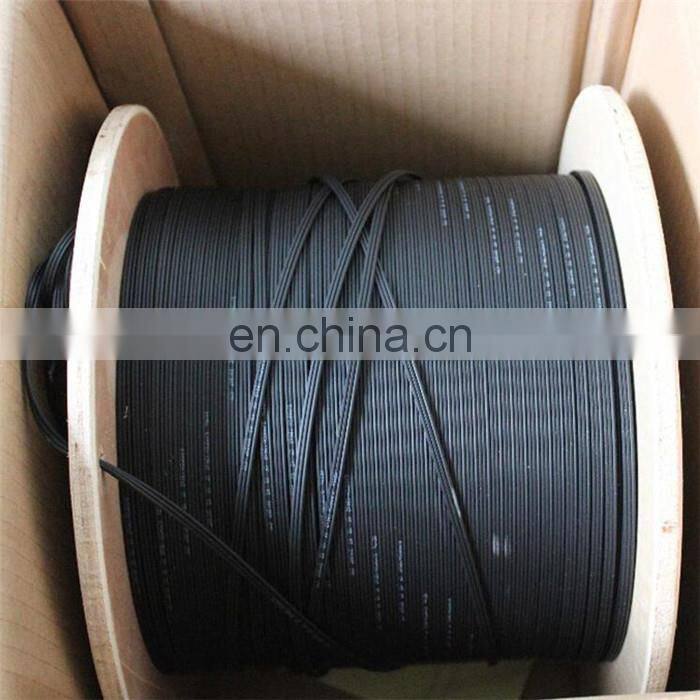

GYXTW 12 Core g652 g652d g657a g657a2 fiber optic cable outdoor
- 1000 per Month
- T/T Credit Card
- Add to CompareShare GJXH GJXCH 1,2,4,6,8,12 Cores indoor ftth drop cable fiber home
- GJXH GJXCH 1,2,4,6,8,12 Cores FTTH flat indoor/outdoor fgjyxfch g657 fiber ftth drop cabl
- good quality fiber optic cable adss fiber optic cable
- GJYXFCH fiber optic cable
- good quality fiber optic cable
- good quality fiber optic cable
Product Description

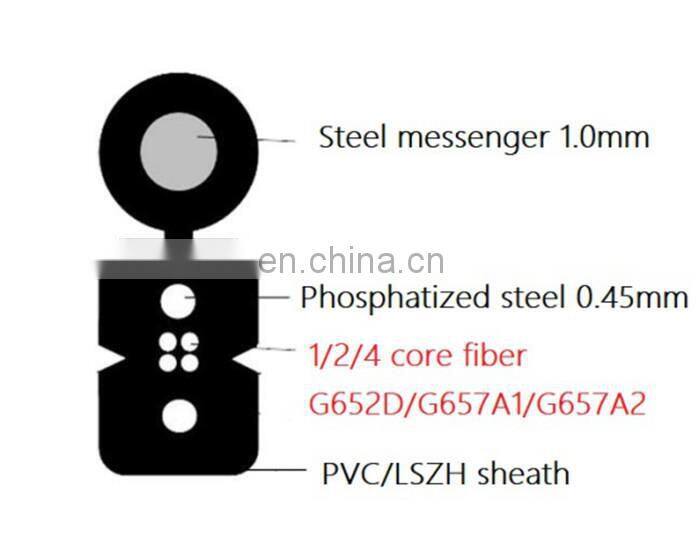

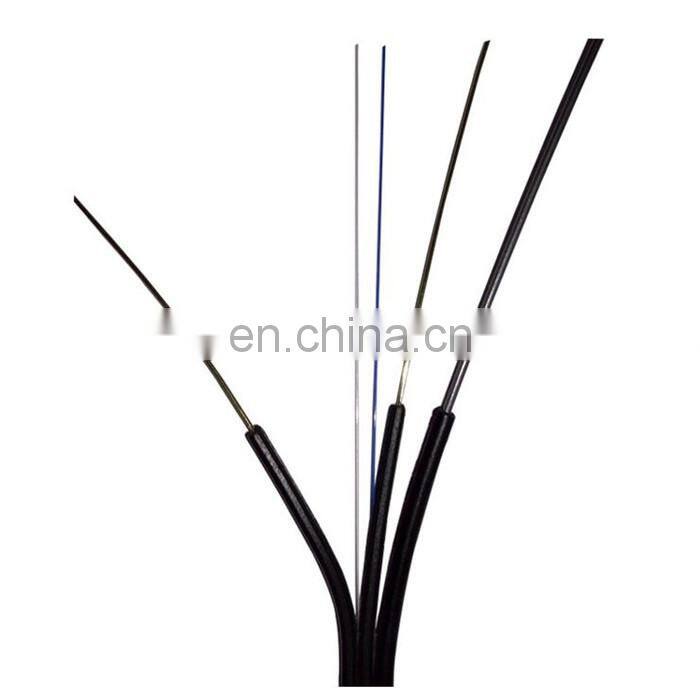

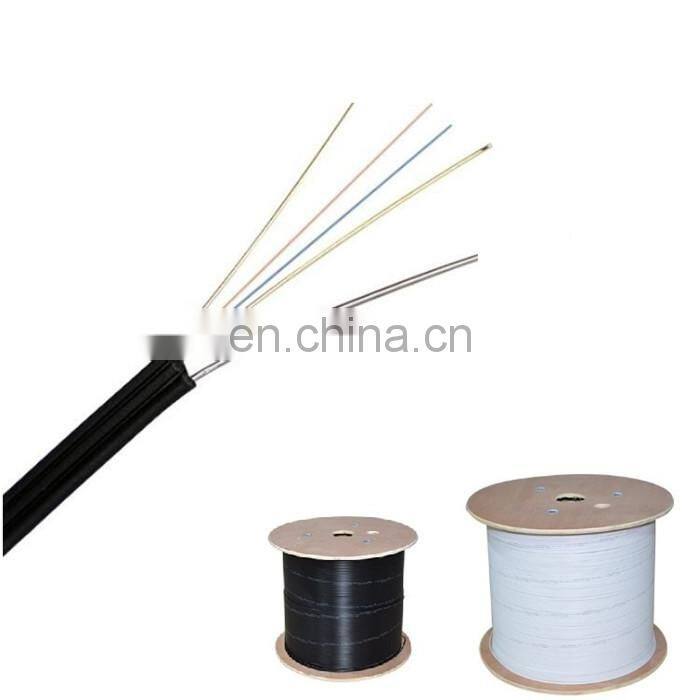

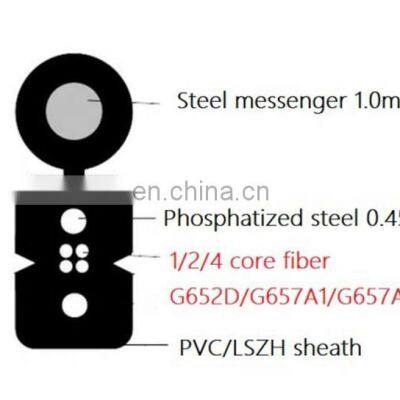

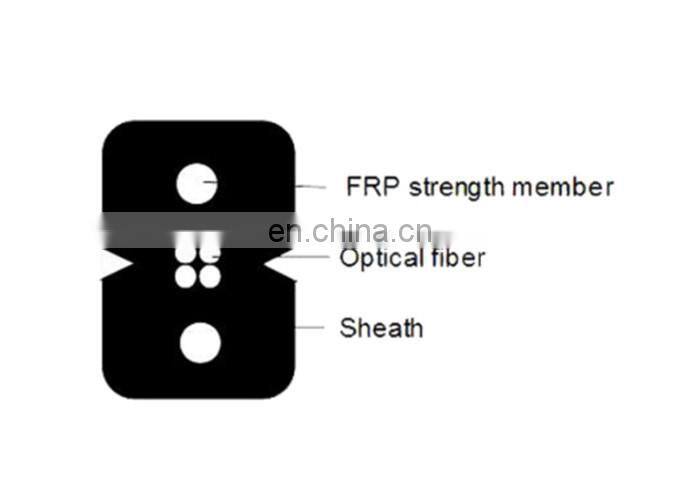

GJXH GJXCH 1,2,4,6,8,12 Cores FTTH flat indoor/outdoor fiber optic cable Drop Cable
Key Data
Indoor model |
GJXH |
Outdoor model |
GJXCH |
Jacket |
PVC or LSZH |
Cores available |
1,2,4,6,8,12 cores |
Dropping steel mesenger OD |
1x1.0mm |
Protecting inner wires(or FRP) OD |
2x0.45mm |
Jacket colors |
Black,white etc., |
Fiber Type |
G652D/G657A1/G657A2 |
Modes |
Singlemode, Multi-mode |

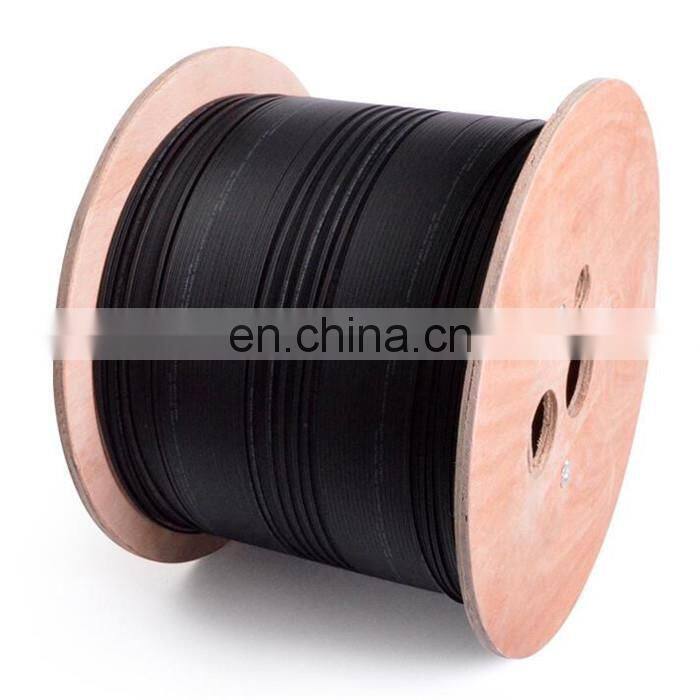

Length |
1km/2km each roll |
Fiber Parameters
No. |
Items |
Unit |
Specification |
|
G.652D |
||||
1 |
Mode Field Diameter |
1310nm |
μm |
9.0±0.4 |
1550nm |
μm |
10.1±0.5 |
||
2 |
Cladding Diameter |
μm |
124.8±0.7 |
|
3 |
Cladding Non-Circularity |
% |
≤0.7 |
|
4 |
Core-Cladding Concentricity Error |
μm |
≤0.5 |
|
5 |
Coating Diameter |
μm |
245±5 |
|
6 |
Coating Non-Circularity |
% |
≤6.0 |
|
7 |
Cladding-Coating Concentricity Error |
μm |
≤12.0 |
|
8 |
Cable Cutoff Wavelength |
nm |
λcc≤1260 |
|
9 |
Attenuation (max.) |
1310nm |
dB/km |
≤0.35 |
1550nm |
dB/km |
≤0.21 |
||
10 |
Macro-Bending Loss |
1turn×10mm radius @1550nm |
dB |
≤0.75 |
1turn×10mm radius@1625nm |
dB |
≤1.5 |
Cable Parameters
Items |
Specifications |
||
Fiber Count |
1,2,4 |
||
Colored Coating Fiber |
Dimension |
250±15μm |
|
Color |
Blue, Orange |
||
Strength Member |
Dimension |
0.5mm |
|
Material |
FRP |
||
Self-Supporting Member |
Dimension |
1.0mm |
|
Material |
Steel Wire |
||
Jacket |
Dimension |
5.2±0.2mm×2.0±0.1mm |
|
Material |
LSZH |
||
Color |
Black |
1.Professional manufacturer, 100% tested.
2.Customers solutions in days, not weeks.
3.Warmly services with careful attentions.
4.Can provide your specific inquiry within 24 hours.
5.Save much costs, bring more benefit for customer to expand business.
6.We have been 12 years experience in this field. We are the prefessional supplier that you can trust.
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 1-2 days, mass production time needs 1-2 weeks
Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our formal products.
Q5: What about delivery time?
A: 1) Samples: within one week.
2) Goods: 15-20 days usually.
