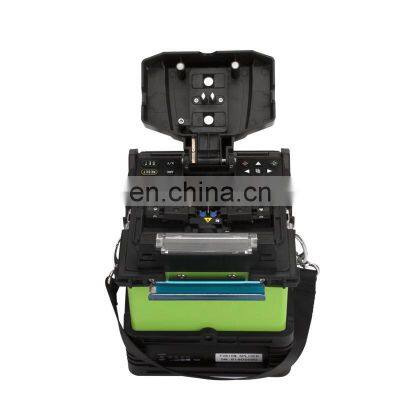

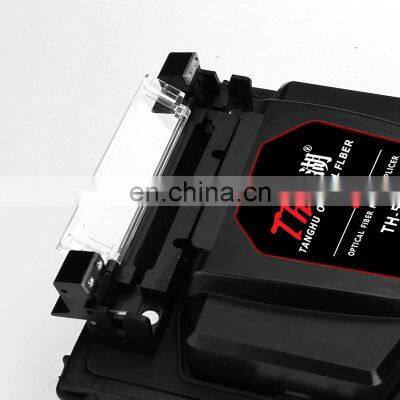

Automatic Intelligent SM MM Fiber Fusion Splicer Fiber Optic Splicing Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2014
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
OTDR 1310 1550nm 32/30dB SM With VFL OPM Light Source Fiber Optical OTDR Portable OTDRNegotiableMOQ: 1 -
Handheld SM OTDR 1310nm/1550nm 28/26dB,Integrated 2MW VFL,Touch Screen Fiber Test Instruments OTDRNegotiableMOQ: 1
-
1310/1550nm Breakpoint Fault Detector Exfo Otdr Price ,VFL FC/SC Connector OTDR Handheld Fault TesterNegotiableMOQ: 1
-
Handheld FTTH High Precision Handheld OPM Fiber Optical Power MeterNegotiableMOQ: 1
-
Rechargeable Type Handheld Mini FC Adapters Optical Power Meter Fiber TesterNegotiableMOQ: 1
Recommend Products
Product Description
Process:
The process of fusion splicing normally involves heat to melt or fuse the ends of two optical fibers together. The splicing
process begins by preparing each fiber end for fusion.
1, Stripping the fiber
The process of fusion splicing normally involves heat to melt or fuse the ends of two optical fibers together. The splicing
process begins by preparing each fiber end for fusion.
1, Stripping the fiber
Stripping is the act of removing the protective polymer coating around optical fiber in preparation for fusion splicing.
2, Cleaning the fiber
The customary means to clean bare fibers is with alcohol and wipes.
3, Cleaving the fiber
3, Cleaving the fiber
The fiber is then cleaved using the score-and-break method so that its end-face is perfectly flat and perpendicular to the axis of the fiber.
4, Splicing the fibers
Current fusion splicers are either core or cladding alignment. Using one of these methods the two cleaved fibers are automatically
aligned by the fusion splicer in the x,y plane, then are fused together.
4, Splicing the fibers
Current fusion splicers are either core or cladding alignment. Using one of these methods the two cleaved fibers are automatically
aligned by the fusion splicer in the x,y plane, then are fused together.
Parameter:

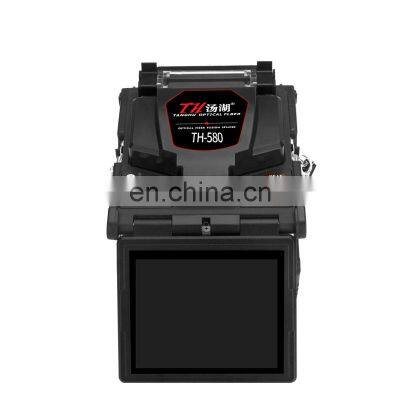

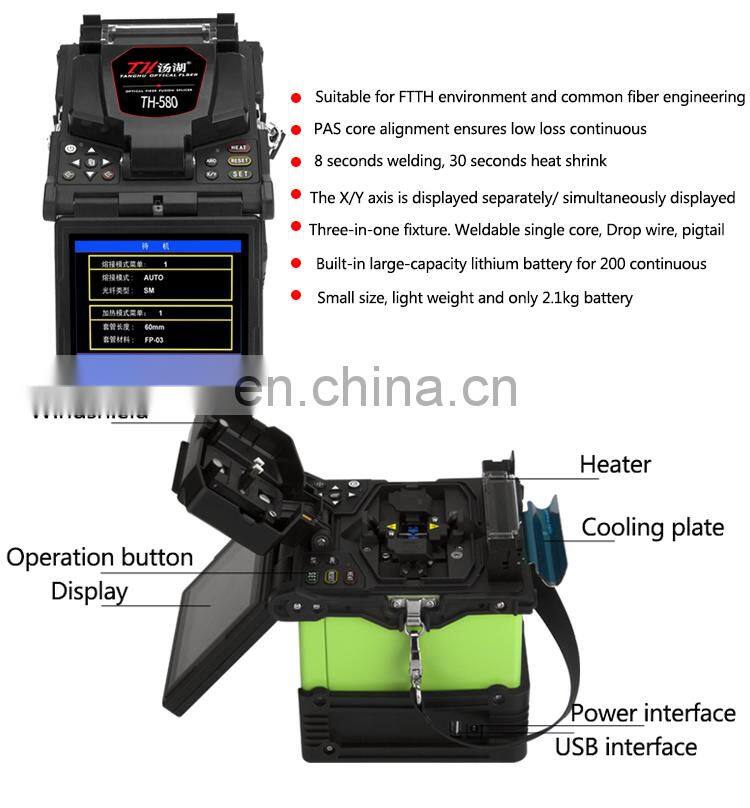

Product model | TH-580 |
Applicable fiber | SM, MM , DS, NZDS |
Cladding diameter | 80~150um |
Coating diameter | 160~900um |
Typical splice loss | SM: 0.02dB; MM: 0.01dB; DS: 0.04dB; NZDS0.04dB |
Return loss | Better than 60dB |
Cutting length | 10~16mm (coated fiber diameter <250um); 16mm (coated fiber diameter 250~1000um) |
Fusion procedure | 40 groups |
Operating mode | manual, automatic |
Heating | with automatic heating |
Typical welding time | 7 seconds |
Heating time | 60mm, 40mm and other length heat shrinkable sleeve, heating time is 26 seconds |
Optical fiber amplification and display | X, Y single fiber display amplification 250 times, X, Y fiber simultaneous double display amplification 125 times |
Optical fiber observation mode | Dual high sensitivity camera, 4.3 inch 480 x 280 resolution color liquid crystal display |
Welding result record | 4000 sets of welding records can be stored |
Splice loss | Automatic evaluation |
Pull test | 1.8~2.2N |
Operation interface | GUI graphical menu interface, easy to operate |
Battery capacity | 5800mH, 180 times welding, heating, pluggable replacement, real-time power monitoring |
Power supply | external adapter, input: AC100-240V (50/60HZ), output: DC11~13.5V |
Electrode life | more than 4,000 times can be welded, the user can easily replace the electrode |
Interface | USB2.0 interface, export fusion record, software upgrade |
Operating environment | Altitude: 0~5000m; Relative humidity: 0~95% Temperature: -10°C~+50°C; Wind speed: 15m/s |
Volume/weight | 149mm (L) × 120mm (W) × 127mm (H) / 1.9Kg (including battery) |
Company Introduction
Shanghai Tanghu Optical Fiber Equipment Co., Ltd. is a high-tech enterprise specializing in the production of optical
communication products, with nearly 20 years of industry experience.At present, the company has passed the ISO9001 certification,has two production bases in Shenzhen and Xuzhou, and has a large modern warehouse in Shanghai.The company covers an area of 20000 m2, with more than 500 employees and annual sales of more than 300 million RMB.
communication products, with nearly 20 years of industry experience.At present, the company has passed the ISO9001 certification,has two production bases in Shenzhen and Xuzhou, and has a large modern warehouse in Shanghai.The company covers an area of 20000 m2, with more than 500 employees and annual sales of more than 300 million RMB.
Company has roboticized production and testing equipment, since its inception, the company has been committed to product innovation and R&D, the products include cable, patch cord, optical transceiver, POE switch, OPM, VFL, optical fiber fusion splicer, optical divider, fiber boxes, etc., which are widely used in the plot construction of campus network, security, monitoring, radio and television transmission, FTTH, etc.
The products are exported in large quantities to more than 60 countries and regions including the USA, Australia, India, Russia, Brazil and South Africa and so on, providing innovative technologies and product solutions for global telecom operators and enterprise network customers, and enabling users around the world to enjoy all-round communication such as voice, data, multimedia and wireless broadband.
Certifications
Exhibition
Customer feedback
FAQ
Q: What about delivery time?
A: We have big warehouses in Shanghai, also in Shenzhen factory, providing instant delivery service. Most products can be
delivered within 3~7 days.
Q: What is your warranty period?
delivered within 3~7 days.
Q: What is your warranty period?
A: We provide one year of unconditional warranty on our products for the manufacturing defects.
Q: Why should we buy from you?
Q: Why should we buy from you?
A: We are committed to provide best quality products at minimum delivery time and competitive price. We believe this is what customer wants. We are satisfied until customers are.
Q: Can you provide OEM, ODM service?
Q: Can you provide OEM, ODM service?
A: Yes. We have factories in Shenzhen and Xuzhou, we can make products according to your requirements.
Q: Do you provide free samples?
A: Yes, but the buyer should bear the shipping costs.
Q: What is your payment terms?
A: We accept Alibaba Trade Assurance, Western Union, Paypal, T/T, L/C, etc.
A: We accept Alibaba Trade Assurance, Western Union, Paypal, T/T, L/C, etc.
