Handheld FTTH High Precision Handheld OPM Fiber Optical Power Meter
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Rechargeable Type Handheld Mini FC Adapters Optical Power Meter Fiber Tester
-
One Press Down Type Fiber Optic Cleaning Tool 210mL Fiber Optical Alcohol Bottle
-
OPM Fiber Optic Cable Power Meter +26-50 dBm TLD6070B Handle Optical Power Meter
-
Portable All-In-One Fiber Optic Power Meter With 10km Laser Source Visual Fault Locator 10m
-
140KM Handheld OTDR AOR500-S OTDR 24 dB/22 dB Integrated VFL 1310nm/1550nm Optical Time Domain Reflectometers
-
Handheld 120KM 1310/1550nm OTDR Integrated VFL TMO-300 Touch Screen Optical Time Domain Reflectometer
Product Description
Related Products
Product Description
Power Measurement Range(dBm) | -70~+10 | -50~+26 | |
Wavelength Range(nm) | 800~1700 | ||
Calibration Wavelength nm | 850,1300,1310,1490,1550,1625 | ||
Type of probe | InGaAs | ||
Measurement Accuracy | <±3%(-10dBm,22°C) | ||
Display resolution dB | Linear Display: 0.1%, logarithmic display: 0.01dBm | ||
Working Temperature (°C) | -10~+50 | ||
Storage Temperature(°C) | -20~+70 | ||
Relative humidity | 90% (+30 °C), non-condensing | ||
Optical Interface | FC,SC(ST LC optional) | ||
power supply | 3 AAA Battery | ||
Battery operating time (h) | 120h | ||
Automatic shutdown time (min) | 10 | ||
weight g | 200 | ||
size mm | 130×63×29 | ||
Description:
TL510 Optical Power Meter has TL510A TL510C two models according to the power and the detection range
TL510A: -70 ~ +10 dBm, used data communications field
TL510C: -50 ~ +26 dBm, used in radio and television, video monitoring field

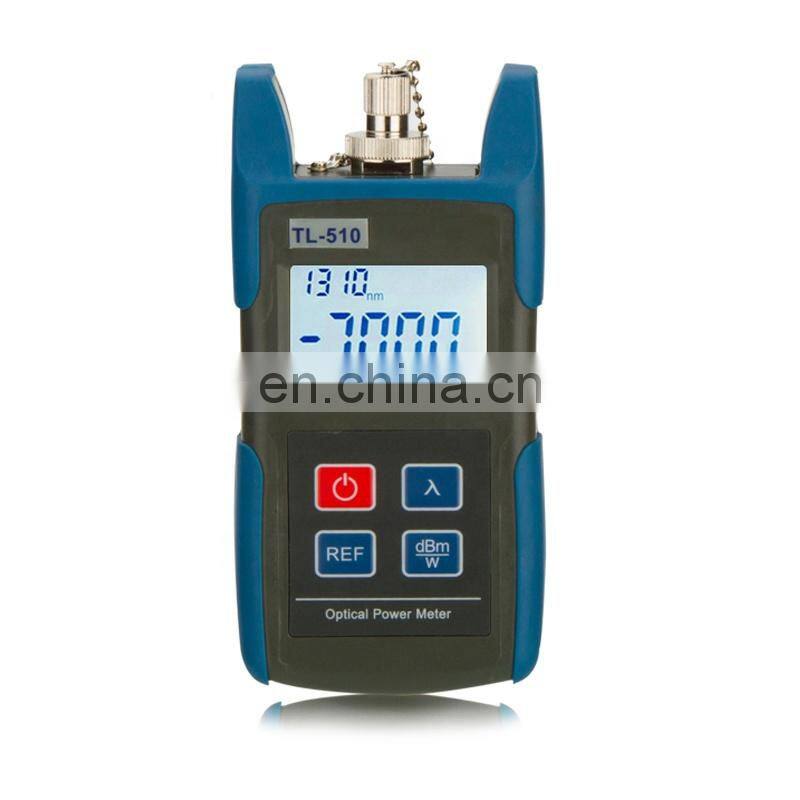

The TL510 mini handheld optical power meter is an accurate, durable and convenient portable test instrument specially designed for
the installation, operation and maintenance of optical network.With the advantage of smart appearance, optional switch backlight
display, automatic shutdown function, a wide range of optical power test, accurate test accuracy and a new user self-calibration
function and universal interface design.
Features:
1. High sensitivity, large dynamic range
2. Common interface design: FC / SC / ST interface, standard FC, SC adapter interface
3. Mini-cabinet protection design, compact and generous, to prevent accidental drop damage to instrument detectors.
4. Fast response without preheating
5. Low voltage function display
6. Automatic shutdown function is optional
7. Auto off backlight function is optional
8. New user self-calibration function
9. Logarithmic power (dBm) and linear power (xW) indicators
10. Large screen and LED backlit display
Application:
Fiber optic CATV project
Optical fiber communication engineering
Research on optical fiber sensing
Production and research of optical devices
Other optical fiber projects
TL510A: -70 ~ +10 dBm, used data communications field
TL510C: -50 ~ +26 dBm, used in radio and television, video monitoring field
The TL510 mini handheld optical power meter is an accurate, durable and convenient portable test instrument specially designed for
the installation, operation and maintenance of optical network.With the advantage of smart appearance, optional switch backlight
display, automatic shutdown function, a wide range of optical power test, accurate test accuracy and a new user self-calibration
function and universal interface design.
Features:
1. High sensitivity, large dynamic range
2. Common interface design: FC / SC / ST interface, standard FC, SC adapter interface
3. Mini-cabinet protection design, compact and generous, to prevent accidental drop damage to instrument detectors.
4. Fast response without preheating
5. Low voltage function display
6. Automatic shutdown function is optional
7. Auto off backlight function is optional
8. New user self-calibration function
9. Logarithmic power (dBm) and linear power (xW) indicators
10. Large screen and LED backlit display
Application:
Fiber optic CATV project
Optical fiber communication engineering
Research on optical fiber sensing
Production and research of optical devices
Other optical fiber projects
