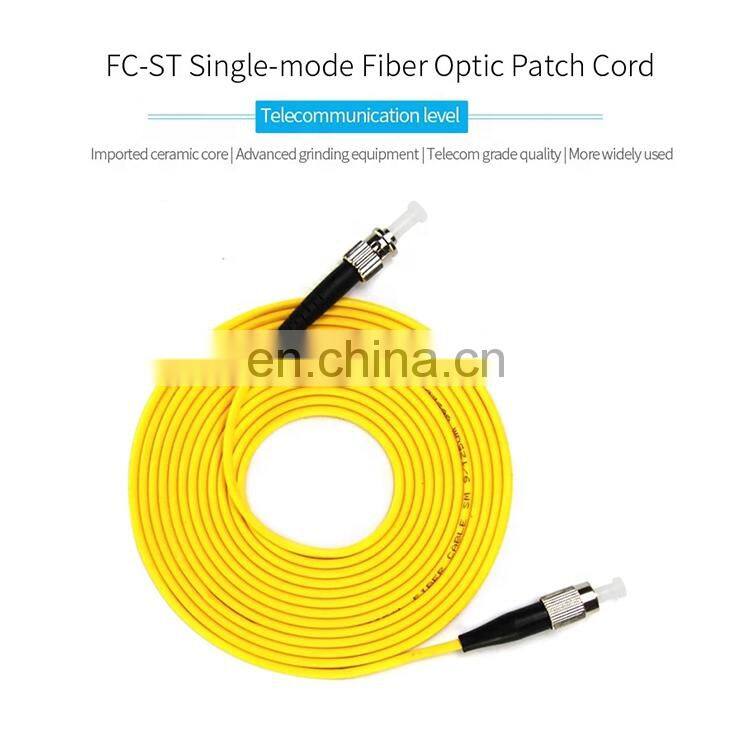

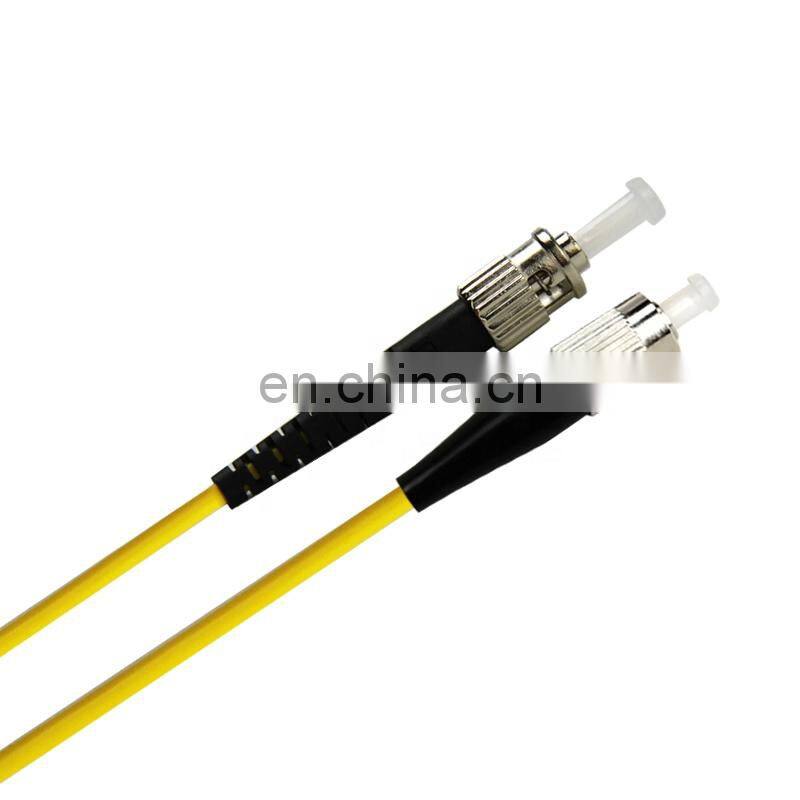

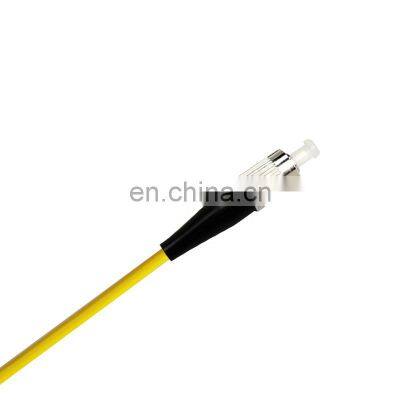

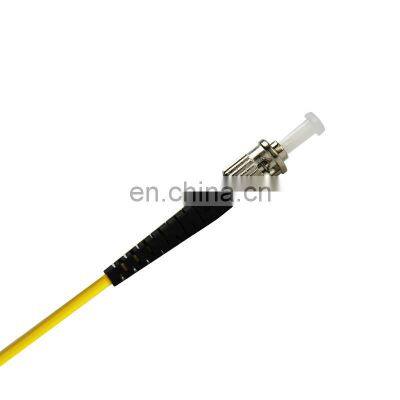

Manufacturer OEM Gigabit Single Mode FC TO ST Fiber Optic Patch Cord Jumper
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2014
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Simplex Duplex G652D SC LC FC ST Connector Jumper SM UPC PC APC 3m LSZH Fiber Optic Patch Cord For CATV NetworkNegotiableMOQ: 1 -
Factory Directly 3M OEM Single Mode Gigabit LC TO ST Optical Fiber JumperNegotiableMOQ: 1
-
Manufacturer Supply Indoor Single Mode Gigabit Simplex Duplex LC To SCFiber Optical Patch Cord CableNegotiableMOQ: 1
-
Accept OEM Order Single Mode Gigabit SC TO ST Fiber Optic Cable Patch CordNegotiableMOQ: 1
-
Manufacturer Price OEM Factory FTTH Gigabit Single Mode SC TO ST Fiber Optic Cable Patch CordNegotiableMOQ: 1
Related Products
Product Description
Support Ordering Parameters
1) Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2) Ferrule End-face: PC, UPC,APC
3) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4) Cable Quantity: Simplex, Duplex, 6cores ,12corns, 16cores, 24cores, 36cores, 48cores...
5) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
6) Cable Length: 1, 2, 3 meter or customized
7) Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum ,Armored
8) Patch cord/pigtail
Features
Low insertion loss and back reflection loss
Good echangeabilityGood Durability
High temperature stability
CE,ROHS,FCC
Superior quality standard PC/UPC/APC polishing
Applications
Cabling system, ODF
Optical fiber communication systems
Optical fiber data transmission
Telecom net
Optical fiber sensor
Optical fiber test equipment
Optical fiber communication system
FTTH, LAN,PON & Optical CATV
1) Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2) Ferrule End-face: PC, UPC,APC
3) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4) Cable Quantity: Simplex, Duplex, 6cores ,12corns, 16cores, 24cores, 36cores, 48cores...
5) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
6) Cable Length: 1, 2, 3 meter or customized
7) Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum ,Armored
8) Patch cord/pigtail
Features
Low insertion loss and back reflection loss
Good echangeabilityGood Durability
High temperature stability
CE,ROHS,FCC
Superior quality standard PC/UPC/APC polishing
Applications
Cabling system, ODF
Optical fiber communication systems
Optical fiber data transmission
Telecom net
Optical fiber sensor
Optical fiber test equipment
Optical fiber communication system
FTTH, LAN,PON & Optical CATV
Item |
Unit |
LC/SC/FC/ST Fiber Patch Cord |
|||||||||
SM |
MM |
||||||||||
Fiber Diameter |
UM |
9/125 |
65.5/125 |
50/125 |
|||||||
Polishing |
PC |
UPC |
APC |
PC |
PC |
||||||
Insertion Loss |
dB |
≤0.2 |
≤0.15 |
≤0.2 |
≤0.1 |
≤0.1 |
|||||
Return Loss |
dB |
≥55 |
≥50 |
≥60 |
≥35dB |
≥35dB |
|||||
Insert-pull Test |
dB |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.15 |
≤0.15 |
|||||
Interchangeability |
dB |
≤0.1 |
≤0.1 |
≤0.15 |
≤0.1 |
≤0.1 |
|||||
Temperature Range |
℃ |
-40~+80 |
|||||||||
Durability(1/Matings) |
≥1000 |
||||||||||
Tensile Strength (N) |
≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9 |
||||||||||
Fiber |
9/125um, 50/125um,62.5/125um,ect |
||||||||||
Diameter |
0.9mm 2.0mm, 3.0mm etc |
||||||||||
Cores |
Simplex, duplex, 4cores, 6cores, 8cores, 12cores etc |
||||||||||
