Home > Products > Fiber Optic Patch Cord > Simplex Duplex G652D SC LC FC ST Connector Jumper SM UPC PC APC 3m LSZH Fiber Optic Patch Cord For CATV Network

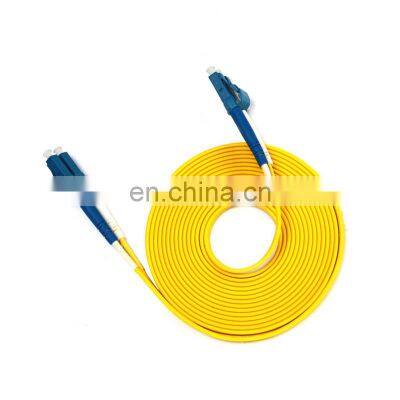

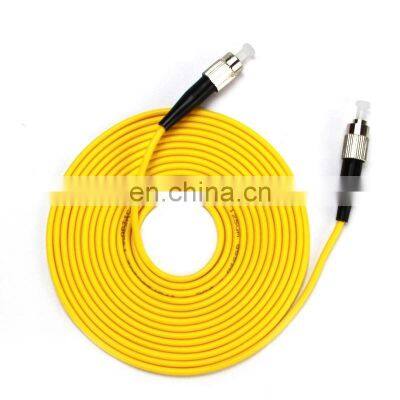

Simplex Duplex G652D SC LC FC ST Connector Jumper SM UPC PC APC 3m LSZH Fiber Optic Patch Cord For CATV Network

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Recommend Products

Product Description

Support Ordering Parameters

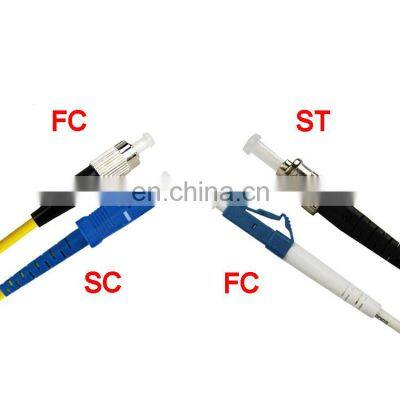

1) Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2) Ferrule End-face: PC, UPC,APC
3) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4) Cable Quantity: Simplex, Duplex, 6cores ,12corns, 16cores, 24cores, 36cores, 48cores...
5) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
6) Cable Length: 1, 2, 3 meter or customized
7) Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum ,Armored
8) Patch cord/pigtail

Features
Low insertion loss and back reflection loss
Good echangeability Good Durability
High temperature stability
CE,ROHS,FCC
Superior quality standard PC/UPC/APC polishing

Applications
Cabling system, ODF
Optical fiber communication systems
Optical fiber data transmission
Telecom net
Optical fiber sensor
Optical fiber test equipment
Optical fiber communication system
FTTH, LAN,PON & Optical CATV

Specification

Item	Unit	LC/SC/FC/ST Fiber Patch Cord
Item	Unit			SM					MM
Fiber Diameter	UM	9/125					65.5/125	50/125
Polishing		PC	UPC	APC	PC	PC
Insertion Loss	dB	≤0.2	≤0.15	≤0.2	≤0.1	≤0.1
Return Loss	dB	≥55	≥50	≥60	≥35dB	≥35dB
Insert-pull Test	dB	≤0.2	≤0.2	≤0.3	≤0.15	≤0.15
Interchangeability	dB	≤0.1	≤0.1	≤0.15	≤0.1	≤0.1
Temperature Range	℃	-40~+80
Durability(1/Matings)	≥1000
Tensile Strength (N)	≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9
Fiber	9/125um, 50/125um,62.5/125um,ect
Diameter	0.9mm 2.0mm, 3.0mm etc
Cores	Simplex, duplex, 4cores, 6cores, 8cores, 12cores etc

Company Introduction

Shanghai Tanghu Optical Fiber Equipment Co., Ltd. is a high-tech enterprise specializing in the production of optical
communication products, with nearly 20 years of industry experience.At present, the company has passed the ISO9001 certification,has two production bases in Shenzhen and Xuzhou, and has a large modern warehouse in Shanghai.The company covers an area of 20000 m2, with more than 500 employees and annual sales of more than 300 million RMB.

Company has roboticized production and testing equipment, since its inception, the company has been committed to product innovation and R&D, the products include cable, patch cord, optical transceiver, POE switch, OPM, VFL, optical fiber fusion splicer, optical divider, fiber boxes, etc., which are widely used in the plot construction of campus network, security, monitoring, radio and television transmission, FTTH, etc.

The products are exported in large quantities to more than 60 countries and regions including the USA, Australia, India, Russia, Brazil and South Africa and so on, providing innovative technologies and product solutions for global telecom operators and enterprise network customers, and enabling users around the world to enjoy all-round communication such as voice, data, multimedia and wireless broadband.

Exhibition

Product Shipping

Express way

Shippment

-By sea

-By plane

-By International couriers, TNT, DHL, FEDEX, UPS, etc.

Standard Export carton

1.Inner Package: Neutral brown cartons.

2.Outer Package: Internationally standard package cartons with 5 layers and thinplastic film surround the cartons.

Customer feedback

FAQ

Q: What about delivery time?

A: We have big warehouses in Shanghai, also in Shenzhen factory, providing instant delivery service. Most products can be
delivered within 3~7 days.

Q: What is your warranty period?

A: We provide one year of unconditional warranty on our products for the manufacturing defects.

Q: Why should we buy from you?

A: We are committed to provide best quality products at minimum delivery time and competitive price. We believe this is what customer wants. We are satisfied until customers are.

Q: Can you provide OEM, ODM service?

A: Yes. We have factories in Shenzhen and Xuzhou, we can make products according to your requirements.

Q: Do you provide free samples?

A: Yes, but the buyer should bear the shipping costs.
