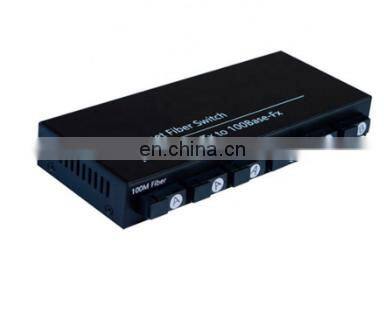

Media Converter 2x 10/100Mbase-T RJ45 UTP Ports to 6 Fiber Ports Fiber Switch Media Converter
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2014
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Fiber Media Converter 10/100M 3 Fiber Port +2 RJ45 Port 3PO and 2 LAN PortNegotiableMOQ: 1 -
Gigabit SFP Media Converter With 1000M 8 SFP Fiber Port 1 RJ45 Ethernet PortNegotiableMOQ: 1
-
Power Supply for 14 16 Port Media Converter Chassis Rack 5 V 12 A High QualityNegotiableMOQ: 1
-
FTTH ODB FDB 8 Core Fiber Optic Distribution Terminal Box NapNegotiableMOQ: 1
-
Fiber Media Converter 10/100M 1Fiber Port +2 RJ45 Port 1PO and 2 LAN PortNegotiableMOQ: 1
Related Products
Product Description
Standards |
IEEE802.3 10Base-T IEEE802.3u 100Base-TX/FX IEEE802.3z 1000Base-SX/LX |
IEEE802.3x Flow control IEEE802.1p QoS IEEE802.1d Spanning Tree IEEE802.1az |
|
Certifications |
CCC, CE, FCC, RoHS |
||
Ethernet Port |
Connector: RJ45 Data Rate: 10/100M Distance: 100m UTP Type: UTP-5E or higher level |
||
Fiber Port |
Connector: SC/FC/ST slot Data Rate: 155Mbps Optical Wavelength: 850nm/1310nm/1490nm/1550nm Distance: 2km~120km |
||
Performance |
Processing Type: Store and Forward MAC Table Size: 2K Buffer Space: 2Mbit Back bandwidth: 1.6G Time Delay: <150μs |
||
Power |
Power type: external power supply Input Voltage: AC100V~240V 50/60Hz Connector: DC Socket Working Voltage: 5V Power Consumption: 4W~10W |
||
Environment |
Storage Temperature: -40~70℃ Operating Temperature: -10~55℃ Relative Humidity: 5-90% ( no condensation) |
||
Warranty |
3 years |
||
Physical Characteristics |
Dimension: 180mm*90mm*26mm Weight: 0.7kg Color: Metal, Black |
||

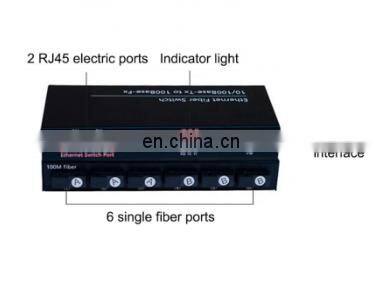

10~120km 2x 10/100Mbase-T RJ45 UTP ports to 6 fiber ports fiber switch media converter
1.High quality metal is more durable. Novel appearance design, simple and beautiful, the shell of the whole machine is made of
high quality metal and has a long service life.
2. The optical signal transmission is stable and durable. The photoelectric integrated module provides good optical and electrical
characteristics. It can transmit farther, ignore all interference, and reduce power consumption and cost.
3. Quality chip, high speed and stability, new quality chip with efficient distribution and decoding processing capacity.
high quality metal and has a long service life.
2. The optical signal transmission is stable and durable. The photoelectric integrated module provides good optical and electrical
characteristics. It can transmit farther, ignore all interference, and reduce power consumption and cost.
3. Quality chip, high speed and stability, new quality chip with efficient distribution and decoding processing capacity.
Company Introduction
Shanghai Tanghu Optical Fiber Equipment Co., Ltd. is a high-tech enterprise specializing in the production of optical
communication products, with nearly 20 years of industry experience.At present, the company has passed the ISO9001 certification,has two production bases in Shenzhen and Xuzhou, and has a large modern warehouse in Shanghai.The company covers an area of 20000 m2, with more than 500 employees and annual sales of more than 300 million RMB.
communication products, with nearly 20 years of industry experience.At present, the company has passed the ISO9001 certification,has two production bases in Shenzhen and Xuzhou, and has a large modern warehouse in Shanghai.The company covers an area of 20000 m2, with more than 500 employees and annual sales of more than 300 million RMB.
Company has roboticized production and testing equipment, since its inception, the company has been committed to product innovation and R&D, the products include cable, patch cord, optical transceiver, POE switch, OPM, VFL, optical fiber fusion splicer, optical divider, fiber boxes, etc., which are widely used in the plot construction of campus network, security, monitoring, radio and television transmission, FTTH, etc.
The products are exported in large quantities to more than 60 countries and regions including the USA, Australia, India, Russia, Brazil and South Africa and so on, providing innovative technologies and product solutions for global telecom operators and enterprise network customers, and enabling users around the world to enjoy all-round communication such as voice, data, multimedia and wireless broadband.
Why Choose Us
Exhibition
FAQ
Q: What about delivery time?
A: We have big warehouses in Shanghai, also in Shenzhen factory, providing instant delivery service. Most products can be
delivered within 3~7 days.
Q: What is your warranty period?
delivered within 3~7 days.
Q: What is your warranty period?
A: We provide one year of unconditional warranty on our products for the manufacturing defects.
Q: Why should we buy from you?
Q: Why should we buy from you?
A: We are committed to provide best quality products at minimum delivery time and competitive price. We believe this is what customer wants. We are satisfied until customers are.
Q: Can you provide OEM, ODM service?
Q: Can you provide OEM, ODM service?
A: Yes. We have factories in Shenzhen and Xuzhou, we can make products according to your requirements.
Q: Do you provide free samples?
A: Yes, but the buyer should bear the shipping costs.
Q: What is your payment terms?
A: We accept Alibaba Trade Assurance, Western Union, Paypal, T/T, L/C, etc.
A: We accept Alibaba Trade Assurance, Western Union, Paypal, T/T, L/C, etc.
